Products > Industrial Touchscreen LCD > Chassis LCD Monitor  >  19 wide inch Chassis LCD Monitor

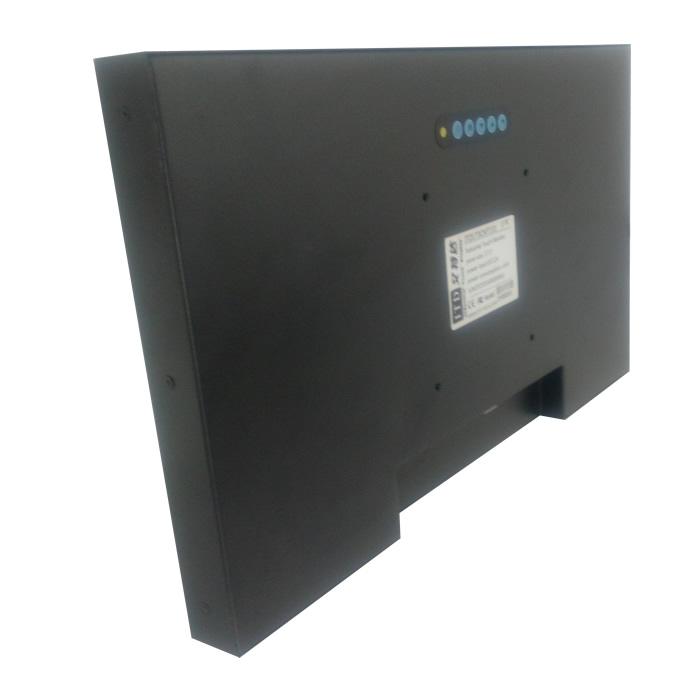

19 wide inch Chassis LCD Monitor
BENEFITES
- Exceptional quality and highly engineered industrial monitors
- Optional touchscreens like resistive, IR, SAW, PCAP
- All steel construction designed for harsh and industrial environments
- Easy-to-install cabinet and chassis VESA-mount display
- Accuracy in high-use applications
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial chassis LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments. Industrial chassis LCD monitors are designed for system integrators, digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports, industrial/factory automation, railroad terminals and industrial machinery builder applications. ITD full-range selection is provided in screen sizes from 5.7~85.



Chassis LCD
Monitor

Model Name

ITD19CMN101W

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch)

 19

Display Active Screen Size (mm)

408.2.32(H) x 255.2(V)

Aspect Ratio

16:10

Physical Resolution

1440900

Maximum Resolution Supported

19201200

Colors

16.7M

Brightness (cd/m2)

250nits

Contrast Ratio

1000:1

View Angels

85/85/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime


Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

1 VGA

1 DVI-I

1 HDMI

Audio

1 PC-Audio

Touch Connector

1 USB

Power Connector

1 DC2.0


Operation

Operating Temperature Range

-10~60C (-20~70C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

25W


Order Information

19Wide Chassis LCD Monitor with Resistive Touch

ITD19CMT101W

19Wide Chassis LCD Monitor with IR Touch

ITD19CMT201W

19Wide Chassis LCD Monitor with SAW Touch

ITD19CMT301W

19Wide Chassis LCD Monitor with PCAP Touch

ITD19CMT501W

19Wide Chassis LCD Monitor with Tempered Glass

ITD19CMG101W

Next49 inch Chassis LCD Monitor
Previous13.3 inch Chassis LCD Monitor
