Products > Sunlight Readable LCD > High Bright Sunlight Readable Panel PC Open Frame   >  13.3 inch Open Frame High Bright Sunlight Readable Panel PC
13.3 inch Open Frame High Bright Sunlight Readable Panel PC

BENEFITES
- Exceptional quality and highly engineered sunlight readable industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- All steel construction designed for harsh & industrial environments
- Easy-to-install side brackets or VESA(75/100mm) wall mounting
- Optional touchscreens like resistive, IR, SAW, PCAP
- High brightness 1000nits optical bonding optional
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial open frame sunlight readable panel PCs is a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD open frame panel PCs cater to those who seek to further customize the appearance of their application and come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI for indoor, semi-outdoor or outdoor applications.



Open Frame Panel PC

Model Name

ITD13PPCG1HBF**

IP Rating

N/A


PC Systems Options

ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core?i3/i5/i7
(4th~12th Generation optional)
Chipset: Rockchip Chipset: Intel?Bay Trail SoC Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM¡Á1(Intel J4125/J6412) 2¡ÁDDR3 1333/1600MHz SO-DIMM Slot;
DDR4 SODIMM ¡Á2 (8th~12th Gen.)
HDD/SSD:?Default to?16G, Max. 128G Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 (not available for J1900) Default to 64GB SSD
Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 Default to 64GB SSD

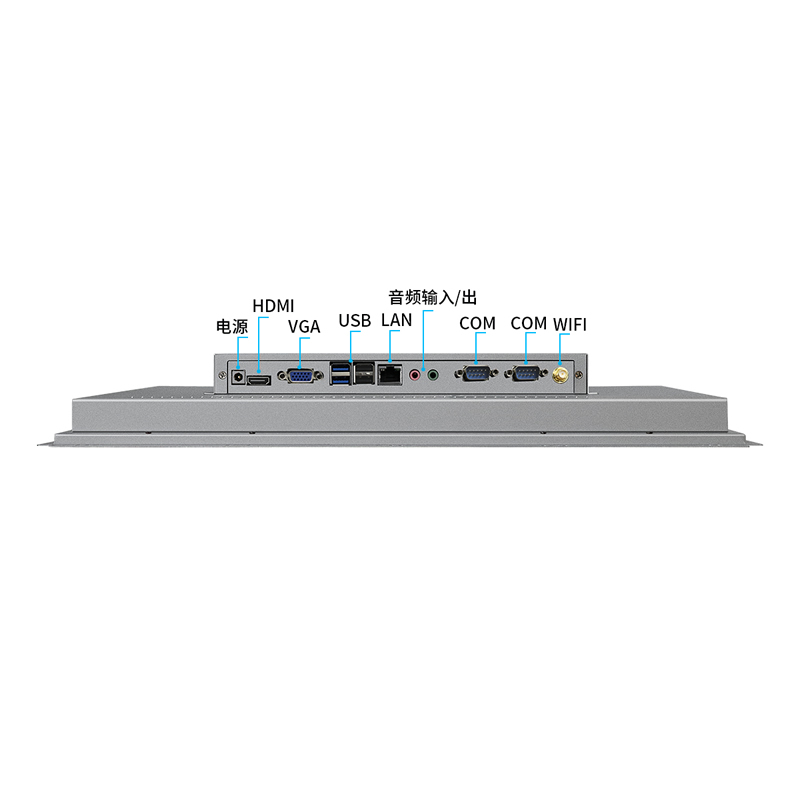

1¡ÁHDMI?Output; COM optional 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB, Max. 4¡ÁUSB, 1¡ÁUSB OTG (optional) 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6
1¡ÁTF Card Slot(Supports 8~128G) 2¡ÁCOM, Max. 6 2¡ÁCOM, Max. 6
1¡ÁLAN 1¡ÁLAN, Dual LAN optional 1¡ÁLAN, Dual LAN optional
1¡ÁAudio Out 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux
Windows 11(available for J4125/J6412)
Windows 7/10, Linux
Windows 11(available for 7th gen. or above)


LCD Panel

Screen Diagonal (Inch/cm)

13.3¡±

Display Active Screen Size (mm)

293.42 (H)X164.97(V)

Aspect Ratio

16:9

Physical Resolution

1920*1080

Maximum Resolution Supported

1920*1080

Colors

16.7M

Brightness (cd/m2)

1000nits

Contrast Ratio

800:1

View Angels

80/80/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Options

Resistive, PCAP, IR, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V (DC9-36 optional)

Power Consumption

25W


Order Information

13.3¡± 1000nits Open Frame Panel PC with Resistive Touch, Android RK3288

ITD13PPCT1HBFE2

13.3¡± 1000nits Open Frame Panel PC with PCAP Touch, Android RK3288

ITD13PPCT5HBFE2

13.3¡± 1000nits Open Frame Panel PC with Tempered Glass, Android RK3288

ITD13PPCG1HBFE2

13.3¡± 1000nits Open Frame Panel PC with Resistive Touch, J1900

ITD13PPCT1HBFJ2

13.3¡± 1000nits Open Frame Panel PC with PCAP Touch, J1900

ITD13PPCT5HBFJ2

13.3¡± 1000nits Open Frame Panel PC with Tempered Glass, J1900

ITD13PPCG1HBFJ2

13.3¡± 1000nits Open Frame Panel PC with Resistive Touch, i3

ITD13PPCT1HBFI3

13.3¡± 1000nits Open Frame Panel PC with PCAP Touch, i3

ITD13PPCT5HBFI3

13.3¡± 1000nits Open Frame Panel PC with Tempered Glass, i3

ITD13PPCG1HBFI3

13.3¡± 1000nits Open Frame Panel PC with Resistive Touch, i5

ITD13PPCT1HBFI5

13.3¡± 1000nits Open Frame Panel PC with PCAP Touch, i5

ITD13PPCT5HBFI5

13.3¡± 1000nits Open Frame Panel PC with Tempered Glass, i5

ITD13PPCG1HBFI5

13.3¡± 1000nits Open Frame Panel PC with Resistive Touch, i7

ITD13PPCT1HBFI7

13.3¡± 1000nits Open Frame Panel PC with PCAP Touch, i7

ITD13PPCT5HBFI7

13.3¡± 1000nits Open Frame Panel PC with Tempered Glass, i7

ITD13PPCG1HBFI7
