15.6 inch Open Frame High Bright Sunlight Readable Panel PC

Products > Sunlight Readable LCD > High Bright Sunlight Readable Panel PC Open Frame > 15.6 inch Open Frame High Bright Sunlight Readable Panel PC

BENEFITES
- Exceptional quality and highly engineered sunlight readable industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- All steel construction designed for harsh & industrial environments
- Easy-to-install side brackets or VESA(75/100mm) wall mounting
- Optional touchscreens like resistive, IR, SAW, PCAP
- High brightness 1000nits optical bonding optional
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial open frame sunlight readable panel PCs is a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD open frame panel PCs cater to those who seek to further customize the appearance of their application and come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI for indoor, semi-outdoor or outdoor applications.

Open Frame Panel PC

Model Name

ITD156PPCG1HBF**

IP Rating

N/A

PC Systems Options

ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional)	X86 Based	X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel Celeron J1900/J4125/J6412 2.0GHz	Intel Core?i3/i5/i7 (4th~12th Generation optional)
Chipset: Rockchip	Chipset: Intel?Bay Trail SoC	Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional	Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM×1(Intel J4125/J6412)	2×DDR3 1333/1600MHz SO-DIMM Slot; DDR4 SODIMM ×2 (8th~12th Gen.)
HDD/SSD:?Default to?16G, Max. 128G	Storage: 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD	Storage: 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD

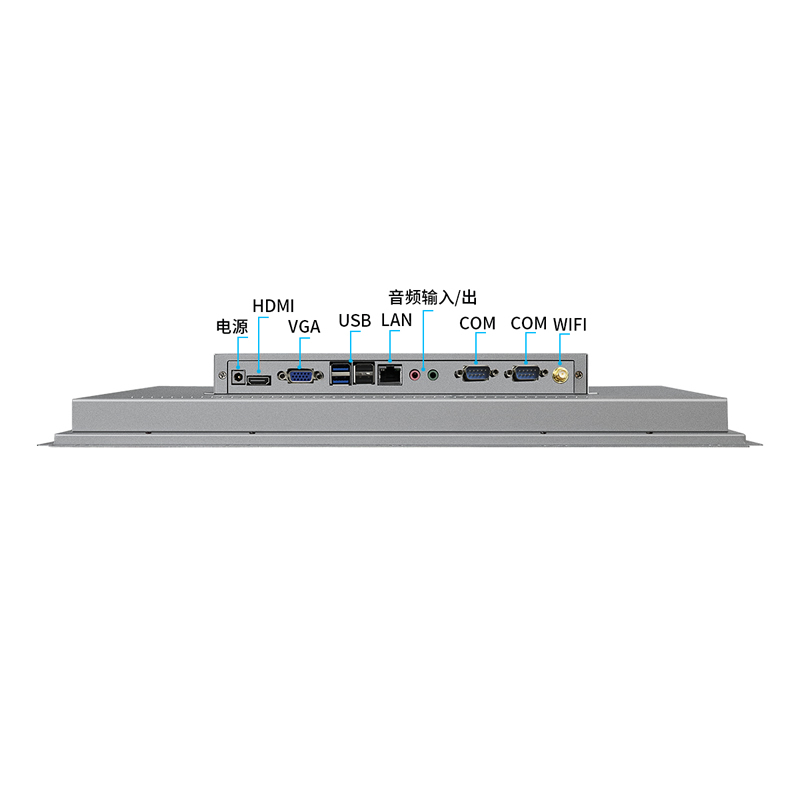

1×HDMI?Output; COM optional	1×VGA, 1×HDMI	1×VGA, 1×HDMI
2×USB, Max. 4×USB, 1×USB OTG (optional)	2×USB 2.0, 2×USB3.0, Max. 6	2×USB 2.0, 2×USB3.0, Max. 6
1×TF Card Slot(Supports 8~128G)	2×COM, Max. 6	2×COM, Max. 6
1×LAN	1×LAN, Dual LAN optional	1×LAN, Dual LAN optional
1×Audio Out	1×Realtek ALC662 , 1×Line-Out/MIC In	1×Realtek ALC662 , 1×Line-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions	Windows 7/10, Linux Windows 11(available for J4125/J6412)	Windows 7/10, Linux Windows 11(available for 7th gen. or above)

LCD Panel

Screen Diagonal (Inch/cm)

15.6”

Display Active Screen Size (mm)

246.0 (H) ×184.5(V)

Aspect Ratio

16:9

Physical Resolution

1920×1080

Maximum Resolution Supported

1920×1080

Colors

16.7M

Brightness (cd/m2)

1000nits

Contrast Ratio

700:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options

Resistive, PCAP, IR, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V (DC9-36 optional)

Power Consumption

30W

Order Information

15.6” 1000nits Open Frame Panel PC with Resistive Touch, Android RK3288

ITD156PPCT1HBFE2

15.6” 1000nits Open Frame Panel PC with PCAP Touch, Android RK3288

ITD156PPCT5HBFE2

15.6” 1000nits Open Frame Panel PC with Tempered Glass, Android RK3288

ITD156PPCG1HBFE2

15.6” 1000nits Open Frame Panel PC with Resistive Touch, J1900

ITD156PPCT1HBFJ2

15.6” 1000nits Open Frame Panel PC with PCAP Touch, J1900

ITD156PPCT5HBFJ2

15.6” 1000nits Open Frame Pan,el PC with Tempered Glass, J,,,1900

ITD156PPCG1HBFJ2

15.6” 1000nits Open Frame Panel PC with Resistive Touch, i3

ITD156PPCT1HBFI3

15.6” 1000nits Open Frame Panel PC with PCAP Touch, i3

ITD156PPCT5HBFI3

15.6” 1000nits Open Frame Panel PC with Tempered Glass, i3

ITD156PPCG1HBFI3

15.6” 1000nits Open Frame Panel PC with Resistive Touch, i5

ITD156PPCT1HBFI5

15.6” 1000nits Open Frame Panel PC with PCAP Touch, i5

ITD156PPCT5HBFI5

15.6” 1000nits Open Frame Panel PC with Tempered Glass, i5

ITD156PPCG1HBFI5

15.6” 1000nits Open Frame Panel PC with Resistive Touch, i7

ITD156PPCT1HBFI7

15.6” 1000nits Open Frame Panel PC with PCAP Touch, i7

ITD156PPCT5HBFI7

15.6” 1000nits Open Frame Panel PC with Tempered Glass, i7

ITD156PPCG1HBFI7
