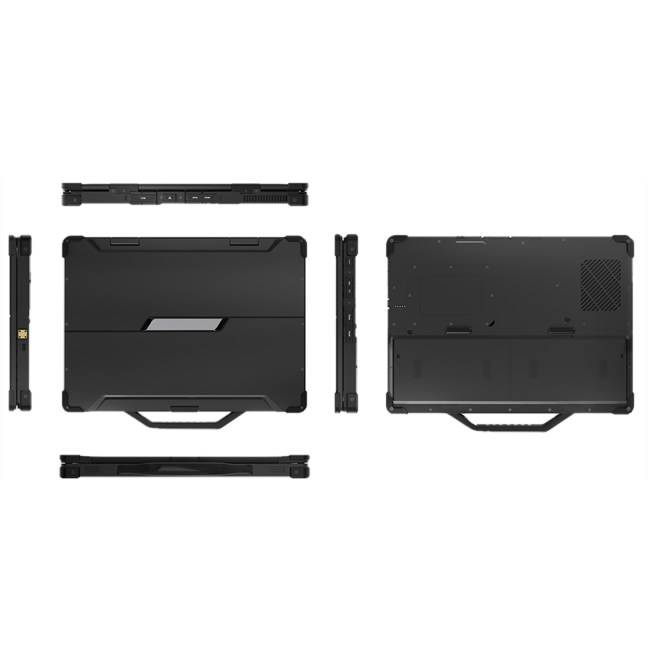

14.1 inch Rugged Laptop
FEATURES
- Support for Win 7, Win 10, Win 11 systems
- Intel  Core i5-8250U/i7-8550U or i5-1135G7/i7-1165G7, greatly improved performance
- The fuselage is equipped with dual battery design, and the endurance is increased to 6-8 hours
- IP65 high protection level, in accordance with MIL-STD-810G
- Support GPS, Optional Beidou, more accurate positioning
- Support 1920x1080 FHD, optional with Corning gorilla screen and sunshine visual screen
- Support rich expansion slot and fingerprint design, can be applied to various complex industry needs and expand demand
OVERVIEW
ITDs rugged laptops are engineered to withstand extreme conditions and meet the increased demands of field use, regardless of industry. Combined with the latest 11th Generation Intel? Core? processor and graphics capabilities, the ITD rugged laptops can handle data intensive tasks at speed. It has been built to withstand even the harshest of environments. It features IP65 rating, protecting against dust and water ingress, MIL-STD 810G compliance and resistance up to 1.22m drop. IITDs rugged laptops are engineered to combine military-grade durability, field-worker functionality, computing performance, and long battery life for non-stop use, making it suitable for use in locations where rain or dust may be a regular occurrence.


15.6 inch Rugged Laptop
Model Name ITD140PPCT5-X15U/X15T
IP Rating IP65

Basic Parameter
Dimensions 363.2287.442.1mm
Weight Device Unit 2850g
Device Color Black
LCD Panel 14 inch FHD 16:9, 19201080, 700nits
Touch Panel Optional 10 point G+G capacitive touch screen
Corning? Gorilla? Glass
Camera Front 2.0MP
I/O HDMI1, POGO 5pin1,
USB 2.0 Type-A1, USB 3.0 Type-A3,
SIM Card1, SD Card1,
DB9 RS2321, RJ452,
3.5mm standard earphone jack1,
DC 19V 3.42A1
Power AC100-240V, Output DC 19V/3.42A/65W

Performance Parameters
CPU Intel Core i5-8250U/ i7-8550U or Intel Core i5-1135G7/i7-1165G7
RAM 8GB/16GB
Storage 256GB/512GB/1TB
OS Windows 7/Windows 10/Windows 11

Battery
Capacity 7.4V/1750mAh
Type Built in Li polyment, battery loadable
Endurance 0.5hrs (Default 50% volume, default 200nit, Play 720P HD video )

Communication
WIFI WiFi 802.11 a/b/g/n/ac (2.4G+5.8G)
Bluetooth BT4.2
GNSS Built-in GPS, Optional GPS+Beidou
3G/4G (Optional) LTE FDD: B1/B3/B5/B7/B8/B20/B28A
LTE TDD: B38/B40/B41
WCDMA: B1/B2/B5/B8
GSM B2/B3/B5/B8

Data Collection
NFC                            Optional, 13.56MHz, ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092
Fingerprint SPI fingerprint (power on login)

Reliability
Operating Temperature Range -20 C ~ 60 C
Storage Temperature Range -30 C ~ 70 C
Humidity 95% non-Condensing
Rugged Feature IP65 certified, MIL-STD-810G Compliance
Drop Height 1.22m

Order Information
15.6Rugged Laptop with Intel Core i5-8250U/ i7-8550U ITD156PPCT5-X15U
15.6Rugged Laptop with Intel Core i5-1135G7/i7-1165G7 ITD156PPCT5-X15T
