15.6 inch Rugged Laptop
FEATURES
- 11th Gen? Intel? Core? i5/i7 processor
- New Intel Iris? Xe core graphics card
- Support Windows 10 OS, Optional Windows 11 OS
- 15.6-inch FHD, Optional touch screen
- Rich interfaces and extended function can meet various needs
- 6300mAh/7.4V+1750mAh/7.4V dual battery, large battery support hot-swappable
- High speed Wi-Fi 6, ?bluetooth 5.1 for higher transfer speeds
- Support M.2 interface 5G/4G selection
- Press fingerprint identification
- IP65 high protection level, 1.22m fall resistant
- In accordance with MIL-STD-810H
OVERVIEW
ITD¡¯s rugged laptops are engineered to withstand extreme conditions and meet the increased demands of field use, regardless of industry. Combined with the latest 11th Generation Intel? Core? processor and graphics capabilities, the ITD rugged laptops can handle data intensive tasks at speed. It has been built to withstand even the harshest of environments. It features IP65 rating, protecting against dust and water ingress, MIL-STD 810G compliance and resistance up to 1.22m drop. IITD¡¯s rugged laptops are engineered to combine military-grade durability, field-worker functionality, computing performance, and long battery life for non-stop use, making it suitable for use in locations where rain or dust may be a regular occurrence.


15.6 inch Rugged Laptop
Model Name ITD156PPCT5-X15U/X15T
IP Rating IP65

Basic Parameter
Dimensions 407¡Á305.8¡Á45.4mm
Weight Device Unit 3300g
Device Color Black
LCD Panel 15.6 inch FHD 16:9, 1920¡Á1080, 750nits
Touch Panel N/A
Camera Front 2.0MP

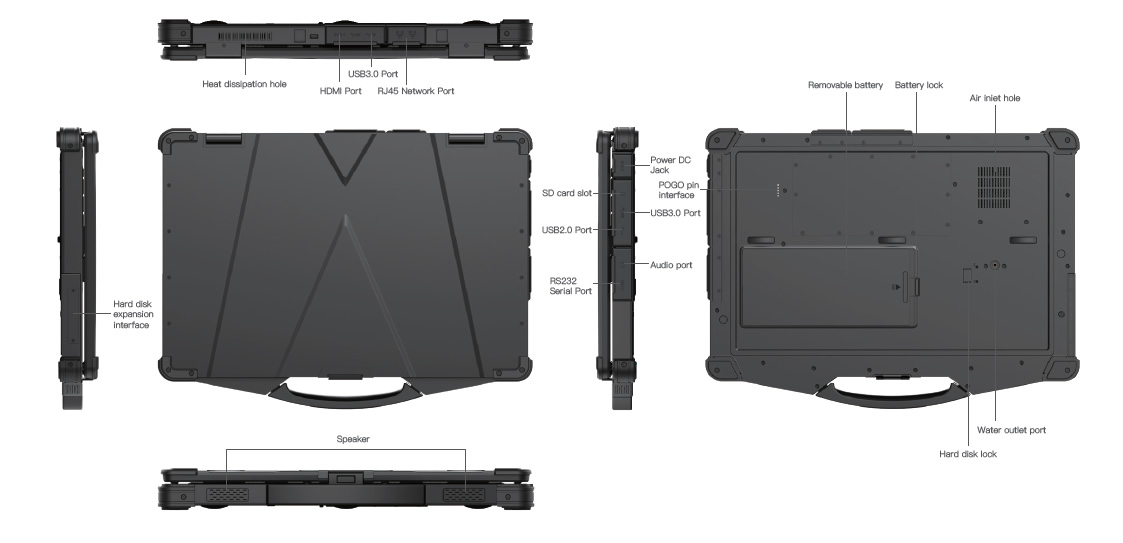

I/O HDMI¡Á1, POGO 5pin¡Á1,
USB 2.0 Type-A¡Á1, USB 3.0 Type-A¡Á3,
SIM Card¡Á1, SD Card¡Á1,
DB9 RS232¡Á1, RJ45¡Á2,
¦µ3.5mm standard earphone jack¡Á1,
DC 19V 3.42A¡Á1
Power AC100-240V, Output DC 19V/3.42A/65W

Performance Parameters
CPU Intel Core i5-8250U/ i7-8550U or Intel Core i5-1135G7/i7-1165G7
RAM 8GB/16GB
Storage 256GB/512GB
OS Windows 7/Windows 10/Windows 11

Battery
Capacity 7.4V/1750mAh
Type Built in Li polyment, battery loadable
Endurance 0.5hrs (Default 50% volume, default 200nit, Play 720P HD video )

Communication
WIFI WiFi 802.11 a/b/g/n/ac (2.4G+5.8G)
Bluetooth BT4.2
GNSS Built-in GPS, Optional GPS+Beidou
3G/4G (Optional) LTE FDD: B1/B3/B5/B7/B8/B20/B28A
LTE TDD: B38/B40/B41
WCDMA: B1/B2/B5/B8
GSM B2/B3/B5/B8

Data Collection
NFC                            Optional, 13.56MHz, ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092
Fingerprint SPI fingerprint (power on login)

Reliability
Operating Temperature Range -20 ¡ãC ~ 60 ¡ãC
Storage Temperature Range -30 ¡ãC ~ 70 ¡ãC
Humidity 95% non-Condensing
Rugged Feature                          IP65 certified, MIL-STD-810G Compliance
Drop Height 1.22m

Order Information
15.6¡±Rugged Laptop with Intel Core i5-8250U/ i7-8550U ITD156PPCT5-X15U
15.6¡±Rugged Laptop with Intel Core i5-1135G7/i7-1165G7 ITD156PPCT5-X15T
