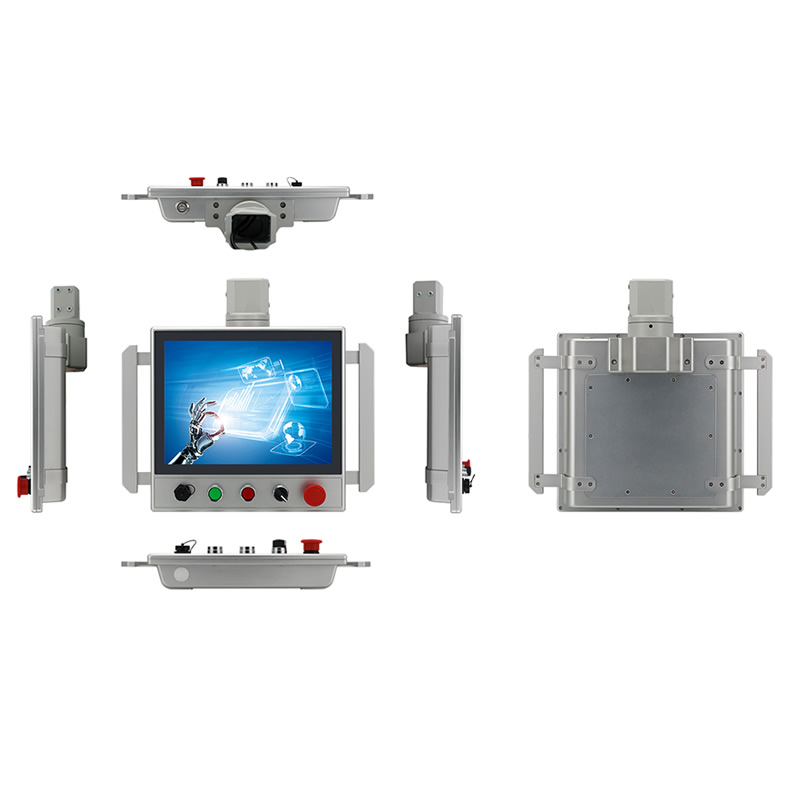

15 inch Arm mounted HMI Operator Panel

Products > Custom Touchscreen Display Solutions > Buttons Integrated Operation HMI Panel PC > 15 inch Arm mounted HMI Operator Panel

BENEFITES
- Combination of touchscreens and physical buttons provides a more intuitive and user-friendly interface.
- Dedicated buttons allow quick access to frequently used functions, reducing the time required to perform specific tasks.
- Enhances operational efficiency by combining the speed and versatility of touch inputs with the precision of physical buttons.
- Incorporates safety features such as emergency stop buttons or other critical controls to ensure a prompt and reliable response in urgent situations.
- Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
- Provides highly accurate, stable, and fast touch response with a quick 5ms reaction time for smooth operation.
- The front panel's operation keys and switch indicators can be customized with logos, text, and colors to meet your specific needs.
- Compatible with multiple arm support materials, featuring a coupling connector for secure and flexible installation.
- Built with durable operation keys and switch indicators for reliable performance in industrial environments.
- Includes optional USB ports, main switch, Wi-Fi module, and other customizable functions for tailored functionality based on your needs.
- Ruggedized levels of NEMA 4, IP65 rated for front panel
- Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

OVERVIEW
ITD 15” Arm-Mounted HMI Operator Panel PC is engineered for industrial excellence, combining advanced touch technology with rugged reliability. Powered by Intel Celeron J1900/J6412, or optional i3/i5/i7 processors, this flexible, customizable solution is built to withstand the toughest environments, delivering seamless performance for SCADA and HMI applications. Featuring a true flat, easy-to-clean front surface, lightning-fast 5ms touch response, and a durable IP65-rated front panel, the 15” HMI Panel PC is designed to optimize your workflow and enhance operational efficiency. Its customizable operation keys, switches, and connectivity options ensure a tailored solution that fits your unique needs. Ready to face the challenges of industrial automation, ITD’s HMI Operator Panel is the ideal choice for those demanding more from their systems.

Arm-mounted HMI Operator Panel
Model Name	ITD15PPCT5O**
IP Rating	IP65 Front Panel
PC Systems Options
X86 Based	X86 Based
CPU: Intel? Celeron J1900/J4125/J6412	CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th /12th/13th Gen. optional)
Chipset: Intel? SOC	Chipset: Intel? SOC
Memory: 4GB(Max. 16GB)	Memory: 8GB(Max. 64GB)
HDD/SSD: 1×MSATA, 1×SATA 1×M.2(available for J4125/J6412)	HDD/SSD: 1×MSATA, 1×SATA 1×M.2
1×VGA, 1×HDMI	1×VGA, 1×HDMI
2×USB 2.0, 2×USB3.0	2×USB 2.0, 2×USB3.0
2×COM(RS232/422/485)	2×COM(RS232/422/485)
1×LAN	1×LAN
1×Audio Out, 1×MIC In	1×Audio Out, 1×MIC In
Expansion: USB, COM, Mini-PCIe	Expansion: USB, COM, Mini-PCIe
Windows 7/10/11/Embedded/IoT, Linux Supported	Windows 7/10/11/Embedded/IoT, Linux Supported
Standard Buttons on Front
Power Switch	×1”
USB	×1
Emergency Stop Rotary Switch	×1
Emergency Stop Reset Switch	×2
Emergency Stop Self-Locking Switch	×1
LCD Panel
Screen Diagonal (Inch)	15”
Display Active Screen Size (cm)	304.128(H) ×228.096(V)mm
Aspect Ratio	4:3
Physical Resolution	1024×768
Maximum Resolution Supported	8ms
Colors	262K/16.2M
Brightness (cd/m2)	350nits (1000nits, 1500nits optional)
Contrast Ratio	700:1
View Angels	80/80/80/80
Backlight/Backlight Lifetime	LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options	PCAP
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range	-10~60°C
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC 12V
Power Consumption	25.5W
Order Information
15” Integrated Buttons Panel PC with PCAP Touch J1900	ITD15PPCT5OJ1
15” Integrated Buttons Panel PC with PCAP Touch J4125	ITD15PPCT5OJ4
15” Integrated Buttons Panel PC with PCAP Touch J6412	ITD15PPCT5OJ6
15” Integrated Buttons Panel PC with PCAP Touch i3	ITD15PPCT5OI3
15” Integrated Buttons Panel PC with PCAP Touch i5	ITD15PPCT5OI5
15” Integrated Buttons Panel PC with PCAP Touch i7	ITD15PPCT5OI7
