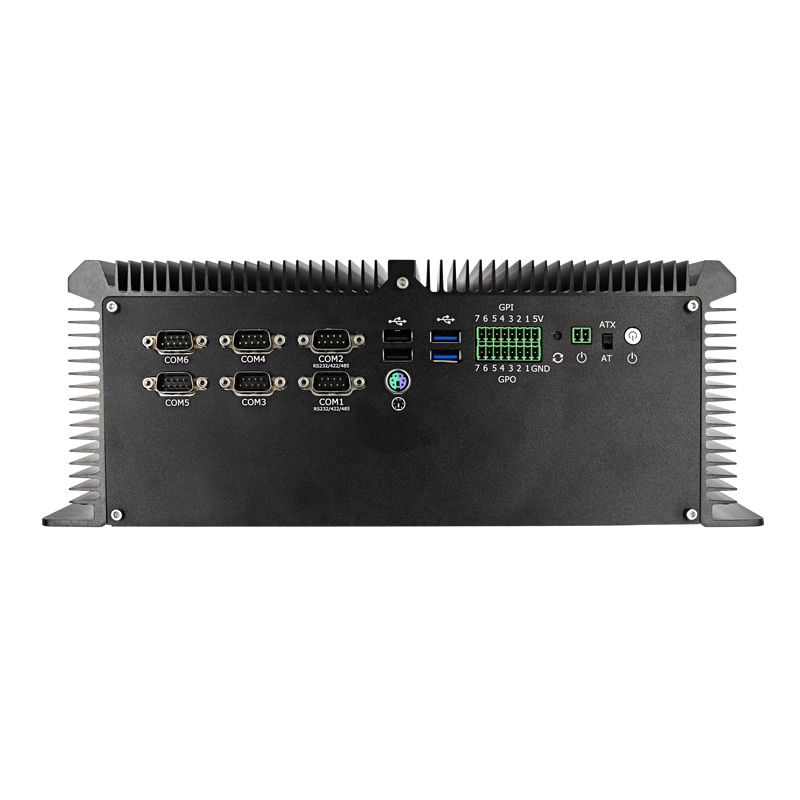

AI Edge Computing Box with PCI Slots | |||
| Model Name | ITD-MNPC-7400HQ/ ITD-MNPC-7920HQ | ||
| IP Rating | IP40 | ||
PC Systems | |||
| CPU | Onboard Intel 7th Gen. i5/i7-HQ CPU | ||
| Chipset | Intel SoC | ||
| Graphic | Intel HD Graphics | ||
| Memory | DDR4 SODIMM x2, up to 32GB | ||
| Storage Disk Driver | 1 x mSATA 1 x M.2 NVME 2280 1 x HDD/SSD | ||
| Driver Support | Windows7/Windows10, WES 7/10, Linux | ||
I/O | |||
| Serial Ports | 6 x DB9 COM(2x RS485/RS442) | ||
| USB Ports | 6 ¡Á USB3.0, 2 ¡Á USB2.0 | ||
| HDMI Port | 1 ¡Á HDMI Output | ||
| VGA Port | 1 ¡Á VGA Output | ||
| DP Port | 1 ¡Á Display Port | ||
| PS2 | 1 ¡Á PS2 | ||
| GPIO | 14 ¡ÁGPIO(7 input,7 output) | ||
| Audio | 1 ¡Á MIC IN & LINE OUT | ||
| Ethernet | 4 ¡Á 2.5GbE RJ45 10/100/1000Mbps Support POE, 802.3AF(2¡Á*13W), 802.3AT(2¡Á30W), 802.3BT(4¡Á*30W) | ||
| Power Port | 1 ¡ÁDC 9 ~ 36V 4-pin aviation connector, 9-36 DC input | ||
| Wireless | 2 ¡Á Antenna Aperture (Support WIFI or 4G) | ||
| Power Switch | 1 ¡Á Power Button, 1 ¡Á Reset Button£¬1 ¡Á Clear CMOS Button | ||
| Expansion Slot | Mini-PCIe ¡Á 1 half size/full size with SIM, for 3G/4G, WiFi, Bluetooth 4 ¡Á PCI, 1 ¡Á PCIEx8, 2 ¡Á PCIEx4 | ||
Power | |||
| Power Indicator | Yes | ||
| Power Input | DC9~36 | ||
| Power Consumption | TBA | ||
Operation/Mechanical | |||
| Operating Temperature | -20~60¡æ | ||
| Storage Temperature | -30~70¡æ | ||
| Humidity Range | 10%~90% @30¡æ Non Condensing | ||
| Vibration | 5-17Hz/1.0mm amplitude, 17- 200Hz/1.0g acceleration | ||
| Shock | 10g acceleration, 11ms duration | ||
| Housing Material | Aluminum Die-Casting | ||
| Housing Dimension (L ¡Á W ¡Á H) | 310mm ¡Á 203mm ¡Á 125mm | ||
| Net Weight | 4.6kg | ||
| Mounting | Desktop, Wall-Mounting | ||
Order Information | |||
| Industrial Box PC with Intel 7400HQ | ITD-MNPC-7400HQ | ||
| Industrial Box PC with Intel 7920HQ | ITD-MNPC-7920HQ | ||
