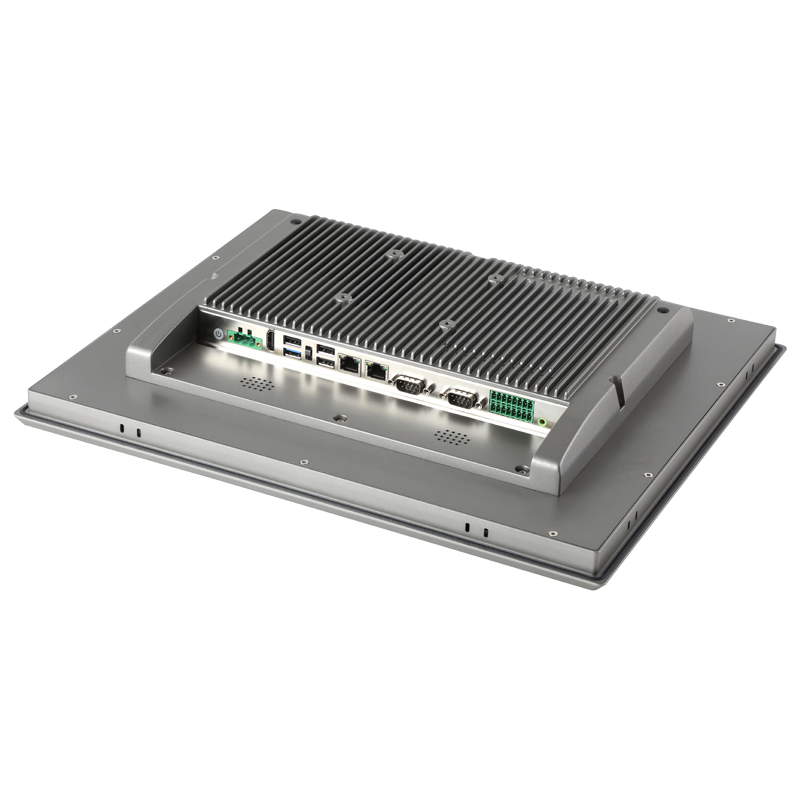

15 inch Industrial HMI Touch Panel PC
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Edge to edge design with true flat surface, easy to clean
- Excellent heat dissipation with aluminum heatsink, fan-less design
- All robust aluminum construction designed for harsh and industrial environments
- Easy-to-install embedded/panel mounting with clamps
- Robust design with NEMA 4/ IP65 front panel
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial HMI touch panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all aluminum enclosures and highly-durable anti-vandal PCAP glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with projected capacitive touch panel (PCAP/PCT) makes true flat surface with easy to clean. The Industrial HMI panel PCs come with industrial LCD flat screen sizes, PCAP or resistive touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fan-less design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.




Industrial HMI Touch Panel PC

Model Name ITD15PPCT5B-xxxx
IP Rating IP65 Front Panel

PC Systems Options

ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core i3/i5/i7
(4th~12th Generation optional)
Chipset: Rockchip Chipset: Intel Bay Trail SoC Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM¡Á1(Intel J4125/J6412) 2¡ÁDDR3 1333/1600MHz SO-DIMM Slot;
DDR4 SODIMM ¡Á2 (8th~12th Gen.)
HDD/SSD: Default to 16G, Max. 128G Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 (not available for J1900) Default to 64GB SSD
Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 Default to 64GB SSD
1¡ÁHDMI Output; COM optional 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB, Max. 4¡ÁUSB, 1¡ÁUSB OTG (optional) 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6
1¡ÁTF Card Slot(Supports 8~128G) 2¡ÁCOM, Max. 6 2¡ÁCOM, Max. 6
1¡ÁLAN 1¡ÁLAN, Dual LAN optional 1¡ÁLAN, Dual LAN optional
1¡ÁAudio Out 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux
Windows 11(available for J4125/J6412)
Windows 7/10, Linux
Windows 11(available for 7th gen. or above)

LCD Panel

Screen Diagonal (Inch) 15¡±
Display Active Screen Size (cm) 304.128(H)¡Á228.096(V)
Aspect Ratio 4:3
Physical Resolution 1024¡Á768
Maximum Resolution Supported 1920¡Á1080
Colors  16.7M
Brightness (cd/m2) 250nits
Contrast Ratio 700:1
View Angels 80/80/60/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours¡¯ Lifetime

Touch Panel

Touch Options Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
Touch Drivers Windows 7/8/10, Linux, Android, Mac

Operation

Operating Temperature Range -20~60¡ãC
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input DC 9-36V with 3-pin terminal block
Power Consumption 40W

Order
 Information

15¡± Industrial HMI PCAP Touch Panel PC with J1900 ITD15PPCT5B-J1900
15¡± Industrial HMI Resistive Touch Panel PC with J1900 ITD15PPCT1B-J1900
15¡± Industrial HMI PCAP Touch Panel PC with i5-4200U ITD15PPCT5B-i5-4200U
15¡± Industrial HMI Resistive Touch Panel PC with i5-4200U ITD15PPCT1B- i5-4200U
15¡± Industrial HMI PCAP Touch Panel PC with i5-6360U ITD15PPCT5B-i5-6360U
15¡± Industrial HMI Resistive Touch Panel PC with i5-6360U ITD15PPCT1B-i5-6360U
15¡± Industrial HMI PCAP Touch Panel PC with i5-7200U ITD15PPCT5B-i5-7200U
15¡± Industrial HMI Resistive Touch Panel PC with i5-7200U ITD15PPCT1B-i5-7200U
15¡± Industrial HMI PCAP Touch Panel PC with i5-8250U ITD15PPCT5B-i5-8250U
15¡± Industrial HMI Resistive Touch Panel PC with i5-8250U ITD15PPCT1B-i5-8250U
15¡± Industrial HMI PCAP Touch Panel PC with i7-4500U ITD15PPCT5B-i7-4500U
15¡± Industrial HMI Resistive Touch Panel PC with i7-4500U ITD15PPCT1B-i7-4500U
15¡± Industrial HMI PCAP Touch Panel PC with i7-6500U ITD15PPCT5B-i7-6500U
15¡± Industrial HMI Resistive Touch Panel PC with i7-6500U ITD15PPCT1B-i7-6500U
15¡± Industrial HMI PCAP Touch Panel PC with i7-7500U ITD15PPCT5B-i7-7500U
15¡± Industrial HMI Resistive Touch Panel PC with i7-7500U ITD15PPCT1B-i7-7500U
15¡± Industrial HMI PCAP Touch Panel PC with i7-8550U ITD15PPCT5B-i7-8550U
15¡± Industrial HMI Resistive Touch Panel PC with i7-8550U ITD15PPCT1B-i7-8550U
