13.3 inch Industrial HMI Touch Panel PC
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Edge to edge design with true flat surface, easy to clean

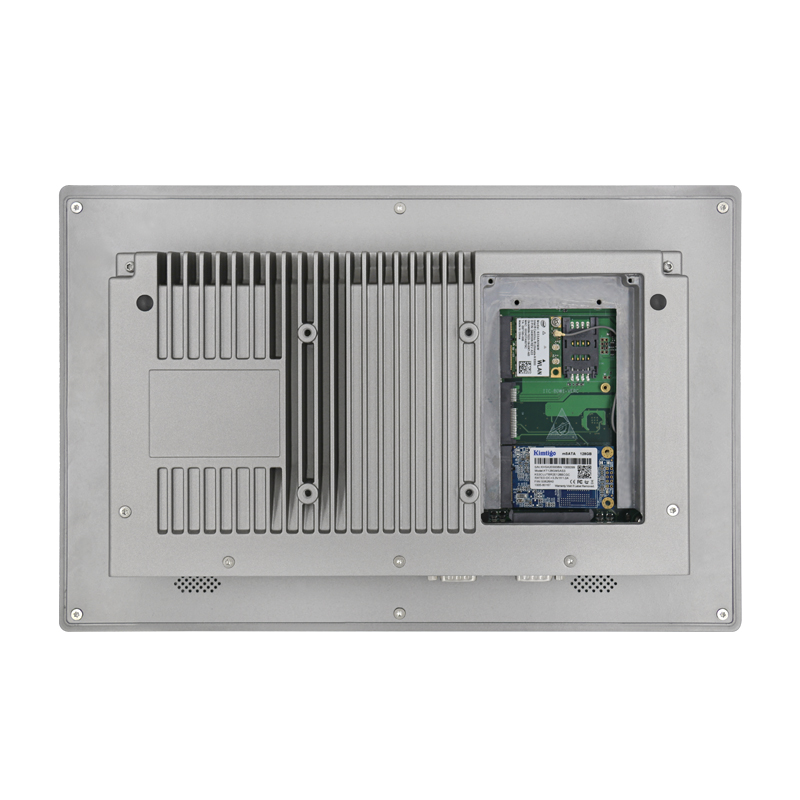

- Excellent heat dissipation with aluminum heatsink, fan-less design
- All robust aluminum construction designed for harsh and industrial environments
- Easy-to-install embedded/panel mounting with clamps
- Robust design with NEMA 4/ IP65 front panel
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial HMI touch panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all aluminum enclosures and highly-durable anti-vandal PCAP glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with projected capacitive touch panel (PCAP/PCT) makes true flat surface with easy to clean. The Industrial HMI panel PCs come with industrial LCD flat screen sizes, PCAP or resistive touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fan-less design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.




Industrial HMI Touch Panel PC

Model Name ITD13PPCT5B-xxxx
IP Rating IP65 Front Panel

PC Systems Options

X86 Windows Based
CPU: Intel? Celeron J1900 2.0GHz
Chipset: Intel Bay Trail SoC
Memory: DDR3L SODIMM SKU, Up to 8GB
Storage: 1mSATA, 1SATA, 1M.2 ( not available on J1900 CPU )
1  HDMI, 2GbE RJ45 Intel? i211
3  USB2.0 , 1USB3.0 , 1USB2.0 dongle
2  DB-9 COM1&COM2,RS-232/422/485
2  3-wire COM3&COM4 RS-232/485 with terminal block
2  3-wire COM5&COM6 RS-232 with terminal block
1  Audio Out, 1Line Out, 28 1W Audio AMPout
1  A T/ATX switch, 114 bit GPIO (Optional), 1Remote switch with terminal block
Expansion: Mini-PCIe1 full size with SIM Card for 3G/4G
Mini-PCIe1 half size for WIFI/BLT
X86 Windows Based
CPU: Intel? 4th 6th/7/8th Gen.Core i3/i5/i7 CPU
Chipset: Intel SoC
Memory: DDR3L SODIMM SKU, Up to 8GB
Storage: 1mSATA, 1SATA, 1M.2 ( not available on J1900 CPU )
1  HDMI, 2GbE RJ45 Intel? i211
3  USB2.0 , 1USB3.0 , 1USB2.0 dongle
2  DB-9 COM1&COM2,RS-232/422/485
2  3-wire COM3&COM4 RS-232/485 with terminal block
2  3-wire COM5&COM6 RS-232 with terminal block
1  Audio Out, 1Line Out, 28 1W Audio AMPout
1  A T/ATX switch, 114 bit GPIO (Optional), 1Remote switch with terminal block
Expansion: Mini-PCIe1 full size with SIM Card for 3G/4G
Mini-PCIe1 half size for WIFI/BLT

LCD Panel

Screen Diagonal (Inch) 13.3
Display Active Screen Size (cm) 293.42 (H164.97(V)
Aspect Ratio 16:9
Physical Resolution 19201080
Maximum Resolution Supported 19201080
Colors  16.7M
Brightness (cd/m2) 300nits
Contrast Ratio 800:1
View Angels 80/80/80/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours Lifetime

Touch Panel

Touch Options Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
Touch Drivers Windows 7/8/10, Linux, Android, Mac

Operation

Operating Temperature Range -20~60C
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input DC 9-36V with 3-pin terminal block
Power Consumption 35W

Order
 Information

13.3 Industrial HMI PCAP Touch Panel PC with J1900 ITD13PPCT5B-J1900
13.3 Industrial HMI Resistive Touch Panel PC with J1900 ITD13PPCT1B-J1900
13.3 Industrial HMI PCAP Touch Panel PC with i5-4200U ITD13PPCT5B-i5-4200U
13.3 Industrial HMI Resistive Touch Panel PC with i5-4200U ITD13PPCT1B- i5-4200U
13.3 Industrial HMI PCAP Touch Panel PC with i5-6360U ITD13PPCT5B-i5-6360U
13.3 Industrial HMI Resistive Touch Panel PC with i5-6360U ITD13PPCT1B-i5-6360U
13.3 Industrial HMI PCAP Touch Panel PC with i5-7200U ITD13PPCT5B-i5-7200U
13.3 Industrial HMI Resistive Touch Panel PC with i5-7200U ITD13PPCT1B-i5-7200U
13.3 Industrial HMI PCAP Touch Panel PC with i5-8250U ITD13PPCT5B-i5-8250U
13.3 Industrial HMI Resistive Touch Panel PC with i5-8250U ITD13PPCT1B-i5-8250U
13.3 Industrial HMI PCAP Touch Panel PC with i7-4500U ITD13PPCT5B-i7-4500U
13.3 Industrial HMI Resistive Touch Panel PC with i7-4500U ITD13PPCT1B-i7-4500U
13.3 Industrial HMI PCAP Touch Panel PC with i7-6500U ITD13PPCT5B-i7-6500U
13.3 Industrial HMI Resistive Touch Panel PC with i7-6500U ITD13PPCT1B-i7-6500U
13.3 Industrial HMI PCAP Touch Panel PC with i7-7500U ITD13PPCT5B-i7-7500U
13.3 Industrial HMI Resistive Touch Panel PC with i7-7500U ITD13PPCT1B-i7-7500U
13.3 Industrial HMI PCAP Touch Panel PC with i7-8550U ITD13PPCT5B-i7-8550U
13.3 Industrial HMI Resistive Touch Panel PC with i7-8550U ITD13PPCT1B-i7-8550U
