Products > Industrial Touchscreen LCD > Open Frame LCD Monitor  >  15.6 inch Open Frame LCD Monitor

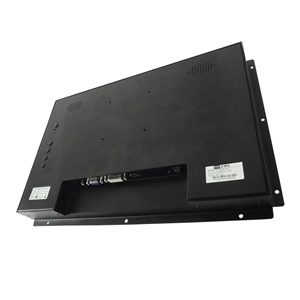

15.6 inch Open Frame LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install cabinet and open frame rear-mount display
-Multiple mounting options (75/100mm VESA mount and sidebrackets)
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial open frame displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application.  ITDopen frame LCD monitorsare packaged in a steel enclosureand durable glass front surface provide the durability neededfor demanding industrial environments. These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder applications.




Open Frame LCD
Monitor

Model Name

ITD156OFN1M1

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch/cm)

15.6

Display Active Screen Size (mm)

344.16(H) 193.59V)

Aspect Ratio

16:9

Physical Resolution

1366768(19201080 optional)

Maximum Resolution Supported

19201080

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

700:1

View Angels

80/80/80/70

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime


Touch Panel



Touch Options

Resistive,IR,SAW,PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output



Video Input

1 VGA

1 DVI-I

1 HDMI

Audio

1 PC-Audio

Touch Connector

1 USB

Power Connector

1 DC2.0


Operation

Operating Temperature Range

-10~60C (-20~70COptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

20W


Order Information



15.61366768 Open Frame LCD Monitor with Resistive Touch

ITD156OFT1M1

15.61366768 Open Frame LCD Monitor with SAW Touch

ITD156OFT3M1

15.61366768 Open Frame LCD Monitor with PCAP Touch

ITD156OFT5M1

15.619201080 Open Frame LCD Monitor with Resistive Touch

ITD156OFT1HRM1

15.619201080 Open Frame LCD Monitor with SAW Touch

ITD156OFT3HRM1

15.619201080 Open Frame LCD Monitor with PCAP Touch

ITD156OFT5HRM1
