Products > Industrial Touchscreen LCD > Open Frame LCD Monitor  >  15 inch Open Frame LCD Monitor

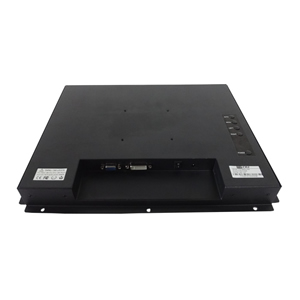

15 inch Open Frame LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install cabinet and open frame rear-mount display
-Multiple mounting options (75/100mm VESA mount and sidebrackets)
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial open frame displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application.  ITDopen frame LCD monitorsare packaged in a steel enclosureand durable glass front surface provide the durability neededfor demanding industrial environments. These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder applications.


Open Frame LCD Monitor

Model Name

ITD15OFN1M1

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch/cm)

15¡±

Display Active Screen Size (mm)

304.128(H) ¡Á228.096(V)

Aspect Ratio

4:3

Physical Resolution

1024¡Á768

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

250nits

Contrast Ratio

700:1

View Angels

80/80/60/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel



Touch Options

Resistive,IR,SAW,PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output



Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB

Power Connector

1 ¡Á DC2.0


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

20W


Order Information



15¡±Open Frame LCD Monitor with Resistive Touch

ITD15OFT1M1

15¡±Open Frame LCD Monitor with IR Touch

15¡±Open Frame LCD Monitor with ProjectedCapacitive Touch

ITD15OFT2M1

ITD15OFT5M1

Next£º15.6 inch Open Frame LCD Monitor
Previous£º12.1 inch Wide ScreenOpen Frame LCD Monitor
