Products > Custom Touchscreen Display Solutions > Panel PCs with RFID/NFC/QR/Fingerprint Integrated  >  15.6 inch Touch Panel Computer with Printer

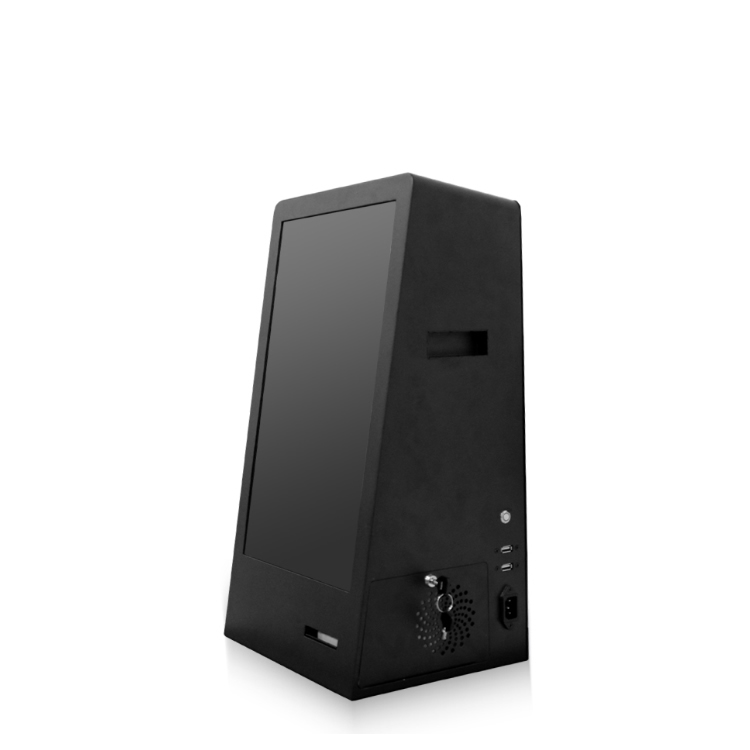

15.6 inch Touch Panel Computer with Printer
BENEFITES
-Exceptional quality and highly engineered industrial panel computer
-High Performance Processor, Graphics, Memory and Power
-Edge to edge design with true flat surface, easy to clean
-Equipped with projected capacitive touch screen
-All steel construction designed for harsh and industrial environments
-Easy-to-install embedded/panel mounting with clamps
-Robust design with aluminum NEMA 4/ IP65 front panel
-Flexible, reliable, and ruggedized for open platform HMI/SCADA
-Integrated with RFID reader, finger-reader, camera, microphone, etc. peripherals
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial touch panel computer PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. The custom industrial panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, x86 based or ARM based comprehensive embedded processors and chipsets, integrated RFID/NFC/MSR smart card readers, web camera (face recognition), QR reader, finger reader, thermal printer, barcode scanner, etc. peripherals, low power consumption, fanless design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, smart intercom, room reservation, room scheduling, and custom HMI applications.


15.6 inch Touch Panel Computer with Printer

Model Name

ITD156PPCT5X****

IP Rating

IP65 Front Panel


PC Systems Options



ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core i3/i5/i7
(4th~12th Generation optional)
Chipset: Rockchip Chipset: Intel Bay Trail SoC Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM¡Á1(Intel J4125/J6412) 2¡ÁDDR3 1333/1600MHz SO-DIMM Slot;
DDR4 SODIMM ¡Á2 (8th~12th Gen.)
HDD/SSD: Default to?16G, Max. 128G Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 (not available for J1900) Default to 64GB SSD
Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 Default to 64GB SSD
1¡ÁHDMI Output; COM optional 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB, Max. 4¡ÁUSB, 1¡ÁUSB OTG (optional) 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6
1¡ÁTF Card Slot(Supports 8~128G) 2¡ÁCOM, Max. 6 2¡ÁCOM, Max. 6
1¡ÁLAN 1¡ÁLAN, Dual LAN optional 1¡ÁLAN, Dual LAN optional
1¡ÁAudio Out 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux
Windows 11(available for J4125/J6412)
Windows 7/10, Linux
Windows 11(available for 7th gen. or above)


LCD Panel



Screen Diagonal (Inch)

15¡±

Display Active Screen Size (cm)

304.13(H)¡Á228.10(V)

Aspect Ratio

4:3

Physical Resolution

1024¡Á768

Maximum Resolution Supported

1920¡Á1080

Colors

16.2M

Brightness (cd/m2)

250

Contrast Ratio

700:1

View Angels

80/80/60/80

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'Lifetime


Touch Panel



Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

30W


Order Information



15.6¡± Custom PCAP Touch Android PC RK3288 with RFID/QR Reader/Printer

ITD156PPCT5XE1-PR

15.6¡± Custom PCAP Touch Android PC RK3399 with RFID/QR Reader/Printer

ITD156PPCT5XE1-PR

15.6¡± Custom PCAP Touch PC Intel J1900 with RFID/QR Reader/Printer

ITD156PPCT5XJ1-PR

15.6¡± Custom PCAP Touch PC Intel i3 with RFID/QR Reader/Printer

ITD156PPCT5XI3-PR

15.6¡± Custom PCAP Touch PC Intel i5 with RFID/QR Reader/Printer

ITD156PPCT5XI5-PR

15.6¡± Custom PCAP Touch PC Intel i7 with RFID/QR Reader/Printer

ITD156PPCT5XI7-PR
