Products > Custom Touchscreen Display Solutions > Panel PCs with RFID/NFC/QR/Fingerprint Integrated  >  17 inch Touch Panel Computer with Printer/Card Reader/QR Reader

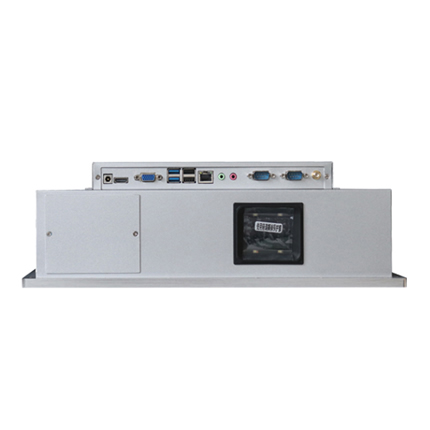

17 inch Touch Panel Computer with Printer/Card Reader/QR Reader
BENEFITES
-Exceptional quality and highly engineered industrial panel computer
-High Performance Processor, Graphics, Memory and Power
-Edge to edge design with true flat surface, easy to clean
-Equipped with projected capacitive touch screen
-All steel construction designed for harsh and industrial environments
-Easy-to-install embedded/panel mounting with clamps
-Robust design with aluminum NEMA 4/ IP65 front panel
-Flexible, reliable, and ruggedized for open platform HMI/SCADA
-Integrated with RFID reader, finger-reader, camera, microphone, etc. peripherals
-Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial touch panel computer PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. The custom industrial panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, x86 based or ARM based comprehensive embedded processors and chipsets, integrated RFID/NFC/MSR smart card readers, web camera (face recognition), QR reader, finger reader, thermal printer, barcode scanner, etc. peripherals, low power consumption, fanless design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, smart intercom, room reservation, room scheduling, and custom HMI applications.


17 inch Touch Panel Computer with Printer/Card Reader/QR Reader

Model Name

ITD17PPCT5X****

IP Rating

IP65 Front Panel


PC Systems Options



ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel HD Graphics, Support 1080p

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁUSB 2.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡Ámini-SD slot

1¡ÁCOM(RS232/422/485)

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁLAN

1¡ÁLAN

1¡ÁAudio Out

1¡ÁAudio Out, 1¡ÁMIC In

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe


LCD Panel



Screen Diagonal (Inch)

17¡±

Display Active Screen Size (cm)

337.92(H)¡Á270.34(V)

Aspect Ratio

4:3

Physical Resolution

1280¡Á1024

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

250

Contrast Ratio

1000:1

View Angels

85/85/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'Lifetime


Touch Panel



Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

42.5W


Order Information



17¡±Custom PCAP Touch Android PC RK3288 with Card&QR Reader&Printer

ITD17PPCT5XE1-RFID-FP

17¡±Custom PCAP Touch Android PC RK3399 with Card&QR Reader&Printer

ITD17PPCT5XE1-RFID-FP

17¡±Custom PCAP Touch PC Intel J1900 with Card&QR Reader&Printer

ITD17PPCT5XJ1-RFID-FP

17¡±Custom PCAP Touch PC Intel i3 with Card&QR Reader&Printer

ITD17PPCT5XI3-RFID-FP

17¡±Custom PCAP Touch PC Intel i5 with Card&QR Reader&Printer

ITD17PPCT5XI5-RFID-FP

17¡±Custom PCAP Touch PC Intel i7 with Card&QR Reader&Printer

ITD17PPCT5XI7-RFID-FP
