Products > Rugged IP66/IP67/IP69K Stainless Displays > Rugged Full IP65 IP66 Touch Screen Monitor  >  17.3 inch Full IP65/IP66/IP67 Waterproof Stainless Steel LCD Monitor

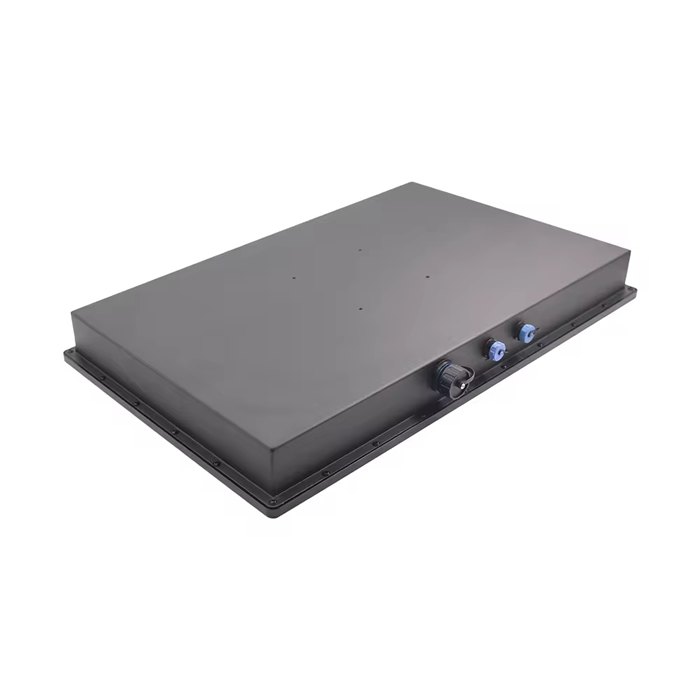

17.3 inch Full IP65/IP66/IP67 Waterproof Stainless Steel LCD Monitor
BENEFITES
- Exceptional quality and highly engineered industrial heavy duty monitors
- Optional touchscreens like resistive and PCAP
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP66 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures
- IP66 sealed, Full IP66 I/O connectors protect from any particles, water, and corrosive agents
- Accuracy in high-use applications
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD full IP65 LCD touchscreen displays are fully-integrated units that combine touch screen, waterproof and dustproof, fully sealed stainless steel chassis or aluminum alloy chassis and I/O with IP66/ NEMA 4 Ingress protection rating designed to be tough and rugged.  The enclosure features easy-to clean stainless steel/aluminum alloy construction that is corrosion resistant. They are built for demanding applications with high industrial requirement, such as food processing, beverage, pharmaceutical and tobacco industries for operator control and monitoring. ITD full-range selection is provided in screen sizes from 7¡±~21.5¡±.



Full IP65/IP66
Touchscreen Monitor

Model Name

ITD173CMG1IP*1

IP Rating

Full IP65/IP66(IP67 optional)


LCD Panel

Screen Diagonal (Inch/cm)

17.3¡±

Display Active Screen Size (mm)

382.08(H)¡Á214.92(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

262K

Brightness (cd/m2)

1000

Contrast Ratio

800:1

View Angels

85/85/85/85

Backlight/Backlight Lifetime

LED Backlight with 50000Hours¡¯Lifetime


Touch Panel

Touch Options

Resistive, PCAP, Infrared

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Default Waterproof Connectors

Video Input

1 ¡Á HDMI

Audio

Optional

Touch Connector

1 ¡Á USB(Optional)

Power Connector

1 ¡Á DC2.0


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

N/A

Power Input

DC 12V

Power Consumption

16W


Order Information

17.3¡±Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing

ITD173CMT1IPA1

17.3¡±Full IP65/IP66 LCD Monitor with IR Touch, Aluminum Housing

ITD173CMT2IPA1

17.3¡±Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing

ITD173CMT5IPA1

17.3¡±Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing

ITD173CMT1IPS1

17.3¡±Full IP65/IP66 LCD Monitor with IR Touch, Stainless Steel Housing

ITD173CMT2IPS1

17.3¡±Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing

ITD173CMT5IPS1

17.3¡±Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing

ITD173CMG1IPA1

17.3¡±Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing

ITD173CMG1IPS1

Next£º18.5 inch Full IP65/IP66/IP67 Waterproof Stainless Steel LCD Monitor
Previous£º15.6 inch Full IP67 Rugged Waterproof Stainless Steel LCD Monitor
