Full IP65/IP66 Touchscreen Monitor

Model Name

ITD156CMG1IP*1

IP Rating

Full IP65/IP66(IP67 optional)

LCD Panel

Screen Diagonal (Inch/cm)

15.6”

Display Active Screen Size (mm)

344.16(H)×193.59(V)

Aspect Ratio

16:9

Physical Resolution

1920×1080

Maximum Resolution Supported

1920×1080

Colors

262K

Brightness (cd/m2)

300

Contrast Ratio

800:1

View Angels

85/85/85/85

Backlight/Backlight Lifetime

LED Backlight with 50000Hours’Lifetime

Touch Panel

Touch Options

Resistive, PCAP,, Infrared

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

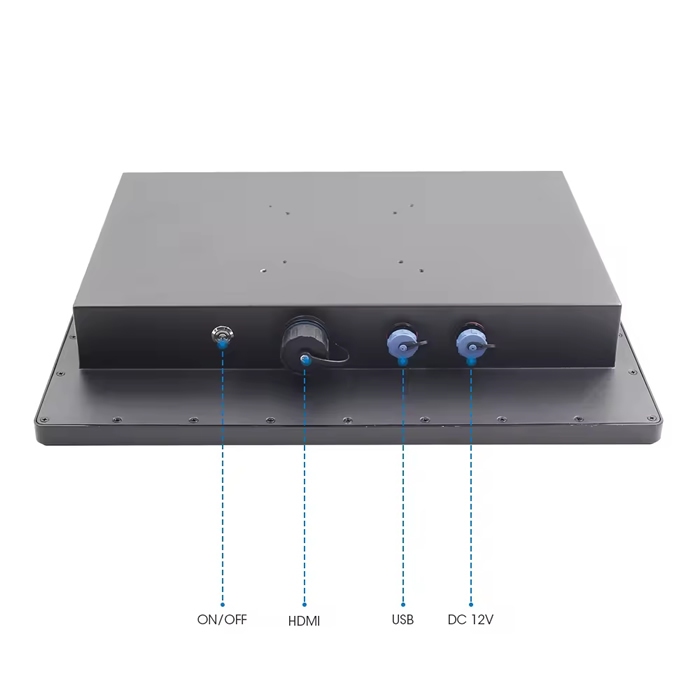

Default Waterproof Connectors

Video Input

1 × HDMI

Audio

Optional

Touch Connector

1 × USB(Optional)

Power Connector

1 × DC2.0

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

N/A

Power Input

DC 12V

Power Consumption

16W

Order Information

15.6”Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing

ITD156CMT1IPA1

15.6”Full IP65/IP66 LCD Monitor with IR Touch, Aluminum Housing

ITD156CMT2IPA1

15.6”Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing

ITD156CMT5IPA1

15.6”Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing

ITD156CMT1IPS1

15.6”Full IP65/IP66 LCD Monitor with IR Touch, Stainless Steel Housing

ITD156CMT2IPS1

15.6”Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing

ITD156CMT5IPS1

15.6”Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing

ITD156CMG1IPA1

15.6”Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing

ITD156CMG1IPS1
