Products > Rugged IP66/IP67/IP69K Stainless Displays > Rugged IP69K Stainless Steel Panel PC  >  17.3 inch IP69K Stainless Steel Touchscreen Panel PC

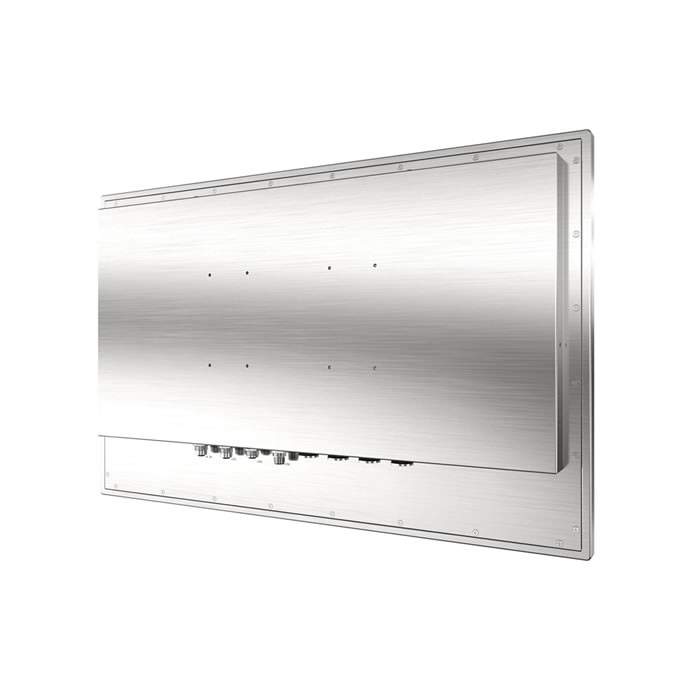

17.3 inch IP69K Stainless Steel Touchscreen Panel PC
BENEFITES
- Durability: The IP69K stainless steel panel PC is designed to withstand extreme temperatures, high-pressure water and dust exposure, and harsh chemicals. Its housing is made of high-quality stainless steel, which provides excellent resistance to corrosion and ensures long-term durability.
- Water and Dust Resistance: The panel PC is fully sealed, which makes it highly resistant to water and dust. It can withstand high-pressure water jets of up to 100 bar, which makes it ideal for use in environments with high-pressure water exposure.
- Touch Screen Interface: The touch screen interface allows users to interact with the system without the need for a keyboard or mouse. This makes it easier to use in environments where it may be difficult to use a traditional keyboard or mouse.
- High Processing Power: The IP69K stainless steel panel PC is equipped with a powerful processor, allowing it to handle demanding applications and process large amounts of data quickly.
- Flexible Mounting Options: The panel PC can be mounted in various ways, such as on a wall, stand, or swing arm. This feature allows for easy integration into different types of systems and environments.
- Easy to Clean: The fully sealed design and stainless steel construction make the panel PC easy to clean and maintain. It can be cleaned with high-pressure water jets, making it ideal for use in food processing and pharmaceutical applications.
- Long-term Cost Savings: The durability and reliability of the IP69K stainless steel panel PC means that it requires less maintenance and replacement over time. This can result in long-term cost savings for industrial facilities.
- Long lifespan: Stainless steel is known for its long lifespan, which means that equipment made from this material can last for many years, reducing the need for frequent replacements.
OVERVIEW
ITD¡¯s IP69K stainless steel panel PC is a rugged and reliable industrial computer that is designed to withstand harsh environments and provide high performance in demanding applications. The stainless steel construction of the panel PC makes it resistant to corrosion, ensuring long-term durability. The fully-sealed design prevents water and dust from entering the system, which protects the components inside from damage. The panel PC is equipped with a touch screen interface, which allows users to interact with the system without the need for a keyboard or mouse. It also has a powerful processor that can handle demanding applications and process large amounts of data quickly.


IP69K Touchscreen Panel PC

Model Name ITD173PPCG1IP**-69K
IP Rating IP69K

PC Systems Options

ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core?i3/i5/i7
(4th~12th Generation optional)
Chipset: Rockchip Chipset: Intel?Bay Trail SoC Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM¡Á1(Intel J4125/J6412) 2¡ÁDDR3 1333/1600MHz SO-DIMM Slot;
DDR4 SODIMM ¡Á2 (8th~12th Gen.)
HDD/SSD:?Default to?16G, Max. 128G Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 (not available for J1900) Default to 64GB SSD
Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 Default to 64GB SSD
1¡ÁHDMI?Output; COM optional 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB, Max. 4¡ÁUSB, 1¡ÁUSB OTG (optional) 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6
1¡ÁTF Card Slot(Supports 8~128G) 2¡ÁCOM, Max. 6 2¡ÁCOM, Max. 6
1¡ÁLAN 1¡ÁLAN, Dual LAN optional 1¡ÁLAN, Dual LAN optional
1¡ÁAudio Out 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux
Windows 11(available for J4125/J6412)
Windows 7/10, Linux
Windows 11(available for 7th gen. or above)


Default Waterproof Circular(M12) Connectors:  2
¡ÁUSB 2.0, 1¡ÁCOM, 1¡ÁLAN, 1¡ÁDC



LCD Panel

Screen Diagonal (Inch/cm) 17.3¡±
Display Active Screen Size (mm) 381.8886(H) ¡Á214.812(V)mm
Aspect Ratio 16:9
Physical Resolution 1920¡Á1080
Response Time 37/3ms
Colors 16.7M
Brightness (cd/m2) 400nits (1000nits optional)
Contrast Ratio 600:1
View Angels 80/80/60/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours¡¯ Lifetime

Touch Panel

Touch Options Resistive, PCAP, Infrared
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range -20~60¡ãC
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED by Power Switch
Power Input DC 12V(DC9-36V input, AC 100-240V input optional)
Power Consumption 18~38W

Order Information

17.3¡±Full IP69K Panel PC with Resistive Touch, Intel J1900 ITD173PPCT1IPSJ1-69K
17.3¡±Full IP69K Panel PC with PCAP Touch, Intel J1900 ITD173PPCT5IPSJ1-69K
17.3¡±Full IP69K Panel PC with Tempered Glass, Intel J1900 ITD173PPCG1IPSJ1-69K
17.3¡±Full IP69K Panel PC with Resistive Touch, Intel J4124 ITD173PPCT1IPSJ4-69K
17.3¡±Full IP69K Panel PC with PCAP Touch, Intel J4125 ITD173PPCT5IPSJ4-69K
17.3¡±Full IP69K Panel PC with Tempered Glass, Intel J4125 ITD173PPCG1IPSJ4-69K
17.3¡±Full IP69K Panel PC with Resistive Touch, Intel J6412 ITD173PPCT1IPSJ6-69K
17.3¡±Full IP69K Panel PC with PCAP Touch, Intel J6412 ITD173PPCT5IPSJ6-69K
17.3¡±Full IP69K Panel PC with Tempered Glass, Intel J6412 ITD173PPCG1IPSJ6-69K
17.3¡±Full IP69K Panel PC with Resistive Touch, Intel i3 ITD173PPCT1IPSI3-69K
17.3¡±Full IP69K Panel PC with PCAP Touch, Intel i3 ITD173PPCT5IPSI3-69K
17.3¡±Full IP69K Panel PC with Tempered Glass, Intel i3 ITD173PPCG1IPSI3-69K
17.3¡±Full IP69K Panel PC with Resistive Touch, Intel i5 ITD173PPCT1IPSI5-69K
17.3¡±Full IP69K Panel PC with PCAP Touch, Intel i5 ITD173PPCT5IPSI5-69K
17.3¡±Full IP69K Panel PC with Tempered Glass, Intel i5 ITD173PPCG1IPSI5-69K
Next£º18.5 inch IP69K Rugged Stainless Steel Touchscreen Panel PC
Previous£º17 inch IP69K Stainless Steel Touchscreen Panel PC
