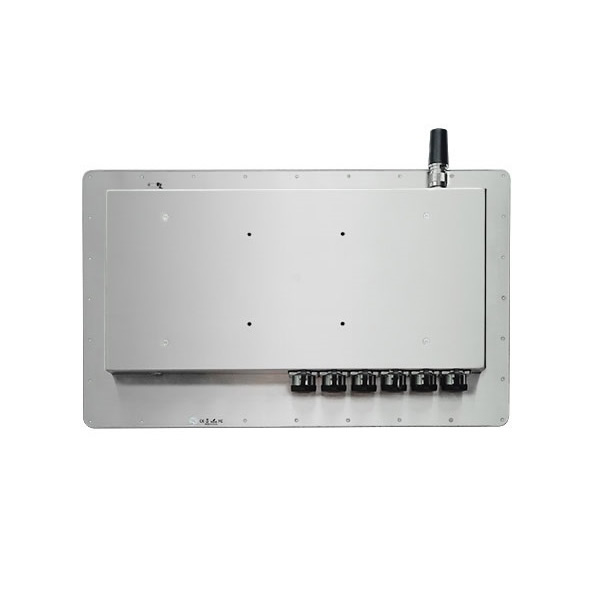

18.5 inch IP69K Rugged Stainless Steel Touchscreen Panel PC
BENEFITES
- Robust construction: Rugged panel PCs are typically built with tough materials, such as aluminum or stainless steel, that can withstand exposure to dust, water, and other harsh conditions.
- High brightness display: Rugged panel PCs often include high brightness displays that are visible even in bright sunlight, making them suitable for use in outdoor applications.
- Touchscreen interface: Many rugged panel PCs feature touchscreen interfaces, which can be more intuitive and easier to use in certain applications.
- Wide temperature range: Rugged panel PCs are designed to operate in a wide temperature range, typically from -20¡ãC to +60¡ãC, making them suitable for use in hot and cold environments.
- IP69K rating: Rugged panel PCs are typically rated IP69K, which means they are protected against water and dust ingress, and can withstand high-pressure, high-temperature washdowns.
- Vibration and shock resistance: Rugged panel PCs are typically designed to withstand high levels of vibration and shock, making them suitable for use in applications where equipment is subject to heavy use or impact.
- Fanless design: Rugged panel PCs may feature a fanless design, which reduces the risk of dust and debris getting into the system and extends the lifespan of the device.
- Mounting options: IP69K Stainless steel panel PCs may include a range of mounting options, such as VESA, panel mount, ARM mount, yoke mount to ensure flexible installation in a variety of environments
- Long lifespan: Stainless steel is known for its long lifespan, which means that equipment made from this material can last for many years, reducing the need for frequent replacements.
OVERVIEW
ITD¡¯s IP69K stainless steel panel PC is a rugged and reliable industrial computer that is designed to withstand harsh environments and provide high performance in demanding applications. The stainless steel construction of the panel PC makes it resistant to corrosion, ensuring long-term durability. The fully-sealed design prevents water and dust from entering the system, which protects the components inside from damage. The panel PC is equipped with a touch screen interface, which allows users to interact with the system without the need for a keyboard or mouse. It also has a powerful processor that can handle demanding applications and process large amounts of data quickly.


IP69K Touchscreen Panel PC

Model Name ITD18PPCG1IP**-69K
IP Rating IP69K

PC Systems Options

ARM Android Based RK3288(RK3566/RK3399 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel? Celeron J1900/J4125/J6412 CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th Gen. optional)
Chipset: Rockchip Chipset: Intel? SOC Chipset: Intel? SOC
Memory: 2G, max. 4G Memory: 4GB(Max. 16GB) Memory: 4GB(Max. 32GB)
HDD/SSD: 8G, max. 128G HDD/SSD: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2(available for J4125/J6412)
HDD/SSD: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2
1¡ÁHDMI (optional) 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB 2.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0
1¡Ámini-SD slot 2¡ÁCOM(RS232/422/485) 2¡ÁCOM(RS232/422/485)
1¡ÁLAN 1¡ÁLAN 1¡ÁLAN
1¡ÁAudio Out 1¡ÁAudio Out, 1¡ÁMIC In 1¡ÁAudio Out, 1¡ÁMIC In
Expansion: COM port Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe
Android, Linux Supported Windows 7/10/11/Embedded/IoT, Linux Supported Windows 7/10/11/Embedded/IoT, Linux Supported


Default Waterproof Circular(M12) Connectors:  2
¡ÁUSB 2.0, 1¡ÁCOM, 1¡ÁLAN, 1¡ÁDC


LCD Panel

Screen Diagonal (Inch/cm) 18.5¡±
Display Active Screen Size (mm) 408.96(H) ¡Á230.04(V)mm
Aspect Ratio 16:9
Physical Resolution 1920¡Á1080
Response Time 30ms
Colors 16.7M
Brightness (cd/m2) 350nits (1000nits optional)
Contrast Ratio 1200:1
View Angels 85/85/85/85
Backlight/Backlight Lifetime LED Backlight with 50000 Hours¡¯ Lifetime

Touch Panel

Touch Options Resistive, PCAP, Infrared
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range -20~60¡ãC
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED by Power Switch
Power Input DC 12V(DC9-36V input, AC 100-240V input optional)
Power Consumption 20~35W

Order Information

18.5¡±Full IP69K Panel PC with Resistive Touch, Intel J1900 ITD18PPCT1IPSJ1-69K
18.5¡±Full IP69K Panel PC with PCAP Touch, Intel J1900 ITD18PPCT5IPSJ1-69K
18.5¡±Full IP69K Panel PC with Tempered Glass, Intel J1900 ITD18PPCG1IPSJ1-69K
18.5¡±Full IP69K Panel PC with Resistive Touch, Intel J4124 ITD18PPCT1IPSJ4-69K
18.5¡±Full IP69K Panel PC with PCAP Touch, Intel J4125 ITD18PPCT5IPSJ4-69K
18.5¡±Full IP69K Panel PC with Tempered Glass, Intel J4125 ITD18PPCG1IPSJ4-69K
18.5¡±Full IP69K Panel PC with Resistive Touch, Intel J6412 ITD18PPCT1IPSJ6-69K
18.5¡±Full IP69K Panel PC with PCAP Touch, Intel J6412 ITD18PPCT5IPSJ6-69K
18.5¡±Full IP69K Panel PC with Tempered Glass, Intel J6412 ITD18PPCG1IPSJ6-69K
18.5¡±Full IP69K Panel PC with Resistive Touch, Intel i3 ITD18PPCT1IPSI3-69K
18.5¡±Full IP69K Panel PC with PCAP Touch, Intel i3 ITD18PPCT5IPSI3-69K
18.5¡±Full IP69K Panel PC with Tempered Glass, Intel i3 ITD18PPCG1IPSI3-69K
18.5¡±Full IP69K Panel PC with Resistive Touch, Intel i5 ITD18PPCT1IPSI5-69K
18.5¡±Full IP69K Panel PC with PCAP Touch, Intel i5 ITD18PPCT5IPSI5-69K
18.5¡±Full IP69K Panel PC with Tempered Glass, Intel i5 ITD18PPCG1IPSI5-69K
