Products > Rugged IP66/IP67/IP69K Stainless Displays > Rugged IP69K Stainless Steel Panel PC  >  19 inch IP69K Stainless Steel Touchscreen Panel PC

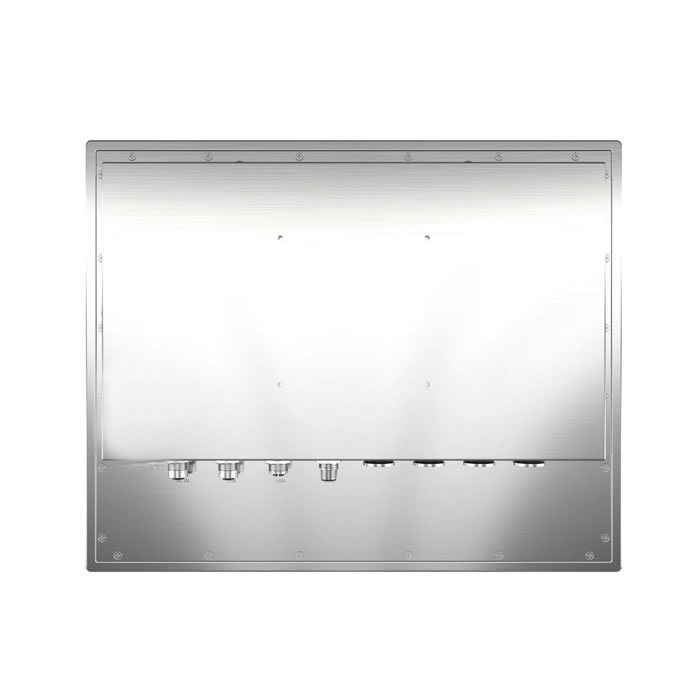

19 inch IP69K Stainless Steel Touchscreen Panel PC
BENEFITES
- High protection against water and dust: The IP69K rating is the highest level of protection against water and dust ingress, making it ideal for use in environments where equipment needs to withstand exposure to moisture, dust, and debris.
- Stainless steel construction: Stainless steel is highly resistant to corrosion, making it suitable for use in industries where the equipment is exposed to harsh chemicals or acids.
- High brightness display: IP69K stainless steel panel PCs often include high brightness displays that are visible even in bright sunlight, making them suitable for use in outdoor applications.
- Touchscreen interface: Many IP69K stainless steel panel PCs feature touchscreen interfaces, which can be more intuitive and easier to use in certain applications.
- Wide temperature range: IP69K stainless steel panel PCs are designed to operate in a wide temperature range, typically from -20¡ãC to +60¡ãC, making them suitable for use in hot and cold environments.
- Vibration and shock resistance: IP69K panel PCs are typically designed to withstand high levels of vibration and shock, making them suitable for use in applications where equipment is subject to heavy use or impact.
- Fanless design: Some IP69K panel PCs may feature a fanless design, which reduces the risk of dust and debris getting into the system and extends the lifespan of the device.
- Mounting options: IP69K stainless steel panel PCs may include a range of mounting options, such as VESA mount, panel mount, arm mount or yoke mount to ensure flexible installation in a variety of environments.
- Long lifespan: Stainless steel is known for its long lifespan, which means that equipment made from this material can last for many years, reducing the need for frequent replacements.
OVERVIEW
ITD¡¯s IP69K stainless steel panel PCs are designed to withstand exposure to moisture, dust, and debris in harsh and demanding environments. They typically include a range of features to ensure reliable and efficient performance. The "6" in the IP rating indicates that the device is protected against dust ingress, and the "9K" indicates that it can withstand high-pressure, high-temperature washdowns. This is the highest level of protection against water and dust, and indicates that the panel PC can withstand exposure to water jets with temperatures up to 80¡ãC and pressures up to 100 bar. The combination of high protection against water and dust, corrosion resistance, high brightness display, touchscreen interface, wide temperature range, vibration and shock resistance, fanless design, and mounting options make IP69K stainless steel panel PCs a reliable choice for a variety of industrial applications.


IP69K Touchscreen Panel PC

Model Name ITD19PPCG1IP**-69K
IP Rating IP69K

PC Systems Options

ARM Android Based RK3288(RK3566/RK3399 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel? Celeron J1900/J4125/J6412 CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th Gen. optional)
Chipset: Rockchip Chipset: Intel? SOC Chipset: Intel? SOC
Memory: 2G, max. 4G Memory: 4GB(Max. 16GB) Memory: 4GB(Max. 32GB)
HDD/SSD: 8G, max. 128G HDD/SSD: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2(available for J4125/J6412)
HDD/SSD: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2
1¡ÁHDMI (optional) 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB 2.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0
1¡Ámini-SD slot 2¡ÁCOM(RS232/422/485) 2¡ÁCOM(RS232/422/485)
1¡ÁLAN 1¡ÁLAN 1¡ÁLAN
1¡ÁAudio Out 1¡ÁAudio Out, 1¡ÁMIC In 1¡ÁAudio Out, 1¡ÁMIC In
Expansion: COM port Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe
Android, Linux Supported Windows 7/10/11/Embedded/IoT, Linux Supported Windows 7/10/11/Embedded/IoT, Linux Supported


Default Waterproof Circular(M12) Connectors:  2
¡ÁUSB 2.0, 1¡ÁCOM, 1¡ÁLAN, 1¡ÁDC


LCD Panel

Screen Diagonal (Inch/cm) 19¡±
Display Active Screen Size (mm) 374.784(H) ¡Á299.827(V)mm
Aspect Ratio 5 : 4
Physical Resolution 1280¡Á1024
Response Time 14ms
Colors 16.7M
Brightness (cd/m2) 400nits (1000nits, 1500nits optional)
Contrast Ratio 1000:1
View Angels 89/89/89/89
Backlight/Backlight Lifetime LED Backlight with 50000 Hours¡¯ Lifetime

Touch Panel

Touch Options Resistive, PCAP, Infrared
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range -20~60¡ãC
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED by Power Switch
Power Input DC 12V(DC9-36V, AC100-240V input optional)
Power Consumption 25~45W

Order Information

19¡±Full IP69K Panel PC with Resistive Touch, Intel J1900 ITD19PPCT1IPSJ1-69K
19¡±Full IP69K Panel PC with PCAP Touch, Intel J1900 ITD19PPCT5IPSJ1-69K
19¡±Full IP69K Panel PC with Tempered Glass, Intel J1900 ITD19PPCG1IPSJ1-69K
19¡±Full IP69K Panel PC with Resistive Touch, Intel J4124 ITD19PPCT1IPSJ4-69K
19¡±Full IP69K Panel PC with PCAP Touch, Intel J4125 ITD19PPCT5IPSJ4-69K
19¡±Full IP69K Panel PC with Tempered Glass, Intel J4125 ITD19PPCG1IPSJ4-69K
19¡±Full IP69K Panel PC with Resistive Touch, Intel J6412 ITD19PPCT1IPSJ6-69K
19¡±Full IP69K Panel PC with PCAP Touch, Intel J6412 ITD19PPCT5IPSJ6-69K
19¡±Full IP69K Panel PC with Tempered Glass, Intel J6412 ITD19PPCG1IPSJ6-69K
19¡±Full IP69K Panel PC with Resistive Touch, Intel i3 ITD19PPCT1IPSI3-69K
19¡±Full IP69K Panel PC with PCAP Touch, Intel i3 ITD19PPCT5IPSI3-69K
19¡±Full IP69K Panel PC with Tempered Glass, Intel i3 ITD19PPCG1IPSI3-69K
19¡±Full IP69K Panel PC with Resistive Touch, Intel i5 ITD19PPCT1IPSI5-69K
19¡±Full IP69K Panel PC with PCAP Touch, Intel i5 ITD19PPCT5IPSI5-69K
19¡±Full IP69K Panel PC with Tempered Glass, Intel i5 ITD19PPCG1IPSI5-69K
