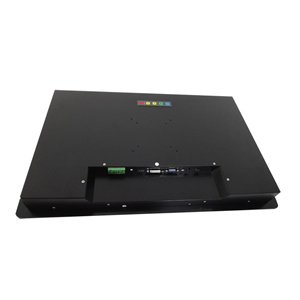

22 inch Panel Mount LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install embedded/panel mounting with clamps
-Robust design with aluminum NEMA 4/ IP65 front panel
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial panel mountLCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 6mm thickness and highly-durable glass front surface provide the durability needed for demanding industrial environments.Industrial panel mountmonitors come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, industrial analog & digital driver board, low power consumption, and scratch-resistant capabilitiesare idealfor system integrators,kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marine applications.




Panel Mount LCD
Monitor





Model Name

ITD22PMN101

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch)

22

Display Active Screen Size (cm)

473.8(H)296.1(V)

Aspect Ratio

16:10

Physical Resolution

16801050

Maximum Resolution Supported

19201080

Colors

16.7M

Brightness (cd/m2)

250

Contrast Ratio

1000:1

View Angels

85/85/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'Lifetime


Touch Panel



Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output



Video Input

1 VGA

1 DVI-I

1 HDMI

Audio

1 PC-Audio

Touch Connector

1 USB

Power Connector

1 DC2.0


Operation

Operating Temperature Range

-10~60C (-20~70COptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

24.7W


Order Information



22Panel Mount LCD Monitor with Resistive Touch

ITD22PMT101

22Panel Mount LCD Monitor with IR Touch

ITD22PMT201

22Panel Mount LCD Monitor with SAW Touch

ITD22PMT301

22Panel Mount LCD Monitor with PCAP Touch

ITD22PMT501

22Panel Mount LCD Monitor with Tempered Glass

ITD22PMG101
