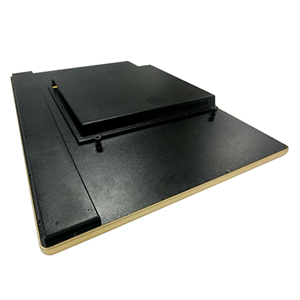

75 inch Large Format LCD Display

Products > Digital Signage > Large Format LCD Displays > 75 inch Large Format LCD Display

BENEFITES
- All steel/aluminum construction provides rugged frame for public use environments
- Tempered glass integrated for vandal proof
- Eliminates dust and debris build-up at the edge and corners of the display
- Provides improved power efficiency and reduced consumption
- 4K Ultra HD displays delivering amazingly life-like picture quality
- Easy-to-clean surface without bezels
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD’s line of large format LCD displays ranging in size from 40" - 98", this series features models available with TV function, video inputs, media playback, and zero bezels. Engineered from the ground up for extended commercial use, each model is recommended for up to 24x7 operations and comes standard with a durable steel back chassis. The 4K display optional solutions deliver unparalleled Ultra HD image quality and performance for resolution-rich commercial applications offering unique experiences with value-added features designed to make 4K technology accessible, affordable, and easy to implement. ITD's large format displays are designed for demanding applications with high durability and performance requirements. From communicating information to enhancing ambience, ITD's flat panel display monitor lines are the ideal complement to any retail store, lobby, control room, or other professional application. Each of ITD’s large format LCD displays is designed for demanding applications with high durability and performance requirements.

Large Format LCD Display
Model Name	ITD75ADG1D1
IP Rating	IP65 Front Panel
LCD Panel
Screen Diagonal (Inch/cm)	75”
Display Active Screen Size (mm)	1649.66(H) x 927.936(V)
Aspect Ratio	16:9
Physical Resolution	1920 x 1080 or 3840 x 2160
Maximum Resolution Supported	3840 x 2160
Colors	16.7M
Brightness (cd/m2)	450nits
Contrast Ratio	1200:1
View Angels	89/89/89/89
Backlight/Backlight Lifetime	LED Backlight with 50000Hours’Lifetime
Input / Output
Video Input	1 × TV input(ATVPAL/NTSC)
	1 × AV inputs
	2 × HDMI inputs
	1 × YPbPr input
	1 × CVBS input&output
	2 × USB ports
Audio Input/Putput	1 × Audio input/output
Operation
Operating Temperature Range	0~50°C
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	AC100-240V
Power Consumption	140W
Optional
Wall-Mounting Brackets, Desktop Stand, Network TV Function
Order Information
75”Large Format LCD Display with Network TV Integrated	ITD75ADG1DE
