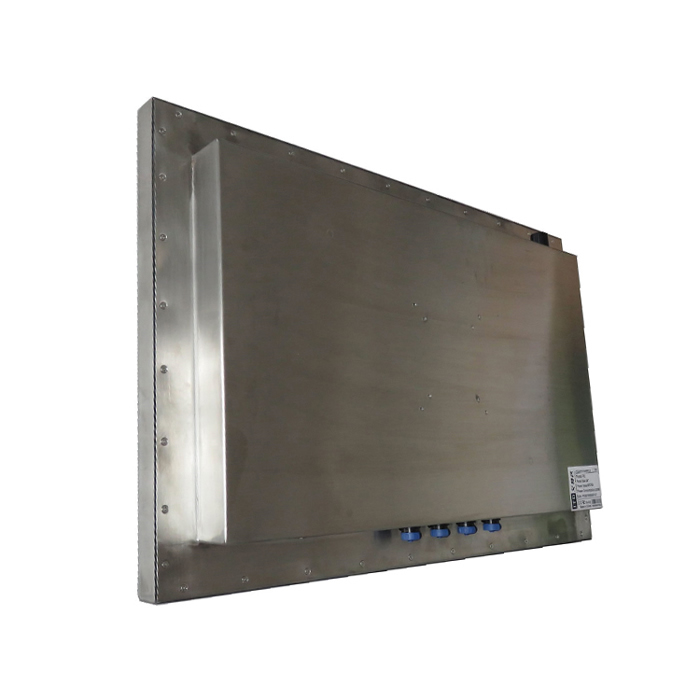

27 inch Full IP65/IP66 Waterproof Touchscreen Panel PC
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures
- IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
- Easy-to-install VESA(75/100mm) wall mounting
- Optional touchscreens like IR and PCAP
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial full IP65 touch panel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP65 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. ITD full IP65 touch panel PCs come with industrial -grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fan-less design, and scratch-resistant capabilities which are ideal for harsh environments of process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI applications.



Full IP65/IP66 Touchscreen Panel PC

Model Name

ITD27PPCG1IP**

IP Rating

IP65/IP66(IP67 optional)


PC Systems Options
ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core i3/i5/i7
(4th~12th Generation optional)
Chipset: Rockchip Chipset: Intel Bay Trail SoC Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM×1(Intel J4125/J6412) 2×DDR3 1333/1600MHz SO-DIMM Slot;
DDR4 SODIMM ×2 (8th~12th Gen.)
HDD/SSD: Default to?16G, Max. 128G Storage: 1×MSATA, 1×SATA
1×M.2 (not available for J1900) Default to 64GB SSD		 Storage: 1×MSATA, 1×SATA
1×M.2 Default to 64GB SSD
1×HDMI Output; COM optional 1×VGA, 1×HDMI 1×VGA, 1×HDMI
2×USB, Max. 4×USB, 1×USB OTG (optional) 2×USB 2.0, 2×USB3.0, Max. 6 2×USB 2.0, 2×USB3.0, Max. 6
1×TF Card Slot(Supports 8~128G) 2×COM, Max. 6 2×COM, Max. 6
1×LAN 1×LAN, Dual LAN optional 1×LAN, Dual LAN optional
1×Audio Out 1×Realtek ALC662 , 1×Line-Out/MIC In 1×Realtek ALC662 , 1×Line-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux
Windows 11(available for J4125/J6412)		 Windows 7/10, Linux
Windows 11(available for 7th gen. or above)

Default IP65 Connectors:  2×USB 2.0, 1×LAN, 1×AC 110~240V


LCD Panel

Screen Diagonal (Inch/cm)

27”

Display Active Screen Size (mm)

597.888(H)×336.312(V)

Aspect Ratio

16:9

Physical Resolution

1920×1080

Maximum Resolution Supported

1920×1080

Colors

16.7M

Brightness (cd/m2)

300

Contrast Ratio

1000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000Hours’Lifetime


Touch Panel

Touch Options

IR, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

0~50°C

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

AC 110~240V

Power Consumption

80W


Order Information

27”Full IP65/IP66 Panel PC with IR Touch, J1900

ITD27PPCT2IPJ1

27”Full IP65/IP66 Panel PC with PCAP Touch, J1900

ITD27PPCT5IPJ1

27”Full IP65/IP66 Panel PC with Tempered Glass, J1900

ITD27PPCG1IPJ1

27”Full IP65/IP66 Panel PC with IR Touch, i3

ITD27PPCT2IPI3

27”Full IP65/IP66 Panel PC with PCAP Touch, i3

ITD27PPCT5IPI3

27”Full IP65 /IP66Panel PC with Tempered Glass, i3

ITD27PPCG1IPI3

27”Full IP65/IP66 Panel PC with IR Touch, i5

ITD27PPCT2IPI5

27”Full IP65/IP66 Panel PC with PCAP Touch, i5

ITD27PPCT5IPI5

27”Full IP65 /IP66Panel PC with Tempered Glass, i5

ITD27PPCG1IPI5
