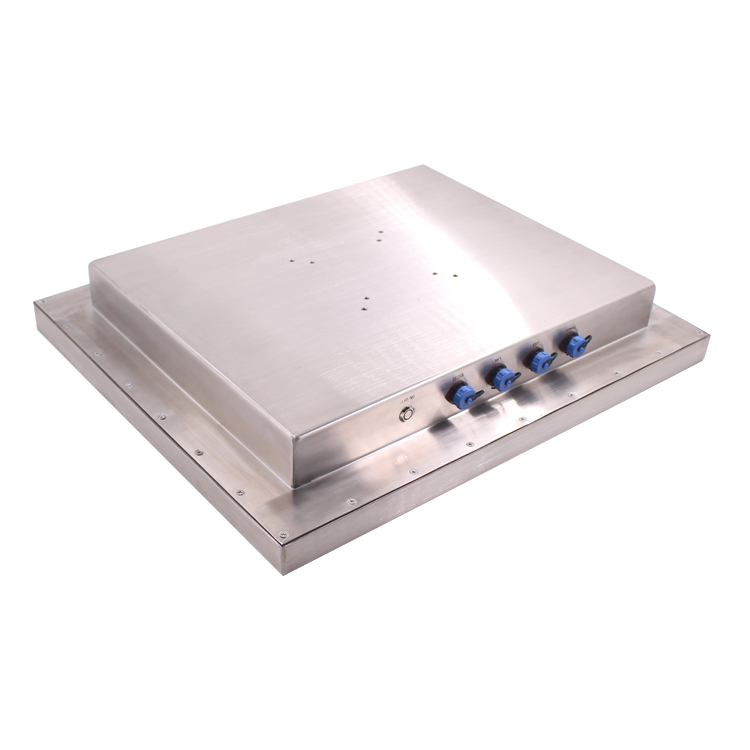

9.7 inch Full IP65/IP66 Waterproof Touchscreen Panel PC

Products > Rugged IP66/IP67/IP69K Stainless Displays > Rugged Full IP65 IP66 Touchscreen Panel PC > 9.7 inch Full IP65/IP66 Waterproof Touchscreen Panel PC

BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures
- IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
- Easy-to-install VESA(75/100mm) wall mounting
- Optional touchscreens like resistive and PCAP
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial full IP65 touch panel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP65 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. ITD full IP65 touch panel PCs come with industrial -grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fan-less design, and scratch-resistant capabilities which are ideal for harsh environments of process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI applications.

Full IP65/IP66 Touchscreen Panel PC

Model Name

ITD09PPCG1IP**

IP Rating

IP65/IP66(IP67 optional)

PC Systems Options

ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional)	X86 Based	X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel Celeron J1900/J4125/J6412 2.0GHz	Intel Core i3/i5/i7 (4th~12th Generation optional)
Chipset: Rockchip	Chipset: Intel Bay Trail SoC	Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional	Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM×1(Intel J4125/J6412)	2×DDR3 1333/1600MHz SO-DIMM Slot; DDR4 SODIMM ×2 (8th~12th Gen.)
HDD/SSD: Default to?16G, Max. 128G	Storage: 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD	Storage: 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD
1×HDMI Output; COM optional	1×VGA, 1×HDMI	1×VGA, 1×HDMI
2×USB, Max. 4×USB, 1×USB OTG (optional)	2×USB 2.0, 2×USB3.0, Max. 6	2×USB 2.0, 2×USB3.0, Max. 6
1×TF Card Slot(Supports 8~128G)	2×COM, Max. 6	2×COM, Max. 6
1×LAN	1×LAN, Dual LAN optional	1×LAN, Dual LAN optional
1×Audio Out	1×Realtek ALC662 , 1×Line-Out/MIC In	1×Realtek ALC662 , 1×Line-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions	Windows 7/10, Linux Windows 11(available for J4125/J6412)	Windows 7/10, Linux Windows 11(available for 7th gen. or above)

Default IP65 Connectors: 1×USB 2.0, 1×LAN, 1×DC 2.0

LCD Panel

Screen Diagonal (Inch/cm)

9.7”

Display Active Screen Size (mm)

196.608(H)×147.456(V)

Aspect Ratio

4:3

Physical Resolution

1024×768

Maximum Resolution Supported

1920×1080

Colors

262K

Brightness (cd/m2)

300

Contrast Ratio

500:1

View Angels

80/80/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000Hours’Lifetime

Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC12V

Power Consumption

20W

Order Information

9.7”Full IP65/IP66 Panel PC with Resistive Touch, J1900

ITD09PPCT1IPJ1

9.7”Full IP65/IP66 Panel PC with PCAP Touch, J1900

ITD09PPCT5IPJ1

9.7”Full IP65/IP66 Panel PC with Tempered Glass, J1900

ITD09PPCG1IPJ1

9.7”Full IP65/IP66 Panel PC with Resistive Touch, i3

ITD09PPCT1IPI3

9.7”Full IP65/IP66 Panel PC with PCAP Touch, i3

ITD09PPCT5IPI3

9.7”Full IP65 /IP66Panel PC with Tempered Glass, i3

ITD09PPCG1IPI3
