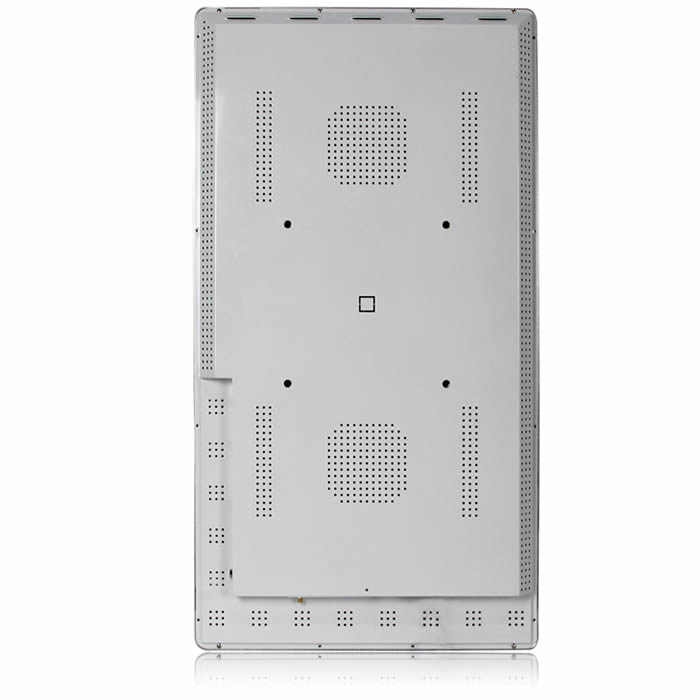

Industrial Fanless All in One Touchscreen PC with RFID/NFC

Model Name

ITD32PPCT5K**-RFID/NFC

IP Rating

IP65 Front Panel

PC Systems Options

ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel HD Graphics, Support 1080p

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1×HDMI

1×VGA, 1×HDMI

1×VGA, 1×HDMI

1×USB 2.0

2×USB 2.0, 2×USB3.0

2×USB 2.0, 2×USB3.0

1×mini-SD slot

1×COM(RS232/422/485)

1×COM(RS232/422/485)

1×LAN

1×LAN

1×LAN

1×Audio Out

1×Audio Out, 1×MIC In

1×Audio Out, 1×MIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe

LCD Panel

Screen Diagonal (Inch/cm)

32”

Display Active Screen Size (mm)

698.40(H) ×392.85(V)

Aspect Ratio

16:9

Physical Resolution

1920×1080

Maximum Resolution Supported

1920×1080

Colors

16.7M

Brightness (cd/m2)

450nits

Contrast Ratio

1000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Technology

Projected Capacitive Touch

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Touch Life

50,000,000 Times/Click

Surface Hardness

7H

OS Support

Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

AC100-240V

Power Consumption

70W

Order Information

32”PCAP Touch Panel PC with J1900, RFID

ITD32PPCT5KJ1-RFID

32” PCAP Touch Panel PC with Android RK3368, RFID

32”PCAP Touch Panel PC with Android RK3399, RFID

ITD32PPCT5KE1-RFID

ITD32PPCT5KE2-RFID

32”PCAP Touch Panel PC with i3, RFID

ITD32PPCT5KI3-RFID

32” PCAP Touch Panel PC with i5, RFID

32”PCAP Touch Panel PC with i7, RFID

ITD32PPCT5KI5-RFID

ITD32PPCT5KI7-RFID

32”PCAP Touch Panel PC with J1900, NFC

ITD32PPCT5KJ1-NFC

32” PCAP Touch Panel PC with Android RK3368, NFC

32”PCAP Touch Panel PC with Android RK3399, NFC

ITD32PPCT5KE1-NFC

ITD32PPCT5KE2-NFC

32”PCAP Touch Panel PC with i3, NFC

ITD32PPCT5KI3-NFC

32” PCAP Touch Panel PC with i5, NFC

32”PCAP Touch Panel PC with i7, NFC

ITD32PPCT5KI5-NFC

ITD32PPCT5KI7-NFC
