Products > Industrial Panel PCs > Zero Bezel PCAP Touchscreen Panel PC  >  32 inch Zero-Bezel PCAP Touch Panel PC

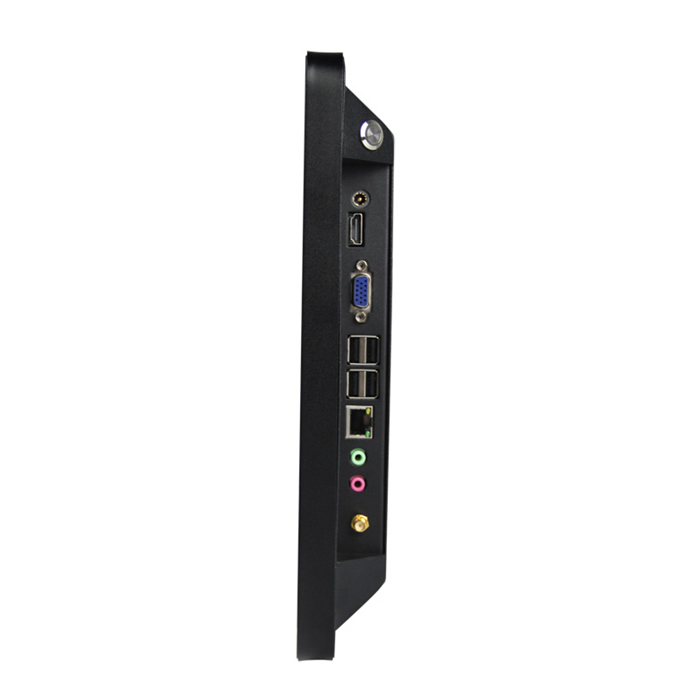

32 inch Zero-Bezel PCAP Touch Panel PC
BENEFITES
-Exceptional quality and highly engineered industrial/commercial panel computer
-High Performance Processor, Graphics, Memory and Power
-Edge to edge design with true flat surface, easy to clean without bezels
-Ten independent touch points, plug and play
-All steel construction designed for industrial or public environments
-Easy-to-install VESA mounting with brackets
-Robust design with aluminum frame NEMA 4/ IP65 front panel
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD Zero-Bezel PCAP touch panel PCs come with projected capacitive touch panel, edge to edge design without bezels that eliminates dust and debris build-up at the edge and corners of the display. The rugged steel chassis with robust aluminum frame and highly-durable glass front surface provide the durability needed for demanding pubic/industrial environments. The PCAP touch panel is combined with projected capacitive touch makes true flat surface with easy to clean and come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for public information, digital poster, digital signage, kiosk, home automation, building automation, access automation and custom HMI applications.




Zero-Bezel PCAP Touch Panel PC

Model Name ITD32PPCG1K**
IP Rating IP65 Front Panel

PC Systems Options

ARM Android Based RK3288(RK3399 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/6412 CPU: Intel Core i3/i5/i7 4th~11th Generation
Chipset: Rockchip Chipset: Intel Bay Trail SOC Chipset: Intel SoC
Graphic: Intel HD Graphics (By CPU) Chipset: Intel HD Graphics (By CPU)
Memory: 2G Max. 8GB Memory: 4GB, Max. 8GB/16GB; DDR4 SODIMM x1 Memory: 4GB, Max. 32GB; DDR4 SODIMM x2
HDD/SSD: 8G Max. 64GB Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD
1¡ÁHDMI Output 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
1¡ÁUSB 2.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0
1¡ÁTF Slot 2¡ÁCOM(RS232/422/485) 1¡ÁCOM(RS232/422/485)
1¡ÁLAN 1¡ÁLAN (Dual LAN optional) 1¡ÁLAN (Dual LAN optional)
1¡ÁAudio Output 1¡ÁAudio Out, 1¡ÁMIC In 1¡ÁAudio Out, 1¡ÁMIC In
1¡ÁCOM Expansion: USB, COM, Mini-PCIe, etc. Expansion: USB, COM, Mini-PCIe, etc.
OS Support: Android 7.1/8/9/10/11 OS Support: Windows 7/10/11, Linux OS Support: Windows 7/10/11, Linux

LCD Panel

Screen Diagonal (Inch/cm) 32¡±
Display Active Screen Size (mm) 698.40(H) ¡Á392.85(V)
Aspect Ratio 16:9
Physical Resolution 1920¡Á1080
Maximum Resolution Supported 1920¡Á1080
Colors 16.7M
Brightness (cd/m2) 450nits
Contrast Ratio 1000:1
View Angels 89/89/89/89
Backlight/Backlight Lifetime LED Backlight with 50000 Hours¡¯ Lifetime

Touch Panel

Touch Technology Projected Capacitive Touch
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi
Touch Life 50,000,000 Times/Click
Surface Hardness 7H
OS Support Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range -10~60¡ãC (-20~70¡ãC Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input AC100-240V
Power Consumption 70W

Order Information

32¡± Zero-Bezel Touch Panel PC with PCAP Touch, J1900 ITD32PPCT5KJ1
32¡± Zero-Bezel Touch Panel PC with Tempered Glass, J1900 ITD32PPCG1KJ1
32¡± Zero-Bezel Touch Panel PC with PCAP Touch, i3 ITD32PPCT5KI3
32¡± Zero-Bezel Touch Panel PC with Tempered Glass, i3 ITD32PPCG1KI3
32¡± Zero-Bezel Touch Panel PC with PCAP Touch, i5 ITD32PPCT5KI5
32¡± Zero-Bezel Touch Panel PC with Tempered Glass, i5 ITD32PPCG1KI5
32¡± Zero-Bezel Touch Panel PC with PCAP Touch, i7 ITD32PPCT5KI7
32¡± Zero-Bezel Touch Panel PC with Tempered Glass, i7 ITD32PPCG1KI7
