Products > Industrial Panel PCs > Zero Bezel PCAP Touchscreen Panel PC  >  43 inch Zero-Bezel PCAP Touch Panel PC

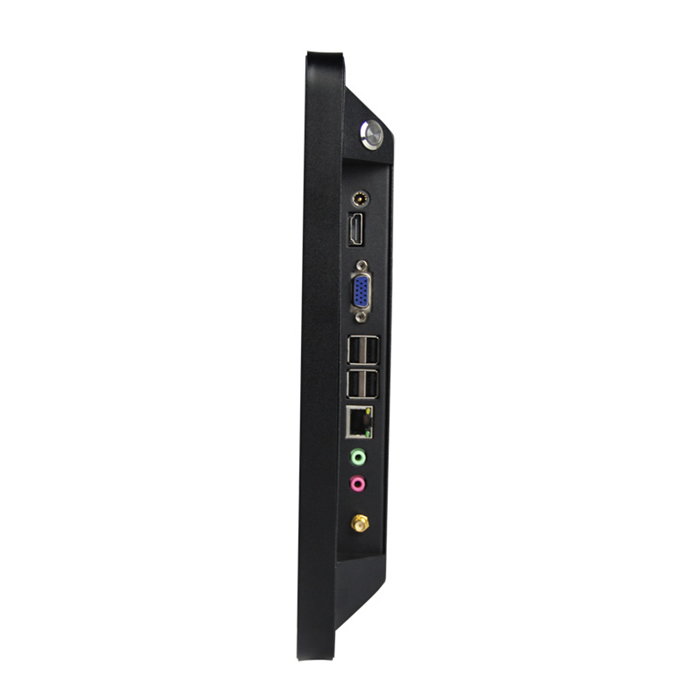

43 inch Zero-Bezel PCAP Touch Panel PC
BENEFITES
-Exceptional quality and highly engineered industrial/commercial panel computer
-High Performance Processor, Graphics, Memory and Power
-Edge to edge design with true flat surface, easy to clean without bezels
-Ten independent touch points, plug and play
-All steel construction designed for industrial or public environments
-Easy-to-install VESA mounting with brackets
-Robust design with aluminum frame NEMA 4/ IP65 front panel
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD Zero-Bezel PCAP touch panel PCs come with projected capacitive touch panel, edge to edge design without bezels that eliminates dust and debris build-up at the edge and corners of the display. The rugged steel chassis with robust aluminum frame and highly-durable glass front surface provide the durability needed for demanding pubic/industrial environments. The PCAP touch panel is combined with projected capacitive touch makes true flat surface with easy to clean and come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for public information, digital poster, digital signage, kiosk, home automation, building automation, access automation and custom HMI applications.



Zero-Bezel PCAP Touch Panel PC

Model Name

ITD42PPCG1K**

IP Rating

IP65 Front Panel


PC Systems Options

ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel HD Graphics, Support 1080p

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁUSB 2.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡Ámini-SD slot

1¡ÁCOM(RS232/422/485)

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁLAN

1¡ÁLAN

1¡ÁAudio Out

1¡ÁAudio Out, 1¡ÁMIC In

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe


LCD Panel

Screen Diagonal (Inch/cm)

43¡±

Display Active Screen Size (mm)

930.24(H) ¡Á523.26(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

400nits

Contrast Ratio

1200:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Technology

Projected Capacitive Touch

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Touch Life

50,000,000 Times/Click

Surface Hardness

7H

OS Support

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

AC100-240V

Power Consumption

78W


Order Information

43¡± Zero-Bezel Touch Panel PC with PCAP Touch, J1900

ITD43PPCT5KJ1

43¡± Zero-Bezel Touch Panel PC with Tempered Glass, J1900

43¡± Zero-Bezel Touch Panel PC with PCAP Touch, i3

ITD43PPCG1KJ1

ITD43PPCT5KI3

43¡± Zero-Bezel Touch Panel PC with Tempered Glass, i3

43¡± Zero-Bezel Touch Panel PC with PCAP Touch, i5

43¡± Zero-Bezel Touch Panel PC with Tempered Glass, i5

43¡± Zero-Bezel Touch Panel PC with PCAP Touch, i7

ITD43PPCG1KI3

ITD43PPCT5KI5

ITD43PPCG1KI5

ITD43PPCT5KI7

43¡± Zero-Bezel Touch Panel PC with Tempered Glass, i7

ITD43PPCG1KI7
