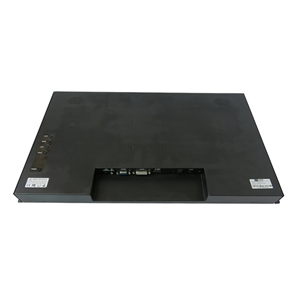

49 inch Open Frame LCD Monitor

Products > Industrial Touchscreen LCD > Open Frame LCD Monitor > 49 inch Open Frame LCD Monitor

BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install cabinet and open frame rear-mount display
-Multiple mounting options (75/100mm VESA mount and sidebrackets)
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial open frame displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application. ITDopen frame LCD monitorsare packaged in a steel enclosureand durable glass front surface provide the durability neededfor demanding industrial environments. These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder applications.

Open Frame LCD Monitor
Model Name	ITD49OFN1M1
IP Rating	N/A
LCD Panel
Screen Diagonal (Inch/cm)	49”
Display Active Screen Size (mm)	1073.78(H)×604(V)
Aspect Ratio	16:9
Physical Resolution	1920×1080
Maximum Resolution Supported	1920×1080
Colors	16.7M
Brightness (cd/m2)	450nits
Contrast Ratio	4000:1
View Angels	89/89/89/89
Backlight/Backlight Lifetime	LED Backlight with 50000 Hours’Lifetime
Touch Panel
Touch Options	IR, PCAP, SAW
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Input / Output
Video Input	1 × VGA
	1 × DVI-I
	1 × HDMI
Audio	1 × PC-Audio
Touch Connector	1 × USB
Operation
Operating Temperature Range	0~50°C (-10~60°COptional)
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	AC100-240 V
Power Consumption	92W
Order Information
49”Open Frame LCD Monitor with IR Touch	ITD49OFT2M1
49”Open Frame LCD Monitor with PCAP Touch	ITD49OFT5M1
49”Open Frame LCD Monitor with Tempered Glass	ITD49OFG1M1

Next：55 inch Open Frame LCD Monitor
Previous：43 inch Open Frame LCD Monitor
