Products > Industrial Touchscreen LCD > Open Frame LCD Monitor  >  55 inch Open Frame LCD Monitor

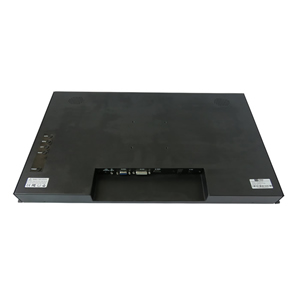

55 inch Open Frame LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install cabinet and open frame rear-mount display
-Multiple mounting options (75/100mm VESA mount and sidebrackets)
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial open frame displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application.  ITDopen frame LCD monitorsare packaged in a steel enclosureand durable glass front surface provide the durability neededfor demanding industrial environments. These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder applications.




Open Frame LCD
Monitor

Model Name

ITD55OFN1M1

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch/cm)

55¡±

Display Active Screen Size (mm)

1209.6(H) ¡Á680.4(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

450nits

Contrast Ratio

1400:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED backlight with 50000 hours¡¯lifetime


Touch Panel



Touch Options

IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output



Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB


Operation

Operating Temperature Range

0~50¡ãC (-10~60¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

AC100-240 V

Power Consumption

92W


Order Information



49¡±Open Frame LCD Monitor with IR Touch

ITD49OFT2M1

49¡±Open Frame LCD Monitor with PCAP Touch

ITD49OFT5M1

49¡±Open Frame LCD Monitor with Tempered Glass

ITD49OFG1M1

Next£º65 inch Open Frame LCD Monitor
Previous£º49 inch Open Frame LCD Monitor
