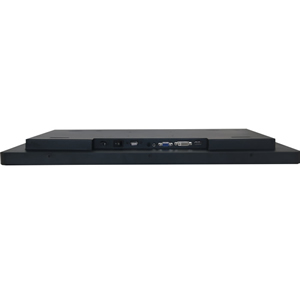

Chassis LCD Monitor

Model Name

ITD55CMN101

IP Rating

N/A

LCD Panel

Screen Diagonal (Inch)

55”

Display Active Screen Size (cm)

1209.6×680.4

Aspect Ratio

16:9

Physical Resolution

1920×1080

Maximum Resolution Supported

1920×1080

Colors

16.7M

Brightness (cd/m2)

400

Contrast Ratio

1400:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000Hours’Lifetime

Touch Panel

Touch Options

IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Input / Output

Video Input

1 × VGA

1 × DVI-I

1 × HDMI

Audio

1 × PC-Audio

Touch Connector

1 × USB

Operation

Operating Temperature Range

0~50°C (-10~60°COptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

AC 110V-240V

Power Consumption

160W

Order Information

55”Chassis LCD Monitor with IR Touch

ITD55CMT201

55”Chassis LCD Monitor with SAW Touch

ITD55CMT301

55”Chassis LCD Monitor with PCAP Touch

ITD55CMT501

55”Chassis LCD Monitor with Tempered Glass

ITD55CMG101
