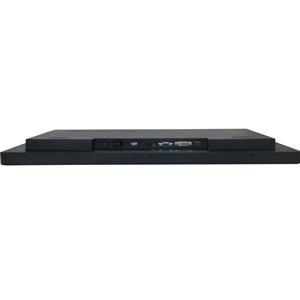

65 inch Chassis LCD Monitor

Products > Industrial Touchscreen LCD > Chassis LCD Monitor > 65 inch Chassis LCD Monitor

BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install cabinet and chassisVESA-mount display
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial chassis LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments. Industrial chassis LCD monitors are designed for system integrators, digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports, industrial/factory automation, railroad terminalsand industrial machinery builder applications.ITD full-range selection is provided in screen sizes from 5.7”~85”.

Chassis LCD Monitor
Model Name	ITD65CMN101
IP Rating	N/A
LCD Panel
Screen Diagonal (Inch)	65”
Display Active Screen Size (cm)	1428.48×803.52
Aspect Ratio	16:9
Physical Resolution	1920×1080
Maximum Resolution Supported	1920×1080
Colors	16.7M
Brightness (cd/m2)	400
Contrast Ratio	1400:1
View Angels	89/89/89/89
Backlight/Backlight Lifetime	LED Backlight with 50000Hours’Lifetime
Touch Panel
Touch Options	IR, PCAP, SAW
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Input / Output
Video Input	1 × VGA
	1 × DVI-I
	1 × HDMI
Audio	1 × PC-Audio
Touch Connector	1 × USB
Operation
Operating Temperature Range	0~50°C (-10~60°COptional)
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	AC 110V-240V
Power Consumption	260W
Order Information
65”Chassis LCD Monitor with IR Touch	ITD65CMT201
65”Chassis LCD Monitor with SAW Touch	ITD65CMT301
65”Chassis LCD Monitor with PCAP Touch	ITD65CMT501
65”Chassis LCD Monitor with Tempered Glass	ITD65CMG101

Next：75 inch Chassis LCD Monitor
Previous：55 inch Chassis LCD Monitor
