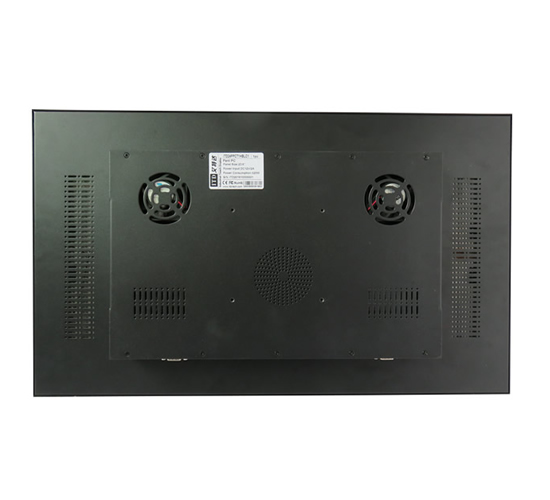

65 inch Chassis High Bright Sunlight Readable Panel PC
BENEFITES
- Exceptional quality and highly engineered sunlight readable industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- All steel construction designed for harsh & industrial environments
- Easy-to-install VESA(75/100mm) wall mounting
- Optional touchscreens like resistive, IR, SAW, PCAP, Touch Foil
- High brightness from 1000nits to 2000nits optional
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial chassis sunlight readable panel PCs is a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass (anti-reflective, anti-glare optional)front surface provide the durability needed for demanding industrial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD chassis panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI for indoor, semi-outdoor or outdoor applications.




Chassis High Brightness Panel PC

Model Name

ITD65PPCG1HBL**

IP Rating

IP65 Front Panel Optional


PC Systems Options

ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel NM10 Express

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1HDMI

1VGA, 1HDMI

1VGA, 1HDMI

1USB 2.0

2USB 2.0, 2USB3.0

2USB 2.0, 2USB3.0

1mini-SD slot

1COM(RS232/422/485)

1COM(RS232/422/485)

1LAN

1LAN

1LAN

1Audio Out

1Audio Out, 1MIC In

1Audio Out, 1MIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe


LCD Panel

Screen Diagonal (Inch)

65

Display Active Screen Size (cm)

1428.48(H)803.52(V)

Aspect Ratio

16:9

Physical Resolution

19201080

Maximum Resolution Supported

19201080

Colors

16.7M

Brightness (cd/m2)

1000(1500 Optional)

Contrast Ratio

3000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime


Touch Panel

Touch Options

Resistive, IR, PCAP, SAW, Touch Foil

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60C (-20~70C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

Internal Power Supply, AC100V~240V

Power Consumption

390W


Order Information

651500nits Chassis Panel PC with Resistive Touch, J1900

ITD65PPCT1HBLJ1

651500nits Chassis Panel PC with PCAP Touch, J1900

ITD65PPCT5HBLJ1

651500nits Chassis Panel PC with IR Touch, J1900

ITD65PPCT2HBLJ1

651500nits Chassis Panel PC with Tempered Glass, J1900

ITD65PPCG1HBLJ1

651500nits Chassis Panel PC with Resistive Touch, i5

ITD65PPCT1HBLI5

651500nits Chassis Panel PC with PCAP Touch, i5

ITD65PPCT5HBLI5

651500nits Chassis Panel PC with IR Touch, i5

ITD65PPCT2HBLJ1

651500nits Chassis Panel PC with Tempered Glass, i5

ITD65PPCG1HBLI5
