65 inch High Brightness Ultra Slim Window Facing Digital Signage LCD Display
BENEFITES
- Super High Brightness 1500~5000 cd/O optional with Long Lasting Brightness
- Combined TNi 110 Industrial LCD Panel Avoiding Blackening Issue with Direct Sunlight
- Auto-Dimming Control to Save Power Energy
- Quiet Operation & Super Slim Design
- Visible with Polarized Sunglasses
- Ultra-Low Power Consumption & Longer Lifespan
- All steel construction designed for harsh and industrial environments
- 24/7/365 Running Supported
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD HD Series displays not only deliver an image with flawless clarity, but also are designed to maintain its superior picture quality even when exposed to direct sunlight C a common challenge for conventional in-window displays. In addition, with a slim and sleek design, the ITD HD series is compatible with any window layout and highlights the sophisticated and modern style of the brand. The ITD HD series also delivers bright and clear images while consuming a low amount of power, which positions businesses to reduce overall costs and optimize efficiency considerably. ITDs HD series of window facing digital signage capture customers with its vivid image quality and quiet operation. The HD series helps businesses enhance their brand image while enriching the customers shopping experience.




Chassis High Brightness LCD Monitor

Model Name ITD65CM-HD01
IP Rating IP65 Front Optional

LCD Panel

Screen Diagonal (Inch/cm) 65IPS, M+ (WRGB), High TNi 110
Display Active Screen Size (mm) 1428.48(H)803.52(V)
Aspect Ratio 16:9
Physical Resolution 38402160
Maximum Resolution Supported 38402160
Colors  1.07B
Brightness (cd/m2) 1500 cd/m2 up to Max. 5000 cd/m2
Contrast Ratio 1100:1
Dynamic CR 500,000:1
View Angels 89/89/89/89
Surface Treatment AGLR (Haze 3%)
Backlight/Backlight Lifetime LED Backlight with 50000 Hours Lifetime
Orientation Landscape & Portrait

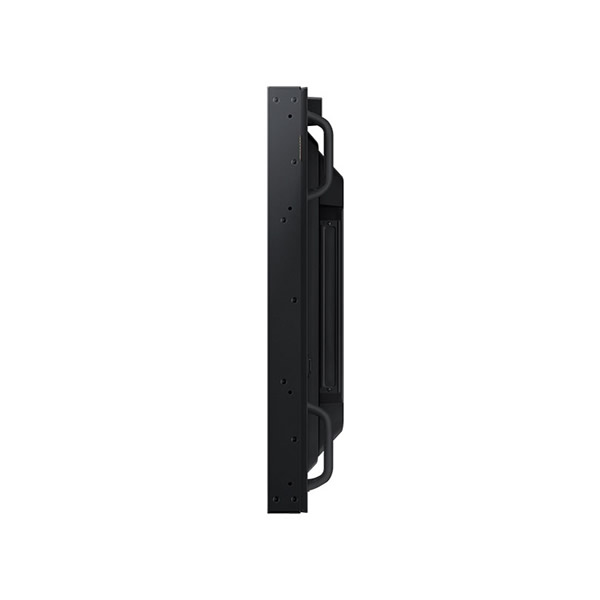

Mechanical Structure

Bezel Color Black
Bezel Width 15mm(T/B/L/R)
Outline Dimensions (WHD) 1467.40  843.40 85.30
Weight 45.0KG
VESA Standard Mount 400  500mm

Solution 1: LCD Monitor

Input / Output

Video Input 1 VGA
1 DVI-I (Optional)
1 HDMI
Audio  1 PC-Audio
RS232 Remote Control Optional

Solution 2: ARM Based Android Version

Input / Output

Processor Quad Core Cortex-A17 1.8Ghz; Octa-Core optional
Chipset RK3288; RK3399 optional
Memory Default 2GB
Flash Default 8GB
Video Output 1  HDMI
USB Port 2  USB 2.0
SD Card Slot 1  SD Card Slot
LAN 1  RJ45 Port
Audio Output 1  Audio Output
COM Optional

Operation

Operating Temperature Range 0~50C
Operating Humidity Range (RH) 20-80%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input AC 100-240V (50/60 Hz)
Power Consumption Type/Max.: 500W/550W
Smart Energy Saving: 40W

Accessories

Included Accessories Remote Control (W/O Battery), AC Power Cable
Optional Accessorries Mounting Brackets: Wall Mount, Roof Hanging, Floor Stand)

Order Information

651500nits Window Facing Digital LCD Monitor Display ITD65CM-HD01
652000nits Window Facing Digital LCD Monitor Display ITD65CM-HD02
652500nits Window Facing Digital LCD Monitor Display ITD65CM-HD03
653000nits Window Facing Digital LCD Monitor Display ITD65CM-HD04
654000nits Window Facing Digital LCD Monitor Display ITD65CM-HD05
655000nits Window Facing Digital LCD Monitor Display ITD65CM-HD06
651500nits Window Facing Digital Android LCD Display ITD65CM-HDE1
652000nits Window Facing Digital Android LCD Display ITD65CM-HDE2
652500nits Window Facing Digital Android LCD Display ITD65CM-HDE3
653000nits Window Facing Digital Android LCD Display ITD65CM-HDE4
654000nits Window Facing Digital Android LCD Display ITD65CM-HDE5
655000nits Window Facing Digital Android LCD Display ITD65CM-HDE6
