Products > Sunlight Readable LCD > Window Facing Digital LCD Displays  >  75 inch High Brightness Ultra Slim Window Facing Digital Signage LCD Display

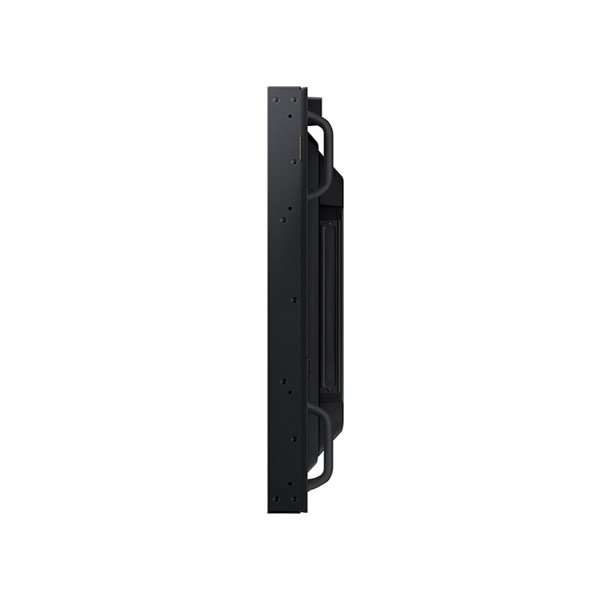

75 inch High Brightness Ultra Slim Window Facing Digital Signage LCD Display
BENEFITES
- Super High Brightness 1500~5000 cd/O optional with Long Lasting Brightness
- Combined TNi 110 Industrial LCD Panel Avoiding Blackening Issue with Direct Sunlight
- Auto-Dimming Control to Save Power Energy
- Quiet Operation & Super Slim Design
- Visible with Polarized Sunglasses
- Ultra-Low Power Consumption & Longer Lifespan
- All steel construction designed for harsh and industrial environments
- 24/7/365 Running Supported
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD HD Series displays not only deliver an image with flawless clarity, but also are designed to maintain its superior picture quality even when exposed to direct sunlight C a common challenge for conventional in-window displays. In addition, with a slim and sleek design, the ITD HD series is compatible with any window layout and highlights the sophisticated and modern style of the brand. The ITD HD series also delivers bright and clear images while consuming a low amount of power, which positions businesses to reduce overall costs and optimize efficiency considerably. ITDs HD series of window facing digital signage capture customers with its vivid image quality and quiet operation. The HD series helps businesses enhance their brand image while enriching the customers shopping experience.



Chassis High Brightness LCD Monitor


Model Name

ITD75CM-HD01

IP Rating

IP65 Front Optional


LCD Panel


Screen Diagonal (Inch/cm)

75IPS, M+ (WRGB), High TNi 110

Display Active Screen Size (mm)

1650.24(H)928.26(V)

Aspect Ratio

16:9

Physical Resolution

38402160

Maximum Resolution Supported

38402160

Colors

1.07B

Brightness (cd/m2)

1500 cd/m2 up to Max. 5000 cd/m2

Contrast Ratio

1100:1

Dynamic CR

500,000:1

View Angels

89/89/89/89

Surface Treatment

AGLR (Haze 3%)

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime

Orientation

Landscape & Portrait


Mechanical Structure


Bezel Color

Black

Bezel Width

15mm(T/B/L/R)

Outline Dimensions (WHD)

1688.58  967.82 85.30

Weight

60.0KG

VESA Standard Mount

400  500mm


Solution 1: LCD Monitor

Input / Output

Video Input

1 VGA

1 DVI-I (Optional)

1 HDMI

Audio

1 PC-Audio

RS232 Remote Control

Optional


Solution 2: ARM Based Android Version

Input / Output

Processor

Quad Core Cortex-A17 1.8Ghz; Octa-Core optional

Chipset

RK3288; RK3399 optional

Memory

Default 2GB

Flash

Default 8GB

Video Output

1  HDMI

USB Port

2  USB 2.0

SD Card Slot

1  SD Card Slot

LAN

1  RJ45 Port

Audio Output

1  Audio Output

COM

Optional


Operation


Operating Temperature Range

0~50C

Operating Humidity Range (RH)

20-80%

24/7/365 Use

Supported


Power


Power Indicator

Green LED

Power Input

AC 100-240V (50/60 Hz)

Power Consumption

Type/Max.: 600W/660W
Smart Energy Saving: 50W


Accessories

Included Accessories

Remote Control (W/O Battery), AC Power Cable

Optional Accessorries

Mounting Brackets: Wall Mount, Roof Hanging, Floor Stand)


Order
 Information

751500nits Window Facing Digital LCD Monitor Display

ITD75CM-HD01

752000nits Window Facing Digital LCD Monitor Display

ITD75CM-HD02

752500nits Window Facing Digital LCD Monitor Display

ITD75CM-HD03

753000nits Window Facing Digital LCD Monitor Display

ITD75CM-HD04

754000nits Window Facing Digital LCD Monitor Display

ITD75CM-HD05

755000nits Window Facing Digital LCD Monitor Display

ITD75CM-HD06

751500nits Window Facing Digital Android LCD Display

ITD75CM-HDE1

752000nits Window Facing Digital Android LCD Display

ITD75CM-HDE2

752500nits Window Facing Digital Android LCD Display

ITD75CM-HDE3

753000nits Window Facing Digital Android LCD Display

ITD75CM-HDE4

754000nits Window Facing Digital Android LCD Display

ITD75CM-HDE5

755000nits Window Facing Digital Android LCD Display

ITD75CM-HDE6
