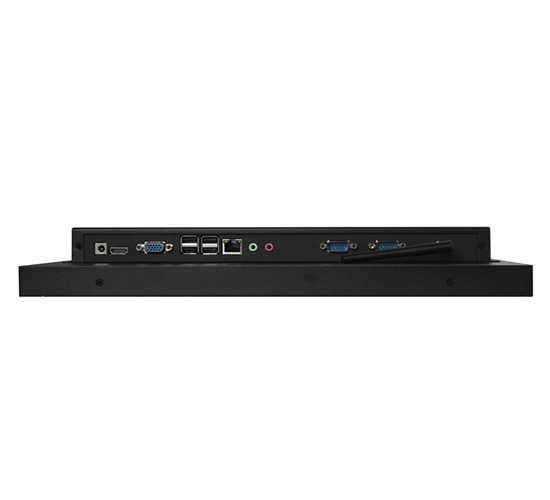

7 inch Chassis High Bright Sunlight Readable Panel PC

Products > Sunlight Readable LCD > High Bright Sunlight Readable Panel PC Chassis Closed Frame > 7 inch Chassis High Bright Sunlight Readable Panel PC

BENEFITES
- Exceptional quality and highly engineered sunlight readable industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- All steel construction designed for harsh & industrial environments
- Easy-to-install VESA(75/100mm) wall mounting
- Optional touchscreens like resistive, IR, SAW, PCAP
- High brightness from 1000nits to 1500nits optional
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial chassis sunlight readable panel PCs is a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD high brightness chassis panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI for indoor, semi-outdoor or outdoor applications.

Chassis High Brightness Panel PC

Model Name

ITD07PPCG1HBL**

IP Rating

IP65 Front Panel Optional

PC Systems Options

ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional)	X86 Based	X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel Celeron J1900/J4125/J6412 2.0GHz	Intel Core i3/i5/i7 (4th~12th Generation optional)
Chipset: Rockchip	Chipset: Intel Bay Trail SoC	Intel SoC Chipset
Memory:Default to 2G, 4G/8G optional	Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM×1(Intel J4125/J6412)	2×DDR3 1333/1600MHz SO-DIMM Slot; DDR4 SODIMM ×2 (8th~12th Gen.)
HDD/SSD:Default to 16G, Max. 128G	Storage: 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD	Storage: 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD
1×HDMI Output; COM optional	1×VGA, 1×HDMI	1×VGA, 1×HDMI
2×USB, Max. 4×USB, 1×USB OTG (optional)	2×USB 2.0, 2×USB3.0, Max. 6	2×USB 2.0, 2×USB3.0, Max. 6
1×TF Card Slot(Supports 8~128G)	2×COM, Max. 6	2×COM, Max. 6
1×LAN	1×LAN, Dual LAN optional	1×LAN, Dual LAN optional
1×Audio Out	1×Realtek ALC662 , 1×Line-Out/MIC In	1×Realtek ALC662 , 1×Line-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions	Windows 7/10, Linux Windows 11(available for J4125/J6412)	Windows 7/10, Linux Windows 11(available for 7th gen. or above)

LCD Panel

Screen Diagonal (Inch)

7”

Display Active Screen Size (cm)

154.214(H)×85.92(V)

Aspect Ratio

16:9

Physical Resolution

1024×600

Maximum Resolution Supported

1920×1080

Colors

262K/16.7M

Brightness (cd/m2)

1000(1500 Optional)

Contrast Ratio

800:1

View Angels

75/75/70/75

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options

Resistive, IR, PCAP, SAW,

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

22W

Order Information

7”1000nits Chassis Panel PC with Resistive Touch, J1900

ITD07PPCT1HBLJ1

7”1000nits Chassis Panel PC with PCAP Touch, J1900

ITD07PPCT5HBLJ1

7”1000nits Chassis Panel PC with IR Touch, J1900

ITD07PPCT2HBLJ1

7”1000nits Chassis Panel PC with Tempered Glass, J1900

ITD07PPCG1HBLJ1

7”1000nits Chassis Panel PC with Resistive Touch, i5

ITD07PPCT1HBLI5

7”1000nits Chassis Panel PC with PCAP Touch, i5

ITD07PPCT5HBLI5

7”1000nits Chassis Panel PC with IR Touch, i5

ITD07PPCT2HBLJ1

7”1000nits Chassis Panel PC with Tempered Glass, i5

ITD07PPCG1HBLI5
