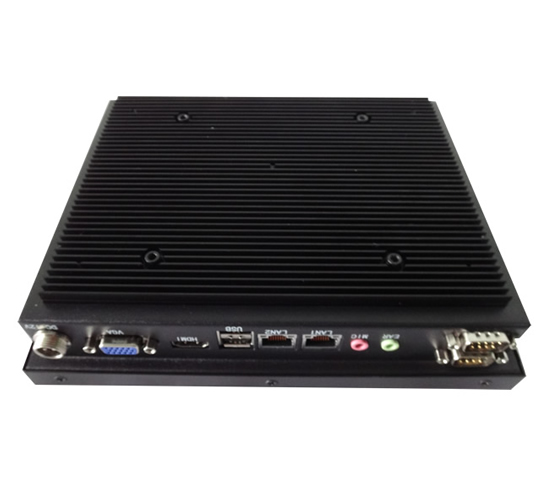

8.4 inch Chassis High Bright Sunlight Readable Panel PC

Products > Sunlight Readable LCD > High Bright Sunlight Readable Panel PC Chassis Closed Frame > 8.4 inch Chassis High Bright Sunlight Readable Panel PC

BENEFITES
- Exceptional quality and highly engineered sunlight readable industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- All steel construction designed for harsh & industrial environments
- Easy-to-install VESA(75/100mm) wall mounting
- Optional touchscreens like resistive, IR, SAW, PCAP
- High brightness from 1000nits to 1500nits optional
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial chassis sunlight readable panel PCs is a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD high brightness chassis panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI for indoor, semi-outdoor or outdoor applications.

Chassis High Brightness Panel PC
Model Name		ITD08PPCG1HBL**
IP Rating		IP65 Front Panel Optional
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel NM10 Express		Chipset: Intel HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		8.4”
Display Active Screen Size (cm)		170.4(H)×127.8(V)
Aspect Ratio		4:3
Physical Resolution		800:600
Maximum Resolution Supported		1920×1080
Colors		262K
Brightness (cd/m2)		1000(1500 Optional)
Contrast Ratio		600:1
View Angels		80/80/70/70
Backlight/Backlight Lifetime		LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW,
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		21W
Order Information
8.4”1000nits Chassis Panel PC with Resistive Touch, J1900		ITD08PPCT1HBLJ1
8.4”1000nits Chassis Panel PC with PCAP Touch, J1900		ITD08PPCT5HBLJ1
8.4”1000nits Chassis Panel PC with IR Touch, J1900		ITD08PPCT2HBLJ1
8.4”1000nits Chassis Panel PC with Tempered Glass, J1900		ITD08PPCG1HBLJ1
8.4”1000nits Chassis Panel PC with Resistive Touch, i5		ITD08PPCT1HBLI5
8.4”1000nits Chassis Panel PC with PCAP Touch, i5		ITD08PPCT5HBLI5
8.4”1000nits Chassis Panel PC with IR Touch, i5		ITD08PPCT2HBLJ1
8.4”1000nits Chassis Panel PC with Tempered Glass, i5		ITD08PPCG1HBLI5
