OVERVIEW
ITD industrial chassispanel PCsis a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection oftechnologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments.ITD chassis panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities whichare ideal for process manufacturing, discrete manufacturing, industrialautomation, process control, building automation, access control, roomreservation, room scheduling, and custom HMI applications.

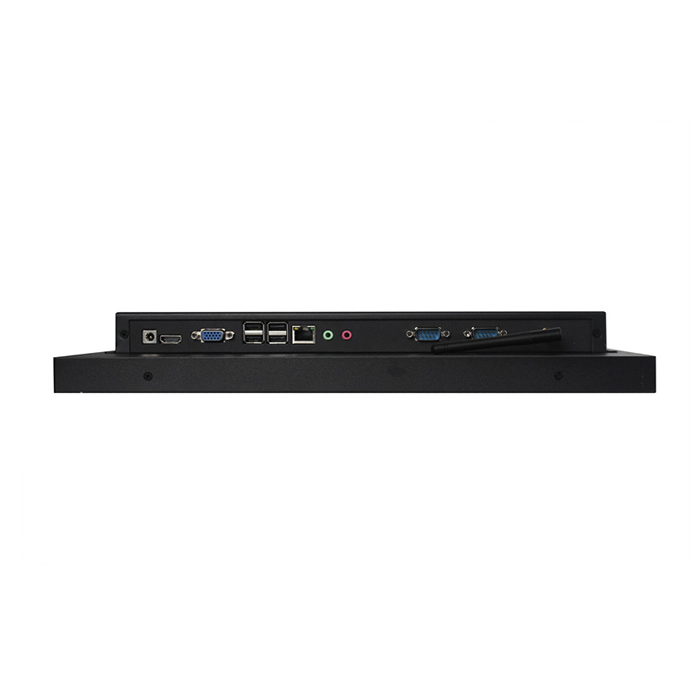

Chassis Panel PC
Model Name		ITD07PPCG1L**
IP Rating		IP65 Front Panel Optional
PC Systems Options
ARM Android Based RK3288(RK3399 optional) X86 Based X86 Based CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/6412 CPU: Intel Core i3/i5/i7 4th~11th Generation Chipset: Rockchip Chipset: Intel Bay Trail SOC Chipset: Intel SoC Graphic: Intel HD Graphics (By CPU) Chipset: Intel HD Graphics (By CPU) Memory: 2G Max. 8GB Memory: 4GB, Max. 8GB/16GB; DDR4 SODIMM x1 Memory: 4GB, Max. 32GB; DDR4 SODIMM x2 HDD/SSD: 8G Max. 64GB Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD 1×HDMI Output 1×VGA, 1×HDMI 1×VGA, 1×HDMI 1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0 1×TF Slot 2×COM(RS232/422/485) 1×COM(RS232/422/485) 1×LAN 1×LAN (Dual LAN optional) 1×LAN (Dual LAN optional) 1×Audio Output 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In 1×COM Expansion: USB, COM, Mini-PCIe, etc. Expansion: USB, COM, Mini-PCIe, etc. OS Support: Android 7.1/8/9/10/11 OS Support: Windows 7/10/11, Linux OS Support: Windows 7/10/11, Linux
LCD Panel
Screen Diagonal (Inch)		7”
Display Active Screen Size (cm)		154.214(H)×85.92(V)
Aspect Ratio		16:9
Physical Resolution		1024×600
Maximum Resolution Supported		1920×1080
Colors		262K/16.7M
Brightness (cd/m2)		400
Contrast Ratio		800:1
View Angels		75/75/70/75
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°COptional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		21.625W
Order Information
7”ChassisPanel PC with Resistive Touch, J1900		ITD07PPCT1LJ1
7”Chassis Panel PC with PCAP Touch, J1900		ITD07PPCT5LJ1
7”Chassis Panel PC with IR Touch, J1900		ITD07PPCT2LJ1
7”Chassis Panel PC with Tempered Glass, J1900		ITD07PPCG1LJ1
7”Chassis Panel PC with Resistive Touch, i5		ITD07PPCT1LI5
7”Chassis Panel PC with PCAP Touch, i5		ITD07PPCT5LI5
7”Chassis Panel PC with IR Touch, i5		ITD07PPCT2LJ1
7”Chassis Panel PC with Tempered Glass, i5		ITD07PPCG1LI5
