Products > Digital Signage > Outdoor All Weatherproof LCD Digital Signage  >  75 inch Full IP65 Outdoor All Weatherproof Wall Mounted Digital Signage

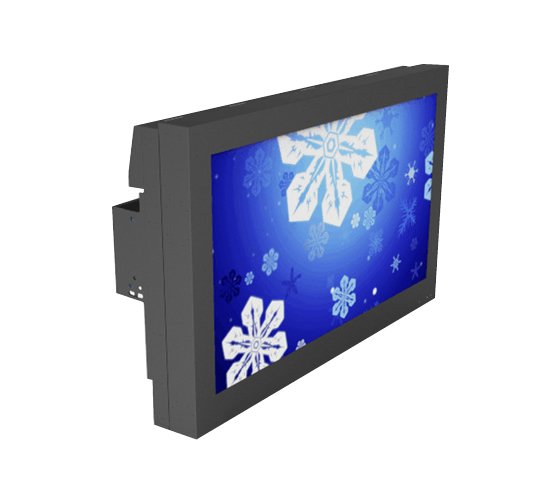

75 inch Full IP65 Outdoor All Weatherproof Wall Mounted Digital Signage
BENEFITES
- Exceptional quality and commercial-grade outdoor reliability and performance
- Eco-friendly, Energy-Efficient LED Backlight Technology
- Designed with robust, corrosion protected casing to protect against the elements and the public
- IP65 rated protecting from any wet weather conditions and waterproof over-molded connectors
- High brightness from 1500nits to 2500nits allowing effortless legibility in direct sunlight
- AR/AG Tempered glass fitted on front for vandal proof and optimum clarity
- Ultra wide operation temperature range -25¡æ~55¡æ or -45¡æ~55¡æ supported
- Equipped with internal air-conditioning or fan-cooling system ensuring a long and reliable lifespan
- Landscape and Portrait mode wall-mounted flexibility
- Pre-installed CMS management system for network version
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD outdoor all weatherproof wall-mounted digital signage display boasts a range of unique features perfect for outdoor digital signage with high brightness, protective glass, IP65 verified, tamperproof, commercial grade, temperature control and choice of media players including single SD card and USB port plug and play media player, ARM based player and x86 based player integrated. The ITD outdoor digital signage displays are fitted with commercial grade panels providing them with a wide viewing angle, improved color, contrast and brightness as well as the ability to be used 24 hours a day. With an eco-friendly power timer you can be assured of their green credentials and low operating costs. The ITD outdoor display also has an ambient light sensor that will automatically alter the screens brightness based on the displays surrounding light levels leaving the screen with the best clarity whilst also conserving energy. Anti-reflective/ anti-glare tempered glass also comes as standard. ITD outdoor digital signage can display message in heat, cold, rain, snow and dust empowering to always present a dynamic and vibrant message.


Outdoor Wall-Mounted Digital Signage LCD Display

Model Name

ITD75CMAIPW****

IP Rating

IP65


Single Media Player/Monitor Option



1 ¡ÁUSB 2.0, 1¡ÁSD Card Slot

Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV

Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE

Picture Formats Supported: JPEG, BMP, GIF, PNG

File Formats Supported: FAT, FAT32, NTFS

1 ¡ÁHDMI Input

1¡ÁTV Port(Optional)

1¡ÁUSB Port(Touch Version),


PC Systems Options



ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel NM10 Express

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁUSB 2.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡Ámini-SD slot

1¡ÁCOM(RS232/422/485)

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁLAN

1¡ÁLAN

1¡ÁAudio Out

1¡ÁAudio Out, 1¡ÁMIC In

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe


LCD Panel



Screen Diagonal (Inch)

75¡±

Display Active Screen Size (cm)

1650.24(H)¡Á928.26(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

2000 cd/m2

Contrast Ratio

4000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'Lifetime


Touch Panel Available for Network Version



Touch Options

IR, PCAP, Touch Foil

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-20~55¡ãC(Fan-Cooling);  -40~55¡ãC (Air Condition Built-in)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power /Speakers



Power Indicator

Green LED

Power Input

Internal Power Supply, AC 100V~240V

Power Consumption

Speakers

320W

2¡Á5W


Order Information



75¡±Outdoor Wall-Mounted Single DS with Aircon, AG Glass

ITD75CMAIPWG3A1

75¡±Outdoor Wall-Mounted Single DS with Fan-Cooling, AG Glass

ITD75CMFIPWG3A1

75¡±Outdoor Wall-Mounted Android DS with Aircon, AG Glass

ITD75CMAIPWG3E1

75¡±Outdoor Wall-Mounted Android DS with Fan-Cooling, AG Glass

ITD75CMFIPWG3E1

75¡±Outdoor Wall-Mounted Windows J1900 DS with Aircon, AG Glass

ITD75CMAIPWG3J1

75¡±Outdoor Wall-,,,,,,Mounted Windows J1900 DS with Fan-Cooling, AG Glass

ITD75CMFIPWG3J1

75¡±Outdoor Wall-Mounted Windows i3 DS with Aircon, AG Glass

ITD75CMAIPWG3I3

75¡±Outdoor Wall-Mounted Windows i3 DS with Fan-Cooling, AG Glass

ITD75CMFIPWG3I3

75¡±Outdoor Wall-Mounted Monitor DS with HDMI, Aircon, Touch Foil

ITD75CMAIPWT701

75¡±Outdoor Wall-Mounted Monitor DS with HDMI, Fan-Cooling, Touch Foil

ITD75CMFIPWT701

75¡±Outdoor Wall-Mounted Android DS with Aircon, Touch Foil

ITD75CMAIPWT7E1

75¡±Outdoor Wall-Mounted Android DS with Fan-Cooling, Touch Foil

ITD75CMFIPWT7E1

75¡±Outdoor Wall-Mounted Windows J1900 DS with Aircon, Touch Foil

ITD75CMAIPWT7J1

75¡±Outdoor Wall-Mounted Windows J1900 DS with Fan-Cooling, Touch Foil

ITD75CMFIPWT7J1

75¡±Outdoor Wall-Mounted Windows i3 DS with Aircon, Touch Foil

ITD75CMAIPWT7I3

75¡±Outdoor Wall-Mounted Windows i3 DS with Fan-Cooling, Touch Foil

ITD75CMFIPWT7I3
