7 inch High Brightness Full IP66 Rugged Stainless Steel Panel PC

Products > Sunlight Readable LCD > Sunlight Readable Full IP65 IP66 Panel Pc > 7 inch High Brightness Full IP66 Rugged Stainless Steel Panel PC

BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65, IP66 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures with cooling fin
- IP66 sealed, Full IP66 I/O connectors protect from any particles, water, and corrosive agents
- Easy-to-install VESA(75/100mm) wall mounting
- Optional touchscreens like resistive and PCAP
- High brightness from 1000nits to 1500nits optional
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial full IP66 sunlight readable touch panel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP66 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD sunlight readable full IP65 touch panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for harsh environments of process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI for semi-outdoor/outdoor applications.

High Brightness Full IP65/IP66 Panel PC

Model Name

ITD07PPCG1IPHB**

IP Rating

IP65/IP66(IP67 optional)

PC Systems Options

ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional)	X86 Based	X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel Celeron J1900/J4125/J6412 2.0GHz	Intel Core i3/i5/i7 (4th~12th Generation optional)
Chipset: Rockchip	Chipset: Intel Bay Trail SoC	Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional	Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM×1(Intel J4125/J6412)	2×DDR3 1333/1600MHz SO-DIMM Slot; DDR4 SODIMM ×2 (8th~12th Gen.)
HDD/SSD: Default to 16G, Max. 128G	Storage: 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD	Storage: 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD
1×HDMI Output; COM optional	1×VGA, 1×HDMI	1×VGA, 1×HDMI
2×USB, Max. 4×USB, 1×USB OTG (optional)	2×USB 2.0, 2×USB3.0, Max. 6	2×USB 2.0, 2×USB3.0, Max. 6
1×TF Card Slot(Supports 8~128G)	2×COM, Max. 6	2×COM, Max. 6
1×LAN	1×LAN, Dual LAN optional	1×LAN, Dual LAN optional
1×Audio Out	1×Realtek ALC662 , 1×Line-Out/MIC In	1×Realtek ALC662 , 1×Line-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions	Windows 7/10, Linux Windows 11(available for J4125/J6412)	Windows 7/10, Linux Windows 11(available for 7th gen. or above)

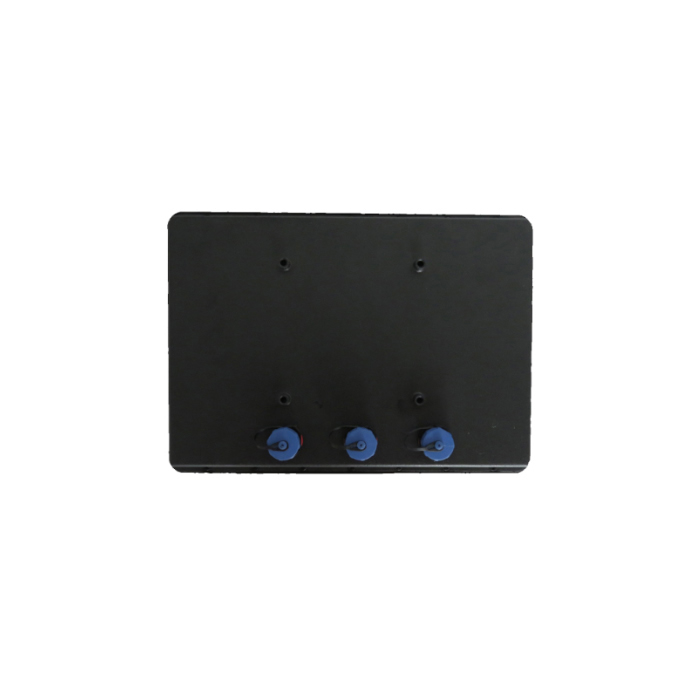

Default Waterproof Connectors:?2×USB 2.0, 1×LAN, 1×DC

LCD Panel

Screen Diagonal (Inch/cm)

7”

Display Active Screen Size (mm)

156.6(H) x 81.6(V)mm

Aspect Ratio

16:9

Physical Resolution

1024 x 768

Maximum Resolution Supported

1920 x 1080

Colors

16.7M

Brightness (cd/m2)

1000nits

Contrast Ratio

800:1

View Angels

75/75/70/75

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range

-10~60°C

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V (DC9-36V optional)

Power Consumption

25W

Order Information

7”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, Android

ITD07PPCT1IPHBSE2

7”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, Android

ITD07PPCT5IPHBSE2

7”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, Android

ITD07PPCG1IPHBSE2

7”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, J1900

ITD07PPCT1IPHBSJ2

7”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, J1900

ITD07PPCT5IPHBSJ2

7”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, J1900

ITD07PPCG1IPHBSJ2

7”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i3

ITD07PPCT1IPHBSI3

7”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i3

ITD07PPCT5IPHBSI3

7”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i3

ITD07PPCG1IPHBSI3

7”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i5

ITD07PPCT1IPHBSI5

7”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i5

ITD07PPCT5IPHBSI5

7”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i5

ITD07PPCG1IPHBSI5

7”1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, Android

ITD07PPCT1IPHBAE2

7”1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, Android

ITD07PPCT5IPHBAE2

7”1000nits Full IP65/IP66 Aluminum Panel PC with Tempered Glass, Android

ITD07PPCG1IPHBAE2

7”1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, J1900

ITD07PPCT1IPHBAJ2

7”1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, J1900

ITD07PPCT5IPHBAJ2

7”1000nits Full IP65/IP66 Aluminum Panel PC with Tempered Glass, J1900

ITD07PPCG1IPHBAJ2

7”1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, i3

ITD07PPCT1IPHBAI3

7”1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, i3

ITD07PPCT5IPHBAI3

7”1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, i5

ITD07PPCT1IPHBAI5

7”1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, i5

ITD07PPCT5IPHBAI5
