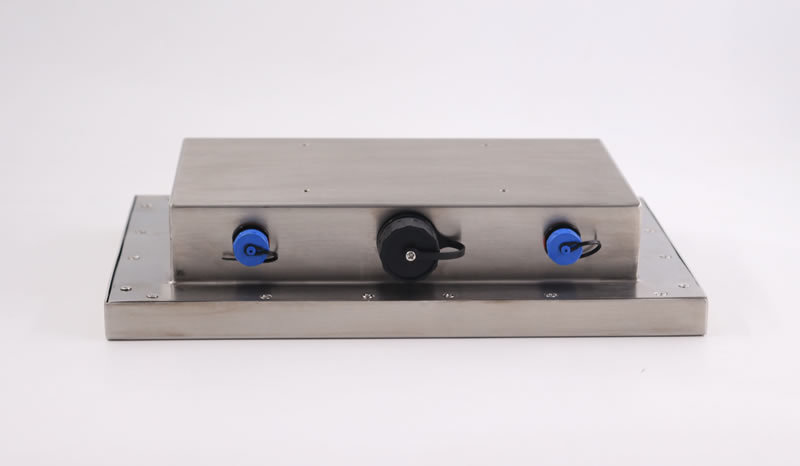

8 inch High Brightness Full IP66 Rugged Stainless Steel Panel PC
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65, IP66 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures with cooling fin
- IP66 sealed, Full IP66 I/O connectors protect from any particles, water, and corrosive agents
- Easy-to-install VESA(85/100mm) wall mounting
- Optional touchscreens like resistive and PCAP
- High brightness from 1000nits to 1500nits optional
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial full IP66 sunlight readable touch panel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP66 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD sunlight readable full IP65 touch panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for harsh environments of process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI for semi-outdoor/outdoor applications.



High Brightness Full IP65/IP66 Panel PC

Model Name

ITD08PPCG1IPHB**

IP Rating

IP65/IP66(IP68 optional)


PC Systems Options

ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A18 1.8GHz

CPU: Intel? Celeron J1900

CPU: Intel Core i3/i5/i8

Chipset: N/A

Chipset: Intel? NM10 Express

Chipset: Intel? HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁUSB 2.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡Ámini-SD slot

1¡ÁCOM(RS232/422/485)

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁLAN

1¡ÁLAN

1¡ÁAudio Out

1¡ÁAudio Out, 1¡ÁMIC In

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe

Default Waterproof Connectors:  2¡ÁUSB 2.0, 1¡ÁLAN, 1¡ÁDC


LCD Panel

Screen Diagonal (Inch/cm)

8¡±

Display Active Screen Size (mm)

162.0(H) x 121.5(V)mm

Aspect Ratio

4:3

Physical Resolution

1024 x 868

Maximum Resolution Supported

1920 x 1080

Colors

262K/16.8M

Brightness (cd/m2)

1000nits

Contrast Ratio

800:1

View Angels

85/85/85/85

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC

Humidity Range (RH)

10-90%

24/8/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V (DC9-36V optional)

Power Consumption

20W


Order Information

8¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, Android

ITD08PPCT1IPHBSE2

8¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, Android

ITD08PPCT5IPHBSE2

8¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, Android

ITD08PPCG1IPHBSE2

8¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, J1900

ITD08PPCT1IPHBSJ2

8¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, J1900

ITD08PPCT5IPHBSJ2

8¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, J1900

ITD08PPCG1IPHBSJ2

8¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i3

ITD08PPCT1IPHBSI3

8¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i3

ITD08PPCT5IPHBSI3

8¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i3

ITD08PPCG1IPHBSI3

8¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i5

ITD08PPCT1IPHBSI5

8¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i5

ITD08PPCT5IPHBSI5

8¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i5

ITD08PPCG1IPHBSI5

8¡±1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, Android

ITD08PPCT1IPHBAE2

8¡±1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, Android

ITD08PPCT5IPHBAE2

8¡±1000nits Full IP65/IP66 Aluminum Panel PC with Tempered Glass, Android

ITD08PPCG1IPHBAE2

8¡±1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, J1900

ITD08PPCT1IPHBAJ2

8¡±1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, J1900

ITD08PPCT5IPHBAJ2

8¡±1000nits Full IP65/IP66 Aluminum Panel PC with Tempered Glass, J1900

ITD08PPCG1IPHBAJ2

8¡±1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, i3

ITD08PPCT1IPHBAI3

8¡±1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, i3

ITD08PPCT5IPHBAI3

8¡±1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, i5

ITD08PPCT1IPHBAI5

8¡±1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, i5

ITD08PPCT5IPHBAI5
