OVERVIEW
ITD industrial panel mount LCD displays are engineered to deliver outstanding reliability, durability, and an extended product life cycle for demanding industrial applications. Featuring a rugged all-steel enclosure and a robust aluminum alloy front bezel these displays are designed to withstand harsh operating environments.
The NEMA 4 / IP65-rated front panel, combined with a highly durable glass front surface, ensures excellent protection against dust, water, and industrial contaminants. A new mechanical design integrated with PCAP or resistive touch technology creates a true flat, easy-to-clean front surface, making the displays especially suitable for hygiene-critical and high-use environments. With support for VGA and HDMI interfaces, flexible power input options, and multiple mounting configurations, ITD industrial panel mount LCD monitors offer seamless system integration and installation flexibility. Their long-lasting product cycle ensures continuity throughout all phases of industrial projects. These displays are an ideal solution for system integrators, kiosks, process control, food processing equipment, machine control, HMI applications, industrial and factory automation, in-vehicle systems, and marine environments.

Panel Mount Touch Screen Monitor
Model Name	ITD07PMT5X1_V2
IP Rating	IP65 Front Panel
LCD Panel
Screen Diagonal (Inch)	7”
Display Active Screen Size (mm)	154.214(H)×85.92(V)
Aspect Ratio	16:9
Physical Resolution	1024×600
Pixel Pitch(mm)	0.1506×0.1432
Colors	262K/16.7M
Brightness (cd/m2)	400 (500~1000 optional)
Response Time	30ms
Contrast Ratio	800:1
View Angels	75/75/70/75
Backlight/Backlight Lifetime	LED Backlight with 30000Hours'Lifetime
Touch Panel
Touch Options	PCAP, Resistive
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi

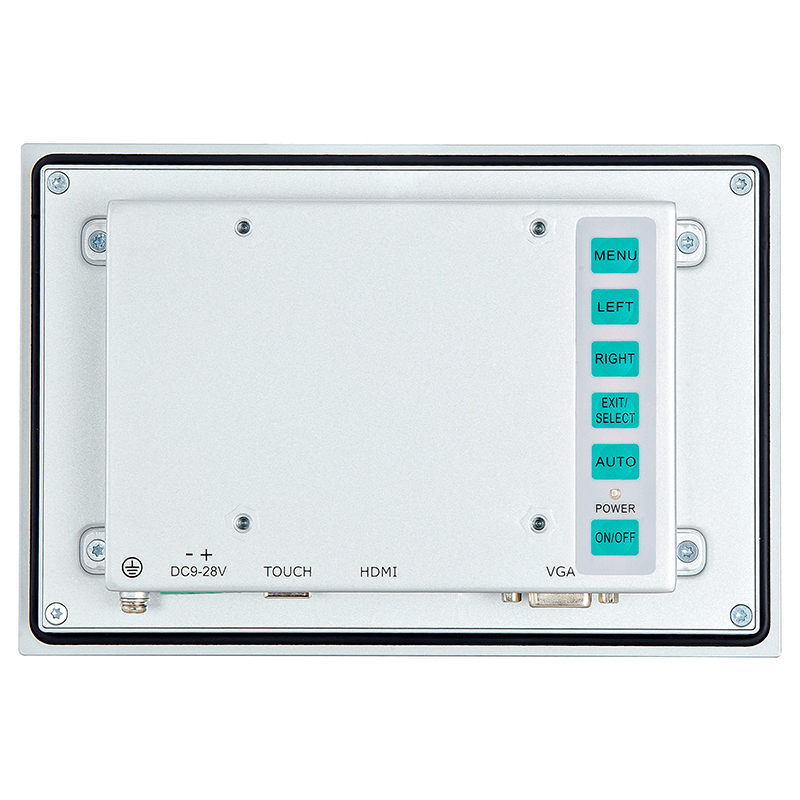

Input / Output
Video Input	1 × VGA
	1 × DVI-I, 1 × Display Port(optional)
	1 × HDMI
Audio	1 × PC-Audio
Touch Connector	1 × USB
Power Connector	1 × Phoenix Connector
Operation
Operating Temperature Range	-10~60°C (-20~70°C Optional)
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC9~28V input
Power Consumption	8.75W
Order Information
7”Panel Mount LCD Monitor with Resistive Touch	ITD07PMT1X1_V2
7”Panel Mount LCD Monitor with PCAP Touch	ITD07PMT5X1_V2
7”Panel Mount LCD Monitor with Tempered Glass	ITD07PMG1X1_V2
7”1000nits Panel Mount LCD Monitor with Resistive Touch	ITD07PMT1HBX2_V2
7”1000nits Panel Mount LCD Monitor with PCAP Touch	ITD07PMT5HBX2_V2
7”1000nits Panel Mount LCD Monitor with Tempered Glass	ITD07PMG1HBX2_V2
