27 inch Industrial HMI Touch Screen Panel PC

Products > Industrial Panel PCs > Industrial HMI Touch Panel PCs > 27 inch Industrial HMI Touch Screen Panel PC

BENEFITES

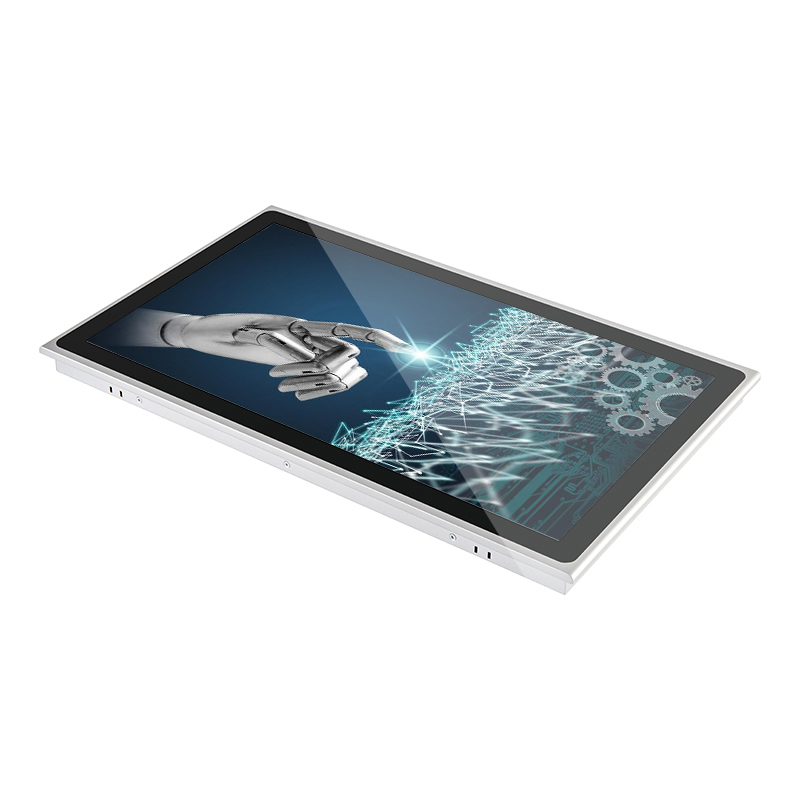

- Extra-Large Industrial Display: 27-inch LCD with 1920 × 1080 resolution, providing a broad interface for HMI applications, data visualization, and multi-window operation.
- High-Performance Computing: Supports Intel? J6412, N97, and 4th–12th Gen U-Series Core? i3/i5/i7 processors, delivering robust performance for complex industrial applications.

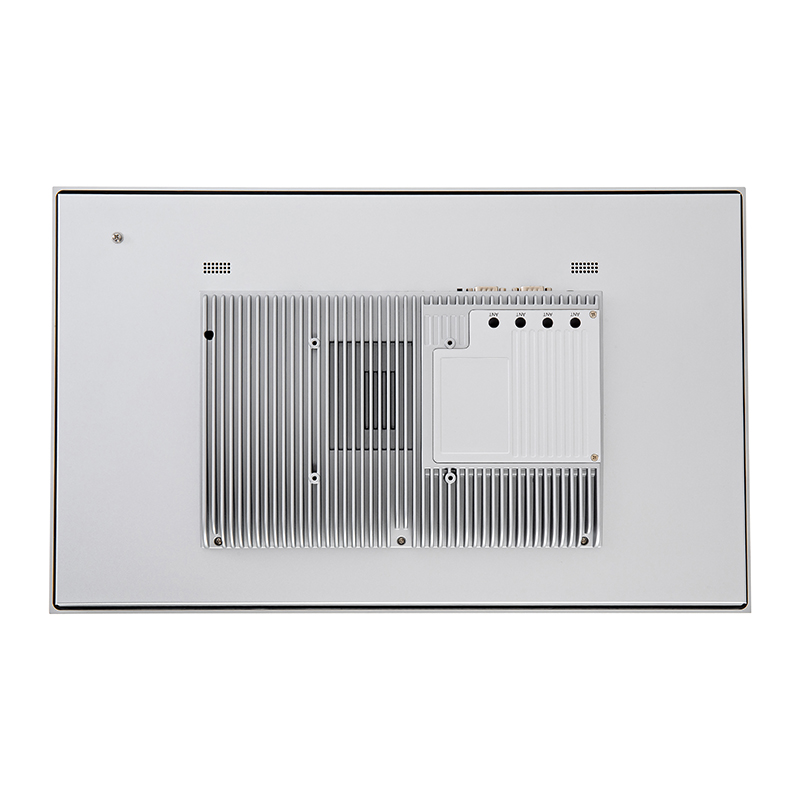

- Rugged Fanless Construction: True-flat IP65-rated front panel and aluminum alloy chassis ensure protection against dust, water, and mechanical stress; fanless design offers silent, low-maintenance operation.
- Flexible Power and Mounting Options: Wide 9–36 V DC input with AT/ATX selection; supports panel, VESA, or custom mounting for diverse industrial installations.
- Comprehensive I/O Connectivity: 4×USB 3.0 and 2×USB 2.0 ports, 2× DB-9 COM ports (RS-232/485), HDMI output, audio line-out/mic-in, Phoenix remote switch interface, and AT/ATX power control.
- Industrial Reliability: Designed for continuous operation in harsh environments, with wide operating temperature support, fanless low-power design, and durable construction suitable for factories, control rooms, and industrial kiosks.

OVERVIEW
Equipped with Intel? J6412, N97, or 4th–12th Gen U-Series Core? processors, it delivers powerful computing performance in a fanless, energy-efficient design. The 27-inch widescreen display offers full-HD resolution, providing an expansive interface for multi-window dashboards, complex machine control panels, and interactive data visualization.

Industrial HMI Touch Panel PC

Model Name

ITD27PPCT5B-xxxx

IP Rating

IP65 Front Panel

PC Systems Options

X86 Based
CPU: Intel Celeron J6412/N97

Chipset: Intel Elkhart Lake

Memory: J6412/N97: 1 × DDR4 SODIMM, Max.16GB

Storage: 1 × M.2 2280 SSD (SATA/ NVMe), 1 × SATA (2.5” SATA)
I/O: 2 × 2.5 GbE RJ45 Intel? i225V

4 × USB3.0, 2 × USB2.0
2 × DB-9 COM1&COM2, RS-232/485
1 × Audio Line-out/Mic-in
2 × 8Ω 1W Audio AMP out (Optional)
1 × Remote Switch Phoenix
1 × AT/ATX Switch
1 × HDMI
1 × IDOOR (2×LAN / 4×COM / 14×GPIO Optional) Expansion: Mini-PCIe×1 Full-size, Supports
WiFi/Bluetooth/4G(J1900) M.2 2230×1 (N97.J6412)

X86 Based

CPU: lntel Core 4th~12th Generation-U i3/i5/i7

Chipset: Intel SoC

Memory: DDR4 SODIMM×2

Storage: 1 × M.2 2280 SSD (SATA/NVMe), 1 × SATA (2.5” SATA)

I/O: 2 × GbE RJ45 Intel i210-AT
4 × USB3.0, 2 × USB2.0

2 × DB-9 COM1&COM2, RS-232/485

1 × Audio Line-out/Mic-in

2 × 8Ω 1W Audio AMP out (Optional)

1 × Remote Switch Phoenix
1 × AT/ATX Switch
1 × HDMI
1 × iDOOR (2×LAN / 4×COM / 14×GPIO Optional)

Expansion: Mini-PCle × 1 Full-size with SIM Card for 3G/4G
M.2 Key E × 1 for WIFI/BT; M.2 Key B × 1 for 5G

LCD Panel

Screen Diagonal (Inch)

27”

Display Active Screen Size (cm)

597.888(W)×336.312(H) mm

Aspect Ratio

16:9

Physical Resolution

1920×1080

Maximum Resolution Supported

1920×1080

Colors

16.7M

Brightness (cd/m2)

300

Contrast Ratio

1000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 30000Hours'Lifetime

Touch Panel

Touch Options

Projected Capacitive Touch Panel

Touch Drivers

Windows 7/8/10/11, Linux, Android, Mac

Operation

Operating Temperature Range

-10~60°C

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC12V (DC 9-36V optional)

Power Consumption

40W

Order Information

27” Industrial HMI PCAP Touch Panel PC with N97

ITD27PPCT5B-N97

27” Industrial HMI Resistive Touch Panel PC with N97

ITD27PPCT1B-M97

27” Industrial HMI PCAP Touch Panel PC with J6412

ITD27PPCT5B-J6412

27” Industrial HMI Resistive Touch Panel PC with J6412

ITD27PPCT1B-J6412

27” Industrial HMI PCAP Touch Panel PC with i5-4210U

ITD27PPCT5B-4210U

27” Industrial HMI Resistive Touch Panel PC with i3-5005U

ITD27PPCT1B-5005U

27” Industrial HMI PCAP Touch Panel PC with i5-6300U

ITD27PPCT5B-6300U

27” Industrial HMI Resistive Touch Panel PC with i5-7200U

ITD27PPCT1B-7200U

27” Industrial HMI PCAP Touch Panel PC with i7-7500U

ITD27PPCT5B-7500U

27” Industrial HMI Resistive Touch Panel PC with i5-8250U

ITD27PPCT1B-8250U

27” Industrial HMI PCAP Touch Panel PC with i3-1115G4

ITD27PPCT5B-1115G4

27” Industrial HMI Resistive Touch Panel PC with i5-1135G7

ITD27PPCT1B-1135G7

27” Industrial HMI PCAP Touch Panel PC with i3-1215U

ITD27PPCT5B-1215U

27” Industrial HMI Resistive Touch Panel PC with i5-1235U

ITD27PPCT1B-1235U

27” Industrial HMI Resistive Touch Panel PC with i7-1255U

ITD27PPCT1B-1255U
