OVERVIEW
An Industrial DIN Rail Embedded Box PC by ITD are mid-sized embedded box PCs, designed for edge computing, machine vision and other industrial applications. They offer a wide range of I/O ports including LAN, USB, COM, Audio, Video, and GPIO. With rich I/O and expansion options, these fanlesss computers can power a stand-alone piece of equipment, run demanding software applications, or be embedded into a greater digital platform as powerful IoT hubs and offers a few key advantages over traditional, actively cooled systems. Our fanless, solid state mini PCs leverage advanced passive cooling technology that enable cooling without a fan and without vents. They also utilize SSD storage, making for reliable, totally silent computers with no moving parts. DIN rail Fanless box PCs are more resistant to vibration and they excel in dirty and dusty environments especially for rail transportation.

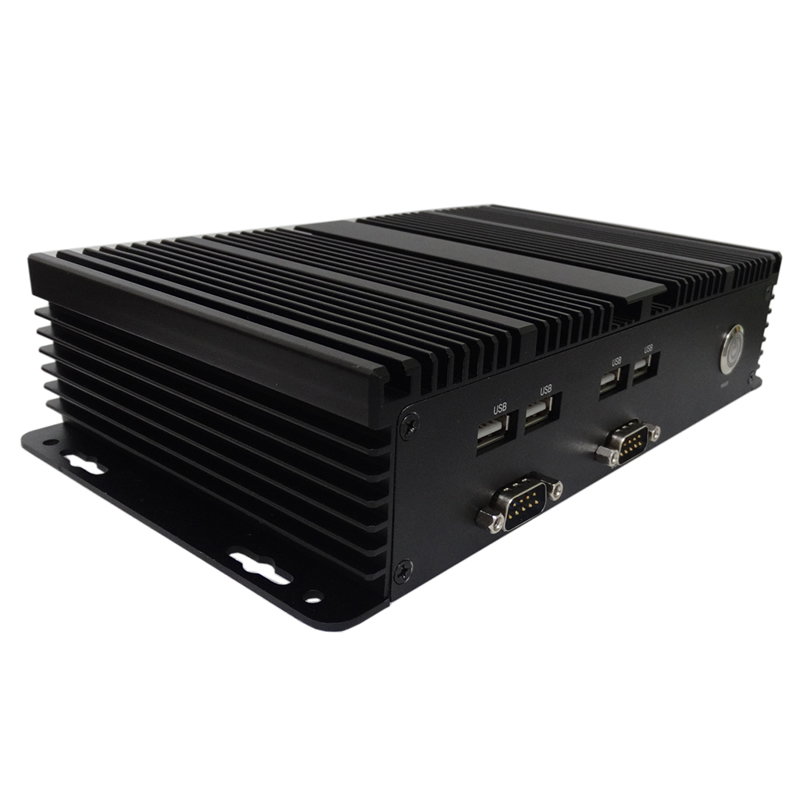

DIN RAIL Industrial Fanless Embedded Box PC
Model Name	ITD-MNPC-xxxx-EPIC02
IP Rating	IP40
PC Systems
CPU	Dedicated Soldered Onboard J1900/N5905 or 4th/6th/7th Generation CPU
Chipset	Intel SoC
Graphic	Intel HD Graphics
Memory	DDR3 Default 4GB
Storage Disk Driver	1 x mSATA 1 x SATA 3.0
Driver Support	Windows7/Windows10/Windows 11, Linux
I/O
Serial Ports	2 × COM
USB Ports	5 × USB2.0, 1 x USB3.0
HDMI Port	1 × HDMI Output
VGA Port	1 × VGA Output
Audio	1 × MIC IN & LINE OUT
Ethernet	2 × 2.5GbE RJ45 10/100/1000Mbps
Power Port	1 × DC 12V
Wireless	2 × Antenna Aperture (Support WIFI or 4G)
Power Switch	1 × Power Indicator Switch
Power
Power Indicator	Yes
Power Input	DC 12V or DC9~36
Power Consumption	TBA
Operation/Mechanical
Operating Temperature	0~60℃
Storage Temperature	-40~75℃
Humidity Range	0%~90%  @30℃ Non Condensing
Vibration	5-17Hz/1.0mm amplitude, 17- 200Hz/1.0g acceleration
Shock	10g acceleration, 11ms duration
Housing Material	Aluminum Die-Casting
Housing Dimension (L × W × H)	138mm × 125mm × 45mm
Net Weight	1kg
DIN-Rail Mounting Bracket	Included
Order Information
Industrial DIN-RAIL Box PC with Intel Celeron J1900	ITD-MNPC-J1900-EPIC02
Industrial DIN-RAIL Box PC with Intel Celeron N5095	ITD-MNPC-N5095-EPIC02
Industrial DIN-RAIL Box PC with Intel Celeron J6412	ITD-MNPC-J6412-EPIC02
Industrial DIN-RAIL Box PC with Intel Celeron N2840	ITD-MNPC-N2840-EPIC02
