FEATURES
- Equipped with an onboard Intel? Celeron? or 12th/13th Gen Intel? Core? i5/i7 CPU, delivering high performance and efficiency for demanding applications.
- Features 2 x DDR5 SODIMM slots, supporting up to 64GB of RAM for seamless multitasking and enhanced system responsiveness.
- Includes 6 x RS-232 COM ports, with 4 ports supporting RS-485/RS-422 for flexible industrial communication needs.
- Equipped with 2 x Intel i225V 2.5G Ethernet ports for high-speed network connectivity and reliable data transfer.
- Supports a wide DC input range of 9V to 36V, ensuring compatibility with various power sources and stable operation in diverse environments.
- Designed for fanless operation, providing silent performance, reduced maintenance, and increased reliability in harsh or dusty conditions.

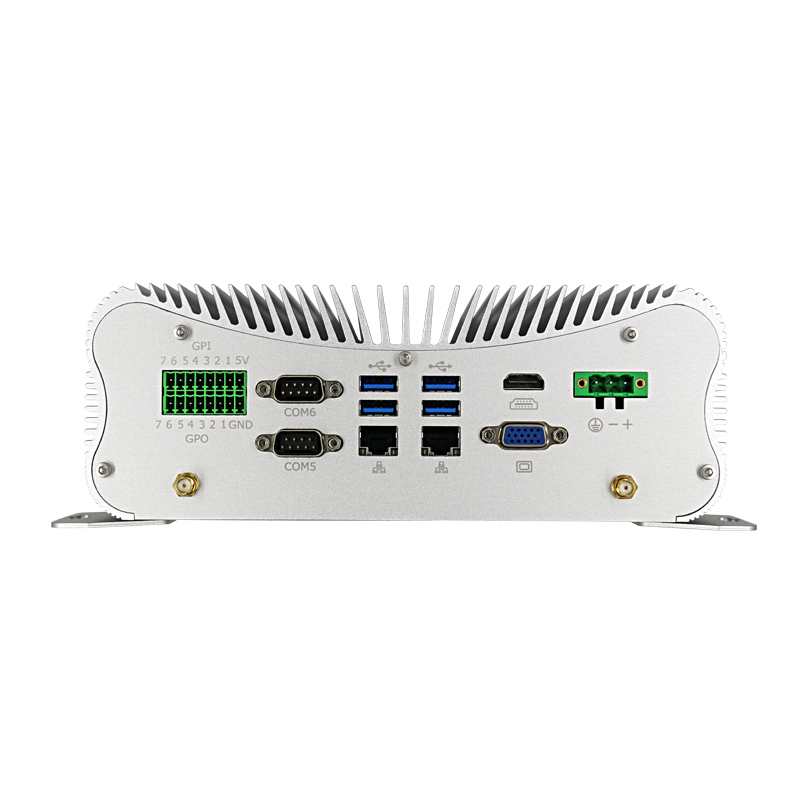

Industrial Embedded Computer Box Raptor Lake | |
| Model Name | ITD-MNPC-xxxxU-ADL |
| IP Rating | IP40 |
PC Systems | |
| CPU | Onboard Intel Celeron i5/i7 12th/13th CPU |
| Chipset | Intel SoC |
| Graphic | Intel Iris Xe Graphics eligible |
| Memory | DDR5 SODIMM x2£¬Up to 64GB |
| Storage Disk Driver | 1 x mSATA 1 x M.2 NVME 2280 1 x HDD/SSD |
| Driver Support | Windows 10, Windows 11, Linux |
I/O | |
| Serial Ports | 6 ¡Á RS-232 COM (4¡ÁRS485/RS442) |
| USB Ports | 4 ¡Á USB3.0, 2 ¡Á USB2.0 |
| HDMI Port | 1 ¡Á HDMI Output |
| VGA Port | 1 ¡Á VGA Output |
| DP Port | 1 ¡Á ATX/AT |
| PS2 | 1 ¡Á PS2 |
| GPIO | 14 ¡ÁGPIO(7 input, 7 output) |
| Audio | 1 ¡Á Auddio & MIC IN |
| Ethernet | 2 ¡Á RJ45 10/100/1000Mbps Intel i225V |
| Power Port | 1 ¡ÁDC 9 ~ 36V 4-pin aviation connector, 9-36 DC input |
| Wireless | 2 ¡Á Antenna Aperture (Support WIFI or 4G) |
| Power Switch | 1 ¡Á Power Button, 1 ¡Á Reset Button, 1 ¡Á Clear CMOS Button |
| Expansion Slot | Mini-PCIe¡Á1 half size for WIFI/BLT Mini-PCIe¡Á1 full size with SIM Card for 3G/4G |
Power | |
| Power Indicator | Yes |
| Power Input | DC9~36 |
| Power Consumption | TBA |
Operation/Mechanical | |
| Operating Temperature | -20~60¡æ |
| Storage Temperature | -30~70¡æ |
| Humidity Range | 10%~90% @30¡æ Non Condensing |
| Vibration | 5-17Hz/1.0mm amplitude, 17- 200Hz/1.0g acceleration |
| Shock | 10g acceleration, 11ms duration |
| Housing Material | Aluminum Die-Casting |
| Housing Dimension (L ¡Á W ¡Á H) | 249mm ¡Á 150mm ¡Á 86mm |
| Net Weight | 2.2kg |
| Mounting | Desktop, Wall-Mounting |
Order Information | |
| Industrial Embedded Computer with Intel I5-1235U | ITD-MNPC-1235U-ADL |
| Industrial Embedded Computer with Intel I7-1255U | ITD-MNPC-1255U-ADL |
| Industrial Embedded Computer with Intel I5-1335U | ITD-MNPC-1335U-ADL |
| Industrial Embedded Computer with Intel I7-1355U | ITD-MNPC-1355U-ADL |
