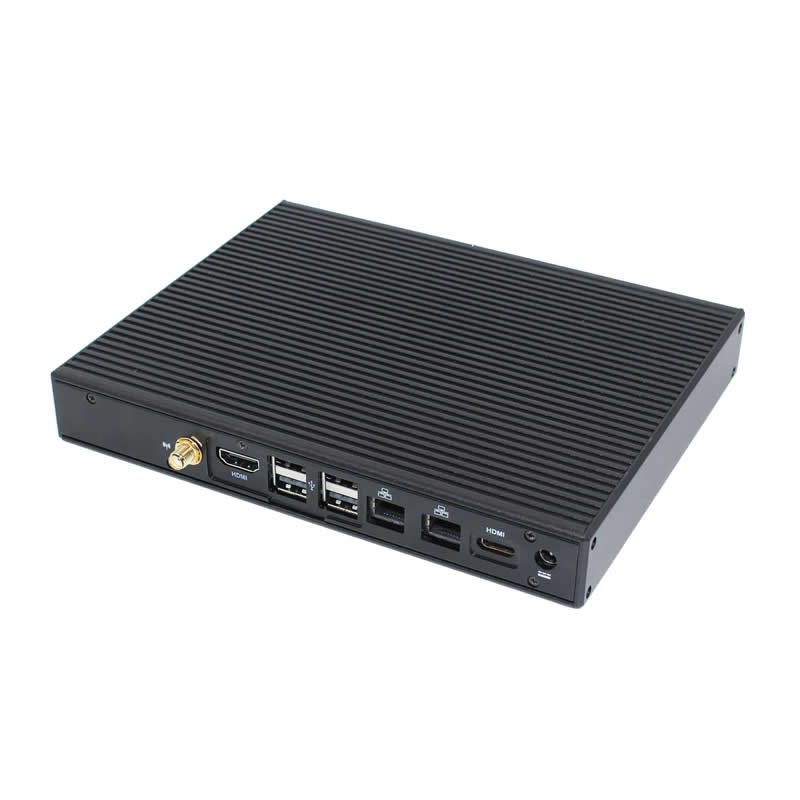

Industrial DIN Rail Embedded Box PC I3I5I7
BENEFITES
- IoT gateway ready for future requirements
- Energy-efficient and fan-less IPC Systems
- Intel Haswell /Broadwell U-series Processor
- DDR3L SO-DIMM up to 8GB
- mini-HDMIHDMI
- SATA3.0, M-SATA
- 2 x USB3.0, 4 x USB2.0, miniPCIe
- 12V/19V DC_IN
- Maintenance-free with no rotating disk (HDD)
- Interface of remote control for ON/OFF
- Robust aluminum die-casting housing
- High system availability and data security
- High data transfer rates and redundancy
- CE, FCC, RoHS Compliance
OVERVIEW
An Industrial DIN Rail Embedded Box PC by ITD are mid-sized embedded box PCs, designed for edge computing, machine vision and other industrial applications. They offer a wide range of I/O ports including LAN, USB, COM, Audio, Video, and GPIO. With rich I/O and expansion options, these fanlesss computers can power a stand-alone piece of equipment, run demanding software applications, or be embedded into a greater digital platform as powerful IoT hubs and offers a few key advantages over traditional, actively cooled systems. Our fanless, solid state mini PCs leverage advanced passive cooling technology that enable cooling without a fan and without vents. They also utilize SSD storage, making for reliable, totally silent computers with no moving parts. DIN rail Fanless box PCs are more resistant to vibration and they excel in dirty and dusty environments especially for rail transportation.


Industrial Fanless Embedded Box PC

Model Name ITD-MNPC-5612
IP Rating N/A

PC Systems

CPU 4th /5th Gen Intel Haswell /Broadwell U-series Processor
Chipset Intel? SoC
Graphic Intel HD Graphics
Memory 1 x DDR3L SO-DIMM 1600MHz
Storage Disk Driver 1 x mSATA
1 x SATA 3.0
Driver Support Windows7 32/64 bit Windows10 32/64 bitLinux

I/O

Serial Ports 1 x RS232
USB Ports 4 x USB2.0, 2 x USB3.0
HDMI Port 1 x HDMI1.43840 x 2160@30Hz
Mini-HDMI 1 x mini-HDMI3840 x 2160@30Hz
SPDIF 1 x SPDIF_OUT & LINE OUT in one
MIC IN 1 x MIC IN
Ethernet 2 x 2.5GbE RJ45 Intel i225V
Power Port Realtek RTL8111H, 2 x 10/100/1000Mbps
Expansion Slot 1 x miniPCIe for Wi-Fi

Power

Power Indicator N/A
Power Input DC 12-19V
Power Consumption TBA

Operation/Mechanical

Operating Temperature -10~60
Storage Temperature -20~80
Humidity Range 10%~90%  @30 Non Condensing
Housing Material Aluminum Die-Casting
Housing Dimension (L W H) 191mm x 34mm x 151mm
Net Weight 1kg
DIN-Rail Mounting Bracket Optional

Order Information

Industrial DIN-RAIL Box PC with Intel Core i5-4200U ITD-MNPC-4200U-5612
Industrial DIN-RAIL Box PC Box PC with Intel i3-5005U ITD-MNPC-5005U-5612
Industrial DIN-RAIL Box PC with Intel i5-5200U ITD-MNPC-5200U-5612
Industrial DIN-RAIL Box PC Box PC with Intel i7-5500U ITD-MNPC-5500U-5612
