Products > Industrial Embedded Box Computers > x86 Based Industrial Embedded Box PCs  >  Industrial Fanless Embedded Box PC I5I7 IBC7

OVERVIEW

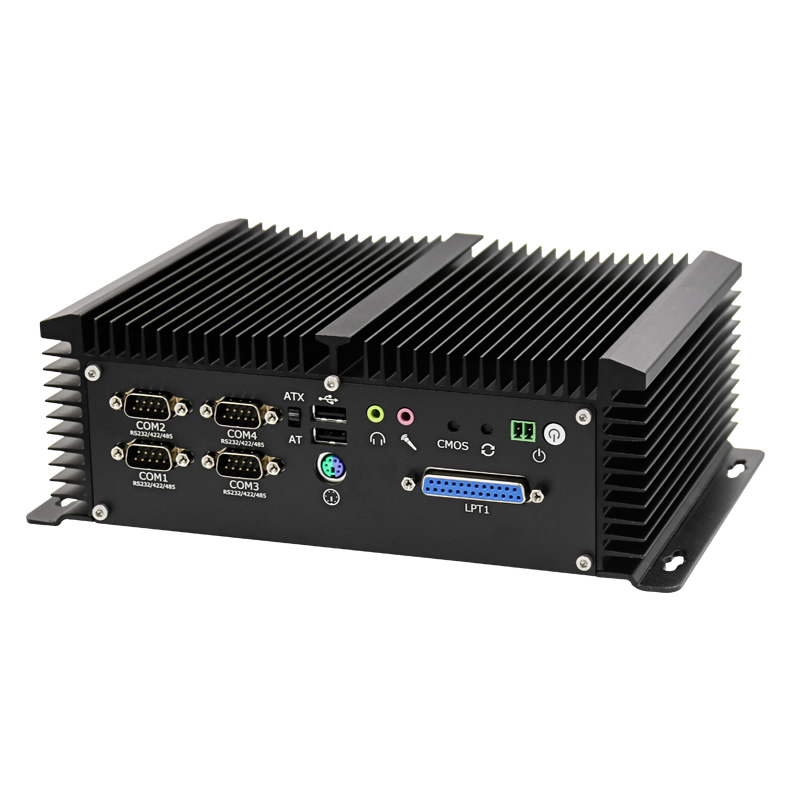

An Industrial fanless Embedded Box PC comet lake by ITD are mid-sized embedded box PCs, designed for edge computing, machine vision and other industrial applications. They offer a wide range of I/O ports including LAN, USB, COM, Audio, Video, and GPIO. With rich I/O and expansion options, these fanlesss computers can power a stand-alone piece of equipment, run demanding software applications, or be embedded into a greater digital platform as powerful IoT hubs and offers a number of key advantages over traditional, actively cooled systems. Our fanless, solid state mini PCs leverage advanced passive cooling technology that enable cooling without a fan and without vents. They also utilize SSD storage, making for reliable, totally silent computers with no moving parts. Fanless PCs are more resistant to vibration and they excel in dirty and dusty environments.

Industrial Fanless Embedded Box PC Comet Lake
Model Name	ITD-MNPC-xxxxxU
IP Rating	N/A
PC Systems
CPU	Onboard Intel? Celeron? 4th/5th/6th/7th/8th/10th i3/i5/i7 CPU
Chipset	Intel? SoC
Memory	4th/5th----------DDR3L SODIMM x1, Up to 8GB 6th/7th/8th/10th----DDR4 SODIMM x2, Up to 32GB
Storage Disk Driver	1x MSATA 1x M.2 NVME 2280 1x HDD/SSD
Driver Support	Windows? 10/11, WES 10, LINUX
Watchdog Timer	255 Levels
I/O
Serial Ports	12 x COM（6 x BD9 RS232 COM (4*RS485/RS442), 6 x 3 wire COM )
USB Ports	4 x USB3.0, 2 x USB2.0
Video Port	1 x HDMI Output, 1 x VGA Output
PS2	1 x PS2
GPIO	14 x GPIO (7 x input, 7x output)
Audio	1 x Audio, 1 x Min-in
Antenna Interface	2 x Antenna interface for WIFI/3G/4G
Button	1 x Power Button, 1 x Reset Button, 1 x Clear CMOS Button
Ethernet	2 x 2.5GbE RJ45 Intel i225V
Power Port	1 x DC9-36V input 1 x AT/ATX
Expansion Slot	Mini-PCIe x 1 full size with SIM Card for 3G/4G Mini-PCIe x 1 half size for WIFI/BLT
Power
Power Indicator	Green LED
Power Input	DC 9-36V
Power Consumption	TBA
Operation/Mechanical
Operating Temperature	-20~60℃
Storage Temperature	-30~70℃
Humidity Range	10%~90%  @30℃ Non Condensing
Housing Material	Aluminum Die-Casting
Housing Dimension (L × W × H)	248mm x 150mm x 83mm
Net Weight	1.3kg
Order Information
Industrial Box PC with Intel i5-4200U	ITD-MNPC-4200U
Industrial Box PC with Intel i5-4300U	ITD-MNPC-4300U
Industrial Box PC with Intel i7-4500U	ITD-MNPC-4500U
Industrial Box PC with Intel i7-4650U	ITD-MNPC-4650U
Industrial Box PC with Intel i5-5287U	ITD-MNPC-5287U
Industrial Box PC with Intel i3-6157U	ITD-MNPC-6157U
Industrial Box PC with Intel i5-6200U	ITD-MNPC-6200U
Industrial Box PC with Intel i7-6567U	ITD-MNPC-6567U
Industrial Box PC with Intel i3-7020U	ITD-MNPC-7020U
Industrial Box PC with Intel i3-7100U	ITD-MNPC-7100U
Industrial Box PC with Intel i5-7200U	ITD-MNPC-7200U
Industrial Box PC with Intel i5-7267U	ITD-MNPC-7267U
Industrial Box PC with Intel i7-7500U	ITD-MNPC-7500U
Industrial Box PC with Intel i5-8350U	ITD-MNPC-8350U
Industrial Box PC with Intel i7-8550U	ITD-MNPC-8550U
Industrial Box PC with Intel i5-8269U	ITD-MNPC-8269U
Industrial Box PC with Intel i5-8265U	ITD-MNPC-8265U
Industrial Box PC with Intel i7-8565U	ITD-MNPC-8565U
Industrial Box PC with Intel i7-8569U	ITD-MNPC-8569U
Industrial Box PC with Intel i5-10210U	ITD-MNPC-10210U
Industrial Box PC with Intel i7-10510U	ITD-MNPC-10510U
