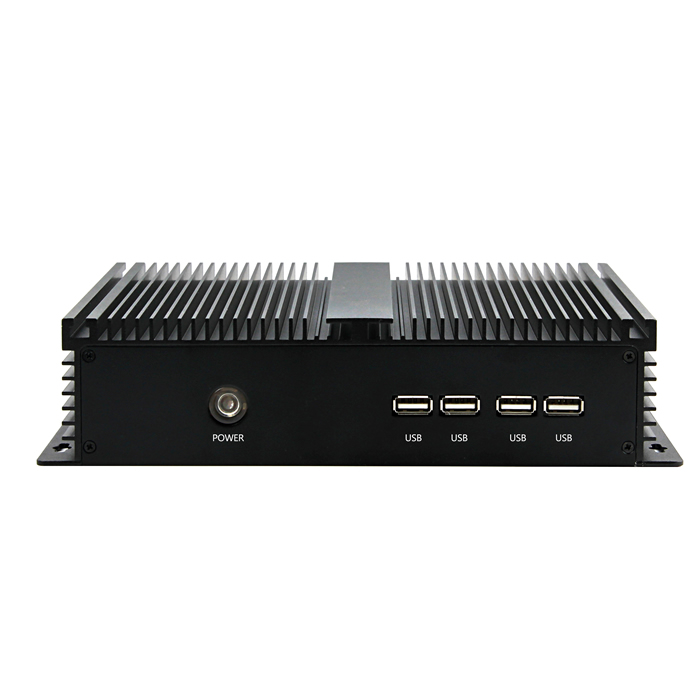

Industrial Embedded Box PC
BENEFITES
-IoT gateway ready for future requirements
-Energy-efficient and fan-less IPC Systems
-Intel Celeron N2830, 2M Cache, 2.16 GHz
-Maintenance-free with no rotating disk (HDD)
-Robust aluminum die-casting housing
-Power-optimized PC with 32- or 64-bit OS
-High system availability and data security
-High data transfer rates and redundancy
OVERVIEW
ITD Industrial Embedded Box PC is ultra-compact industrial computer for repetitive machines and infrastructures. It utilizes an Intel Core i3/i5/i7 Processor, on-board non-volatile DDR3L-1333 memory with fan-less. This delivers a great combination of performance, features and functionality at an affordable price, which offer real-time performance, compact footprint and lightweight aluminum die-cast housing and are easy to service, maintenance-free, space-saving and fan-less.OVERVIEW
ITD Industrial Embedded Box PC is ultra-compact industrial computer for repetitive machines and infrastructures. It utilizes an Intel Celeron Processor N2830, on-board non-volatile DDR3L-1333 memory and a standard SD card slot. This delivers a great combination of performance, features and functionality at an affordable price, which offer real-time performance, compact footprint and lightweight aluminum die-cast housing and are easy to service, maintenance-free, space-saving and fan-less.




Industrial Embedded Box PC

Model Name

ITD-MNPC-N2830

IP Rating

N/A


PC Systems



CPU

Intel Celeron N2830 Dual-Core 2.16GHz Processor

Chipset

Intel NM70

Graphics

Intel NM70 Express HD Graphics

Audio

MIC-IN, LINE-OUT

Memory

2GB, up to Max. 8GB

Storage

320GB SATA up Max. 1TB; 32GB SSD up to Max. 512GB (MSATA Supported)

Driver Support

Windows CE/XP/7/8/10, Linux,


I/O



Serial Ports

6 x COM

USB Ports

6 x USB2.0, 2 X USB3.0

HDMI Port

1 x HDMI

VGA Port

1 x VGA

TF Card Slot

1 x TF Card Slot

SD Card Slot

1 x SD Card Slot

Mini PCIe

N/A

Audio

MIC-IN, LINE-OUT

Communication (3G/4G, WIFI)

Optional

LAN

1 x 10/100/1000Mbps Ethernet

Power Port

1 x DC 12V Input (1 x ON/OFF Power Switch)


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

TBA


Operation/Mechanical



Operating Temperature

-10~60

Humidity Range

20%~90% (Non Condensing)

Housing Material

Aluminum Die-Casting

Housing Dimension (L W H

216mm x 200mm x 55mm
