15 inch High Brightness Full IP65/IP66 Touchscreen LCD Monitor
BENEFITES
- Exceptional quality and highly engineered industrial heavy duty monitors
- Optional touchscreens like resistive and PCAP
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures with cooling fin
- IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
- High brightness from 1000nits to 1500nits optional
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW

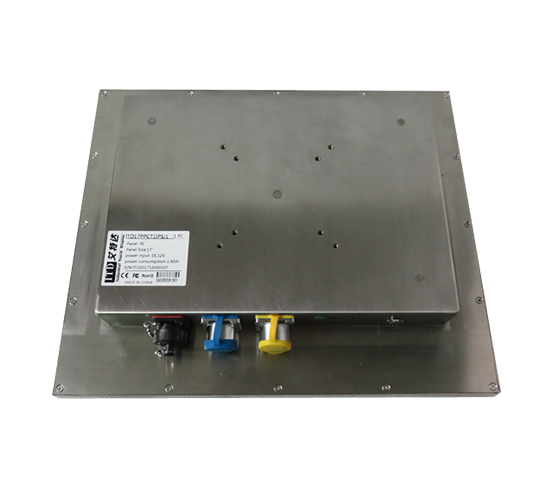

ITD full IP65 sunlight readable LCD touchscreen displays are fully-integrated units that combine high brightness TFT LCD, touch screen, waterproof and dustproof, fully sealed stainless steel chassis or aluminum alloy chassis and I/O with IP65/ NEMA 4 Ingress protection rating designed to be tough and rugged. The enclosure features easy-to clean stainless steel/aluminum alloy construction that is corrosion resistant. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. They are built for demanding applications with high industrial requirement, such as outdoor kiosk, beverage, marine, oil/gas, pharmaceutical and tobacco industries for operator control and monitoring for semi-outdoor and outdoor applications.




Full IP65/IP66
High Brightness Touchscreen Monitor

Model Name

ITD15CMG1IPHBA1

IP Rating

Full IP65/IP66(IP67 optional)


LCD Panel

Screen Diagonal (Inch/cm)

15

Display Active Screen Size (mm)

304.128(H) 228.096(V)

Aspect Ratio

4:3

Physical Resolution

1024768

Maximum Resolution Supported

19201080

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

700:1

View Angels

85/85/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime


Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

1 VGA

N/A

1 HDMI(Optional)

Audio

N/A

Touch Connector

1 USB(Optional)

Power Connector

1 DC2.0


Operation



Operating Temperature Range

-10~60C (-20~70C Optional)



Humidity Range (RH)

10-90%



24/7/365 Use

Supported




Power

Power Indicator

N/A

Power Input

DC 12V

Power Consumption

30W


Order Information

151000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing

ITD15CMT1IPHBA1

151000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing

ITD15CMT5IPHBA1

151000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing

ITD15CMT1IPHBS1

151000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing

ITD15CMT5IPHBS1

151000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing

ITD15CMG1IPHBA1

151000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing

ITD15CMG1IPHBS1
