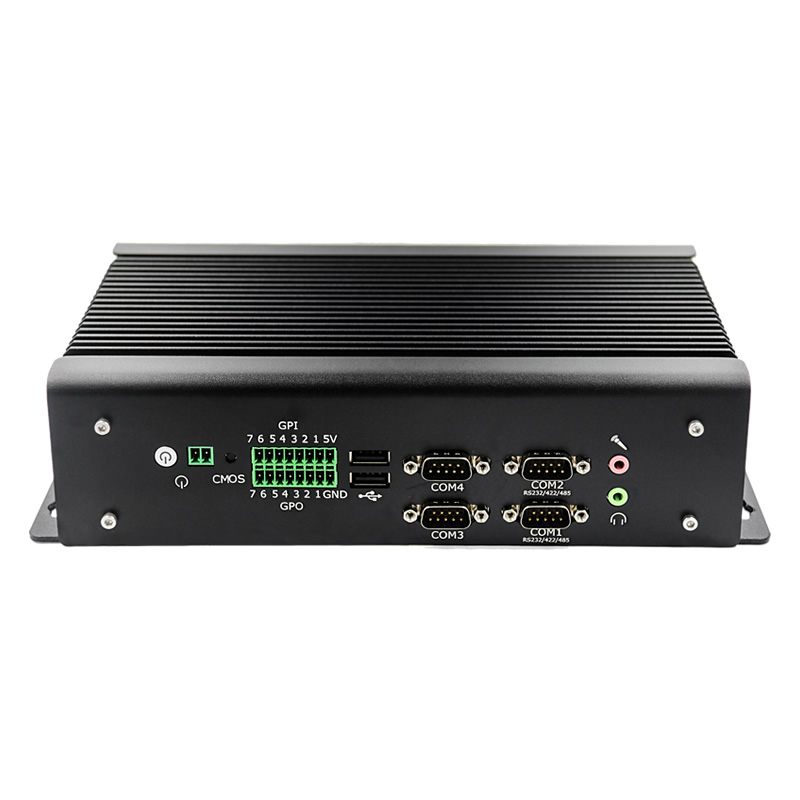

Industrial Fanless Embedded Box PC Intel I5 I7 Coffee lake
BENEFITES
- IoT gateway ready for future requirements
- Energy-efficient and fan-less IPC Systems
- Onboard Intel? Celeron? i5/i7 CPU
- DDR4 SODIMM x2Up to 32GB
- 6 x RS-232 COM (2*RS485/RS442)
- 2 x GbE RJ45 Intel? i225V
- Wide DC Support 9 ~ 36V
- Watchdog, one-key restore, diskless startup
- Maintenance-free with no rotating disk (HDD)
- Interface of remote control for ON/OFF
- Robust aluminum die-casting housing
- High system availability and data security
- High data transfer rates and redundancy
- CE, FCC, RoHS Compliance
OVERVIEW
An Industrial fanless Embedded Box PC by ITD are mid-sized embedded box PCs, designed for edge computing, machine vision and other industrial applications. They offer a wide range of I/O ports including LAN, USB, COM, Audio, Video, and GPIO. With rich I/O and expansion options, these fanlesss computers can power a stand-alone piece of equipment, run demanding software applications, or be embedded into a greater digital platform as powerful IoT hubs and offers a number of key advantages over traditional, actively cooled systems. Our fanless, solid state mini PCs leverage advanced passive cooling technology that enable cooling without a fan and without vents. They also utilize SSD storage, making for reliable, totally silent computers with no moving parts. Fanless PCs are more resistant to vibration and they excel in dirty and dusty environments.


Industrial Fanless Embedded Box PC

Model Name ITD-MNPC-I5/I7-xxxxxH
IP Rating N/A

PC Systems

CPU Onboard Intel? Celeron? 8th/9th/10th i5/i7 CPU
Chipset Intel? SoC
Memory DDR4 SODIMM x2, up to 32G B
Storage Disk Driver 1x MSATA
1x M.2 NVME 2280
1x HDD/SSD
Driver Support Windows? 10/11, WES 10, LINUX
Watchdog Timer 255 Levels

I/O

Serial Ports 6 x DB9 COM (2 x RS485/RS422)
USB Ports 4 x USB3.0, 2 x USB2.0
HDMI Port 3 x HDMI Output
GPIO 14 x GPIO (7 x input, 7x output)
Audio 1 x Audio1 x Min-in
Antenna Interface 2 x Antenna interface for WIFI/3G/4G
Button 1 x Power Button Button, 1 x Reset Button, 1 x Clear CMOS Button
Ethernet 2 x 2.5GbE RJ45 Intel i225V
Power Port 1 x DC9-36V input
Expansion Slot Mini-PCIe x 1 full size with SIM Card for 3G/4G
Mini-PCIe x 1 half size for WIFI/BLT

Power

Power Indicator Green LED
Power Input DC 9-36V
Power Consumption TBA

Operation/Mechanical

Operating Temperature -20~60
Storage Temperature -30~70
Humidity Range 10%~90%  @30 Non Condensing
Housing Material Aluminum Die-Casting
Housing Dimension (L W H) 240mm x 150mm x 65mm
Net Weight 2kg

Order Information

Industrial Box PC with Intel i5-8400H ITD-MNPC-8400H
Industrial Box PC with Intel i7-8750H ITD-MNPC-8750H
Industrial Box PC with Intel i5-9400H ITD-MNPC-9400H
Industrial Box PC with Intel i7-9750H ITD-MNPC-9750H
Industrial Box PC with Intel i5-10200H ITD-MNPC-10200H
Industrial Box PC with Intel i7-10750H ITD-MNPC-10750H
