OVERVIEW
A Industrial fanless Embedded Box PC by ITD are mid-sized embedded box PCs, designed for edge computing, machine vision and other industrial applications. They offer a wide range of I/O ports including LAN, USB, COM, Audio, Video, and GPIO. With rich I/O and expansion options, these fanlesss computers can power a stand-alone piece of equipment, run demanding software applications, or be embedded into a greater digital platform as powerful IoT hubs and offers a number of key advantages over traditional, actively cooled systems. Our fanless, solid state mini PCs leverage advanced passive cooling technology that enable cooling without a fan and without vents. They also utilize SSD storage, making for reliable, totally silent computers with no moving parts. Fanless PCs are more resistant to vibration and they excel in dirty and dusty environments.

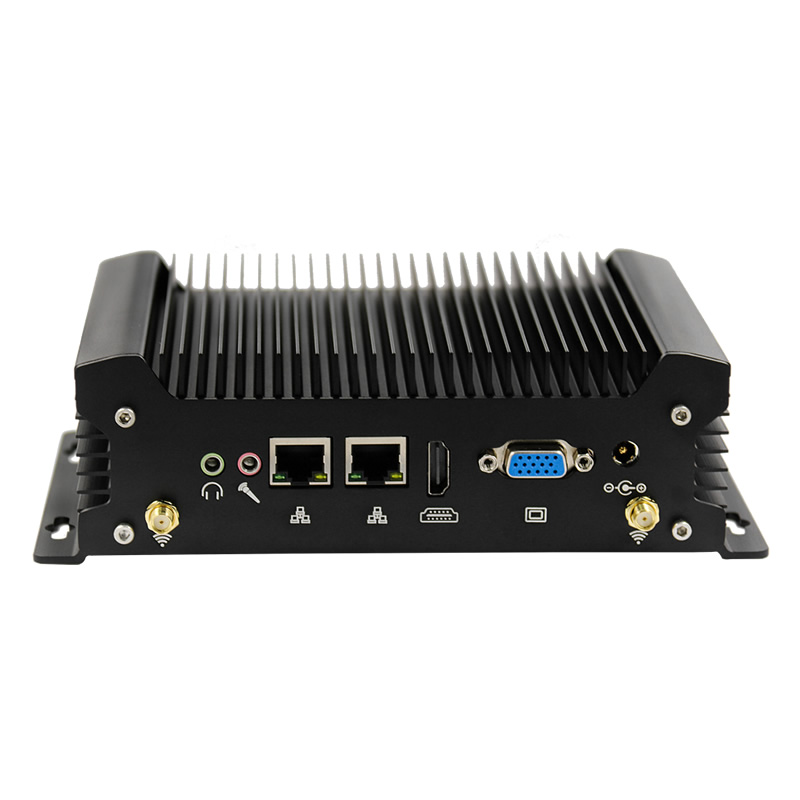

Industrial Fanless Embedded Box PC
Model Name	ITD-MNPC-I3/I5/I7-xxxxxx
IP Rating	N/A
PC Systems
CPU	Intel? Core i3/i5/i7 4th,6th,7th,8th,10th optional
Chipset	Intel? SoC
Memory	4th: DDR3L SODIMM x1，Up to 8GB 6/7/8th: DDR4 SODIMM x1，Up to 16GB 8/10th: DDR4 SOIMM x2，Up to 32GB
Storage	4th: 1x MSATA 6/7/8/10th: 1x M.2 2280 1x 2.5寸 HDD/SSD
Driver Support	Windows? 7/8/10，WES 7/10，LINUX, Windows 11
Watchdog Timer	255 Levels
I/O
Serial Ports	2 x DB9 COM
USB Ports	4 x USB3.0, 4 x USB2.0
HDMI Port	1 x HDMI Output
VGA Port	1 x VGA Output
Audio	1 x Audio，1 x Min-in
Antenna Interface	2 x Antenna interface for WIFI/3G/4G
Button	1 x Power Button
Ethernet	2 x GbE RJ45 Realtek 8111H
Power Port	1 x DC12-19V input
Expansion Slot	Mini-PCIe x1 full size/half size with SIM Card for 3G/4G or wifi/BLT
Power
Power Indicator	Green LED
Power Input	DC 12-19V
Power Consumption	TBA
Operation/Mechanical
Operating Temperature	-20~70℃
Storage Temperature	-30~70℃
Humidity Range	10%~90%  @30℃ Non Condensing
Housing Material	Aluminum Die-Casting
Housing Dimension (L × W × H)	193.9mm x 137mm x 57.2mm
Net Weight	1kg
Order Information
Industrial Box PC with Intel i5-4278U	ITD-MNPC-4278U-IBC8
Industrial Box PC with Intel i7-4578U	ITD-MNPC-4578U-IBC8
Industrial Box PC with Intel i3-6157U	ITD-MNPC-6157U-IBC8
Industrial Box PC with Intel i5-7287U	ITD-MNPC-7287U-IBC8
Industrial Box PC with Intel i5-7360U	ITD-MNPC-7360U-IBC8
Industrial Box PC with Intel i5-8250U	ITD-MNPC-8250U-IBC8
Industrial Box PC with Intel i5-8260U	ITD-MNPC-8260U-IBC8
Industrial Box PC with Intel i7-8565U	ITD-MNPC-8565U-IBC8
Industrial Box PC with Intel i3-10110U	ITD-MNPC-10110U-IBC8
Industrial Box PC with Intel i5-10210U	ITD-MNPC-10210U-IBC8
Industrial Box PC with Intel i7-10510U	ITD-MNPC-10510U-IBC8
