Products > Industrial Embedded Box Computers > IP66/IP67/IP69K Rugged Waterproof Computer  >  Industrial IP67 fanless Box PC Intel J4125 J6412

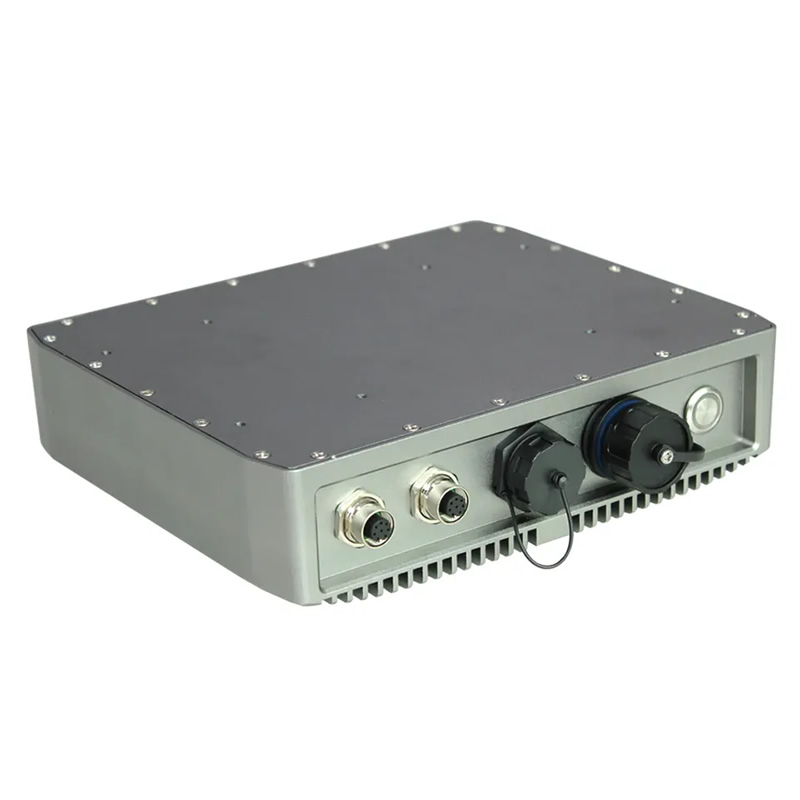

Industrial IP67 fanless Box PC Intel J4125 J6412
BENEFITES
- Rugged Construction: Industrial IP67 fanless box PC is built with durable materials such as aluminum or stainless steel and designed to withstand shock, vibration, and extreme temperatures.
- Fanless Design: The Industrial IP67 fanless box PC is designed with a fanless cooling system to prevent dust and other particles from entering the system and causing damage.
- Waterproof and Dustproof: The Industrial IP67 fanless box PC is sealed to protect against water, dust, and other environmental hazards. It can withstand immersion in water up to a certain depth for a specified amount of time, and is completely protected against dust.
- High-Performance Computing: The Industrial IP67 fanless box PC is designed to deliver high-performance computing capabilities with powerful processors and graphics cards that can handle demanding applications and tasks.
- Multiple Connectivity Options: The Industrial IP67 fanless box PC has multiple connectivity options such as USB, Ethernet, and Wi-Fi, allowing users to connect to various devices and networks.
- Expandability: The Industrial IP67 fanless box PC is designed to be expandable, with options for adding more storage or RAM.
- Operating System: The Industrial IP67 fanless box PC comes pre-installed with an operating system, such as Windows or Linux, to enable users to perform various computing tasks.
- Mounting Options: The Industrial IP67 fanless box PC can be mounted in various ways, such as wall-mounted or DIN-rail mounted, to provide flexibility in installation and use.
- Power Input Protection: The Industrial IP67 fanless box PC often features power input protection, protecting the device from power surges or power outages.
- Wide Temperature Range: Industrial IP67 fanless box PC typically has a wide temperature range and can operate in temperatures ranging from -20¡ãC to 60¡ãC.
- CE, FCC, RoHS Compliance
OVERVIEW
ITD¡¯s waterproof full IP67 box computer is designed to withstand harsh environmental conditions such as exposure to water, dust, and extreme temperatures. It is rugged and reliable computing solution that can be used in a wide range of applications, including industrial automation, outdoor surveillance, and marine environments. IP67 rating indicates that the box computer is completely protected against dust and can withstand immersion in water up to a certain depth for a specified amount of time. Rugged IP67 waterproof box computer is a robust and durable computing solution that is designed to withstand harsh environments and extreme conditions. It is often used in industrial, military, and outdoor applications where reliability and durability are crucial.


Rugged Waterproof Box Computer

Model Name ITD-MNPC-IPJ4125/IPJ6412
IP Rating IP65/IP66/IP67/IP69K

PC Systems

CPU Intel? Celeron J4125 Quad Core 2.0GHz, J6412 Quad Core 2.0GHz
Chipset Intel? SoC
Memory DDR4 SODIMM¡Á1, Up to 16GB
Storage 1 ¡Á M.2 2242/2260/2280 SATA
1 ¡Á SATA (2.5'' SATA )
1 ¡Á M.2 2280 NVME
Driver Support Windows? 7/8/10, WES 7/10, LINUX, Windows 11
Watchdog Timer 255 Levels

Waterproof I/Os

Serial Ports 2 ¡Á DB9 COM (optional)
USB Ports 2 ¡Á USB3.0, 2 x USB2.0 (optional)
HDMI Port 1 ¡Á HDMI Output (optional)
VGA Port 1 ¡Á VGA Output (optional)
Wireless Network WIFI, Bluetooth (optional)
Antenna Interface 2 ¡Á Antenna interface for WIFI/3G/4G (optional)
Button 1 ¡Á Power Switch
Ethernet 1 ¡Á RJ45
Power Port 1 ¡Á DC12-24V input (DC9-36V input optional)

Power

Power Indicator Green LED
Power Input DC 12-24V
Power Consumption 10W

Operation/Mechanical

Operating Temperature -20~60¡æ
Storage Temperature -30~70¡æ
Humidity Range 5%~95%  @40¡æ Non Condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Housing Material Aluminum Die-Casting
Housing Dimension (L ¡Á W ¡Á H) 220mm x 185mm x 55mm
Net Weight 1.8kg

Order Information

Rugged Waterproof Box Computer with Intel J4125 ITD-MNPC-IPJ4125
Rugged Waterproof Box Computer with Intel J6412 ITD-MNPC-IPJ6412
