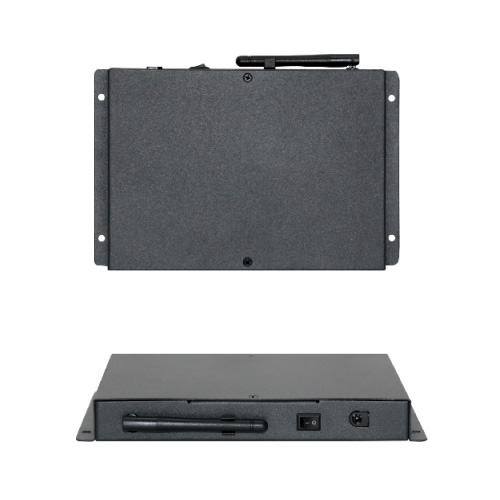

RK3288 Android Media Playerbox for Digital Signage
BENEFITES
- High-performance hardware: Android media players for digital signage typically come equipped with powerful processors, high-speed memory, and dedicated graphics processing units (GPUs) to handle high-resolution content.
- Flexible connectivity: These devices typically offer a range of connectivity options, including Wi-Fi, Ethernet, Bluetooth, and USB, making it easy to integrate them into a variety of digital signage setups.
- Remote management: Android media players for digital signage usually come with software that allows for remote content management, scheduling, and updating, making it easy to manage multiple devices from a central location.
- Customizable interface: These devices offer a range of customization options, such as the ability to create custom playlists, schedules, and layouts, and support for various media formats.
- Advanced features: Some Android media players for digital signage offer advanced features such as touch-screen support, interactive content, and data analytics.
- Cost-effective: Android media players for digital signage are typically more affordable than traditional digital signage hardware, making them a cost-effective solution for creating dynamic and engaging digital signage displays.y
- CE, FCC, RoHS Compliance
OVERVIEW
ITD¡¯s Android media player for digital signage is an Android-based device that is designed specifically for use in digital signage applications. It is a compact and powerful device that can be easily integrated into a digital signage display or other media player hardware. Android media players for digital signage are optimized for playing high-resolution video content, graphics, and animations on large-format displays, such as those used in retail stores, airports, and other public places. They typically support a range of media formats and offer features such as content scheduling, remote management, and network connectivity. The Android playbox can be easily customized and integrated into a range of digital signage hardware, making it a cost-effective solution for creating dynamic and engaging digital signage displays.


RK3399 Android Media Player for Digital Signage

Model Name ITD-MNPC-RK3288
IP Rating N/A

PC Systems

CPU Rockchip RK3288, ARM, Quad-Core 1.8GHz Processor
GPU ARM Mali-T764
RAM DDR3 2GB, max. 4GB
ROM 8GB max. 32GB
OS Support Android 7.1/8

I/O

SD Card Slot 1 x SD Card Slot
USB Ports 1 x USB3.0, 1 x USB2.0
Video Port 1 x HDMI Output
Ethernet 1 x RJ45 (10/100/1000Mbps Ethernet)
Power Port 1 x DC12V input
Wireless Communication 1 x 4G SIM (Optional), 1 x WIFI (Built-in WiFi 802.11a/b/g/n/ac)

HDMI Display

Output Mode HDMI 480P, HDMI 576P, HDMI 720P 50Hz, HDMI 720P 60Hz, HDMI 1080I 50Hz, HDMI 1080I 60Hz, HDMI 1080P 24Hz, HDMI 1080P 50Hz, HDMI 1080P 60Hz

File Support

Video H.264, MKV, WMV9, MPEG 1/2/4, HD Divx, Xvid, RM/RMVB;
Image BMP/PNG/GIF/JPEG
Audio MP3,WMA,WAV,EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text txt

On-Screen Display Languages

English, French, German, Italian, Polish, Russian, Simplified Chinese, Spanish, Turkish, Arabic, Japanese, Traditional Chinese etc.

Power

Power Indicator N/A
Power Input DC 12V
Power Consumption 6.6W

Operation/Mechanical

Operating Temperature -10~50¡æ
Storage Temperature -20~60¡æ
Humidity Range 10%~90%  @30¡æ Non Condensing
Housing Material Metal
Housing Dimension (L ¡Á W ¡Á H) 217.6mm x 26.6mm x 140mm
Net Weight 0.8kg

Order Information

RK3288 Android Media Player ITD-MNPC-RK3288
